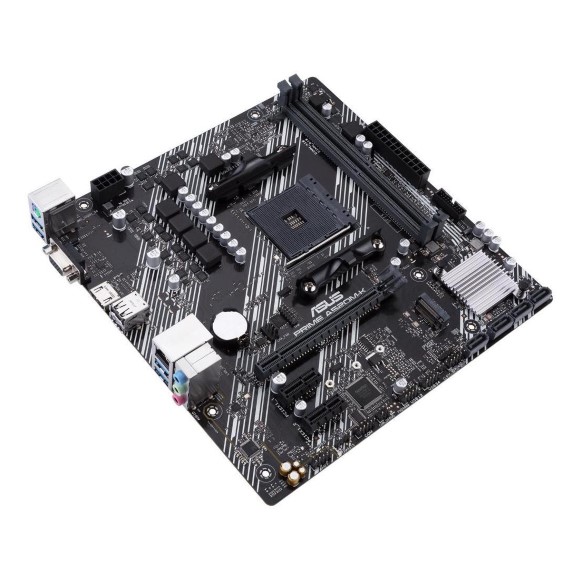

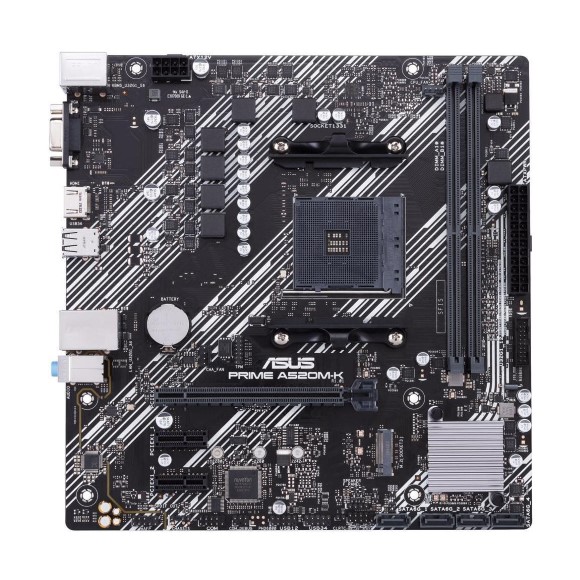

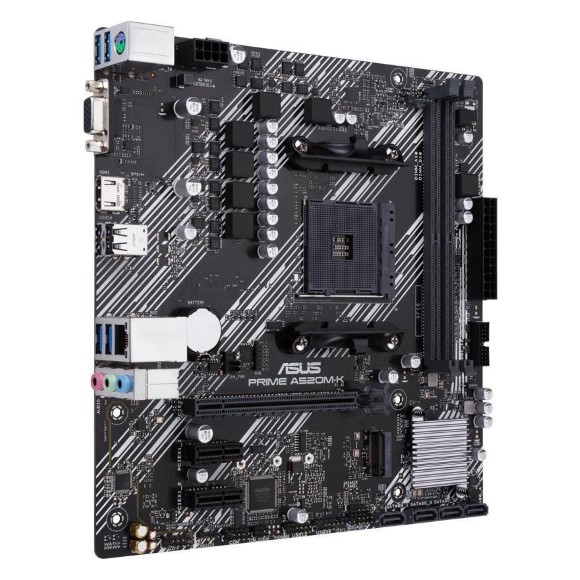

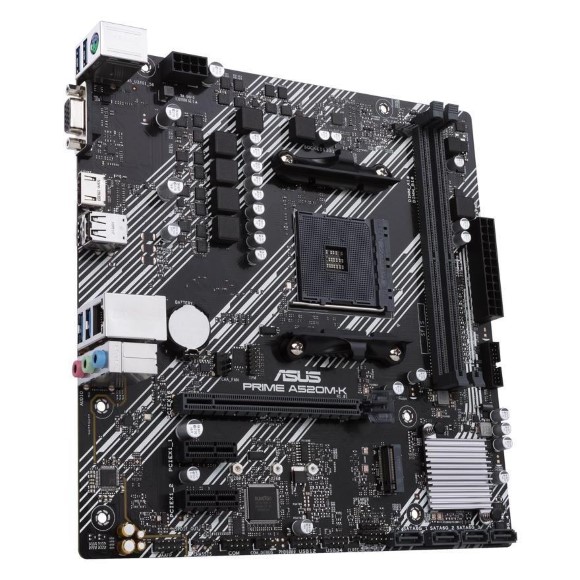

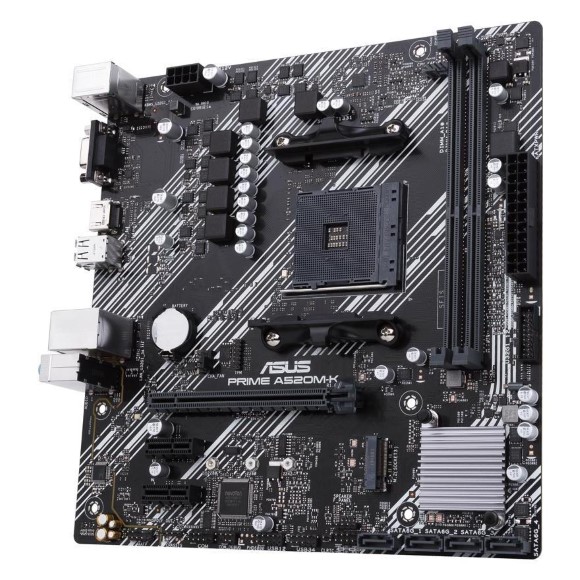

Asus Motherboard:Prime A520M-K

Rs. 20,499

<div class="KvSummary__productHeadiing__UPRDo KvSummary__themeWhite__21KI0">AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li><strong>AMD AM4 socket: </strong>Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors</li>
<li><strong>Comprehensive cooling:</strong> PCH heatsink and Fan Xpert</li>
<li><strong>Ultrafast connectivity:</strong> M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A</li>
<li><strong>5X Protection III:</strong> Multiple hardware safeguards for all-around system protection</li>
</ul>
</div>

100% Genuine

Cash on Delivery

Easy Returns

ASUS PRIME A520M-K AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard Price in Pakistan Specs

Model
Brand	ASUS
Model	PRIME A520M-K

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD Socket AM4 for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors* * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD A520

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory* * ECC memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)
PCI Express x1	AMD A520 Chipset 2 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
SATA RAID	0/1/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

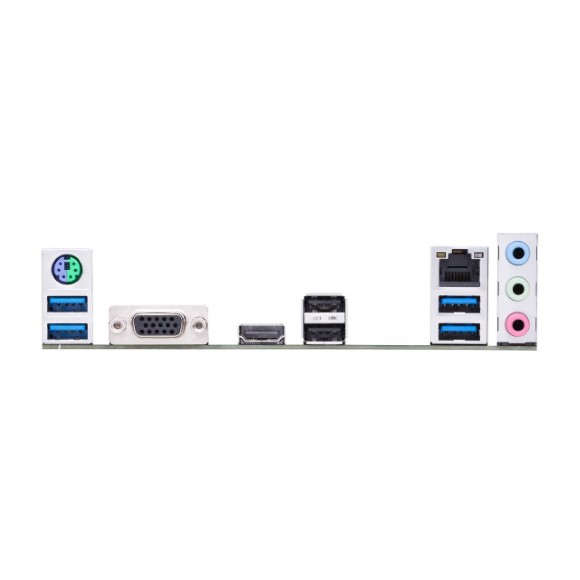

Back I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek RTL8111H 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	8.9" x 8.7"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Windows 11 Compatibility
Windows 11	Supported

Features
Features	Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

Packaging
Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual
