Asus Motherboard:Proart Z790-Creator Wifi
Rs. 160,000
<p class="product-title">ProArt Z790-Creator WiFi 6E LGA 1700 (Intel 12th&13th Gen) ATX Content Creator Motherboard (PCIe 5.0, DDR5, 2x Thunderbolt 4 Type-C, 10G&2.5G LAN, 4xM.2/NVMe, Front Panel USB 3.2 Gen2x2 Type-C Ports with 60W Fast Charging Support)</p>
<ul>
<li>ntel Z790</li>
<li>Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0, DDR5 and out of box Windows 11 ready.</li>
<li>Robust performance: 16+1 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors.</li>
<li>Comprehensive thermal design: Massive VRM heatsink, double-sided heatsink and M.2 aluminum heatsinks.</li>
<li>Extensive connectivity: Dual Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, 4x M.2 slots and front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support.</li>
<li>Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express.</li>
<li>ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control.</li>
<li>Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability</li>
</ul>
<ul>
<li>ntel Z790</li>
<li>Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0, DDR5 and out of box Windows 11 ready.</li>
<li>Robust performance: 16+1 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors.</li>
<li>Comprehensive thermal design: Massive VRM heatsink, double-sided heatsink and M.2 aluminum heatsinks.</li>
<li>Extensive connectivity: Dual Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, 4x M.2 slots and front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support.</li>
<li>Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express.</li>
<li>ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control.</li>
<li>Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability</li>
</ul>
100% Genuine
Cash on Delivery
Easy Returns
ASUS ProArt Z790-Creator WiFi 6E LGA 1700 (Intel 12th&13th Gen) ATX Content Creator Motherboard Price in Pakistan
| Brand | ASUS |
|---|---|
| Model | PROART Z790-CREATOR WIFI |
| Part Number | 90MB1DV0-M0AAY0 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Supports DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)* * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | Total supports 4 x M.2 slots Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. |
| SATA RAID | Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| Audio Chipset | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Marvell AQtion 10Gb Ethernet |
|---|---|
| Second LAN Chipset | 1 x Intel 2.5Gb Ethernet |
| Max LAN Speed | 10Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. |
| Bluetooth | Bluetooth v5.3** ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |

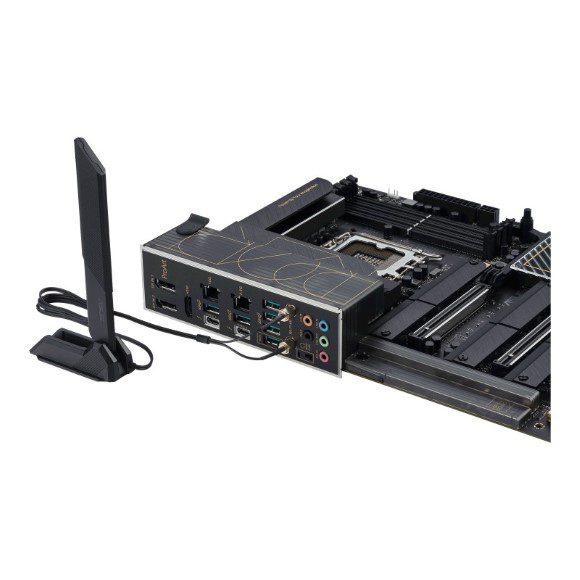

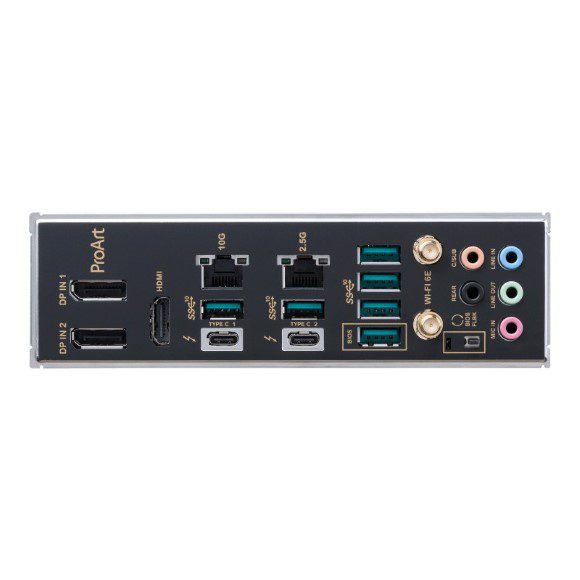

| Back I/O Ports | 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector |
| Windows 11 | Windows 11 64-bit, Windows 10 64-bit |
|---|
| Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 with AI Cooling II - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|---|

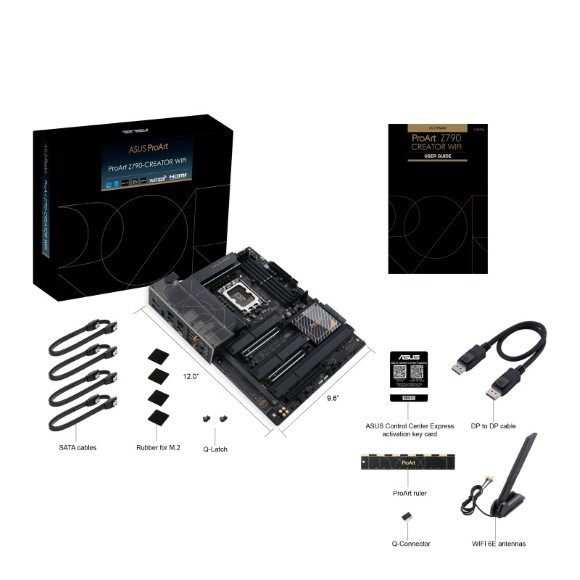

| Package Contents | Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Package(s) 1 x M.2 SSD Q-Latch package(s) 1 x Q-connector 1 x ProArt ruler 1 x Screw rubber cover Documentation 1 x ACC Express Activation Key Card 1 x User guide |
|---|
