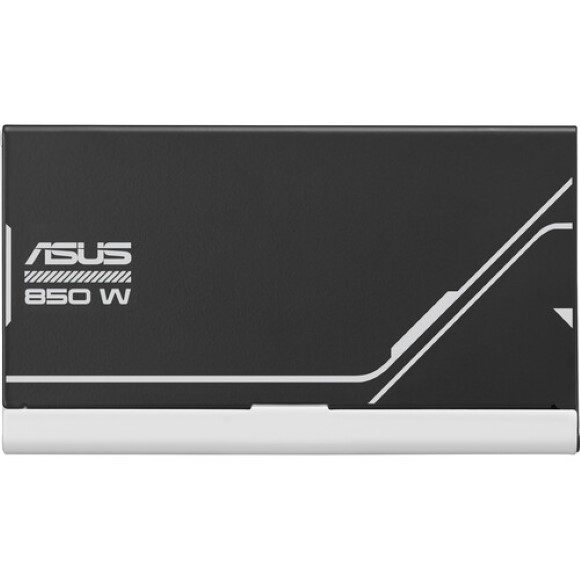

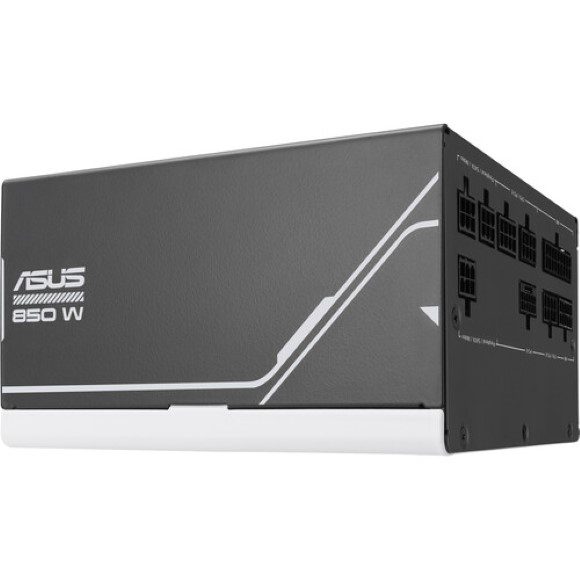

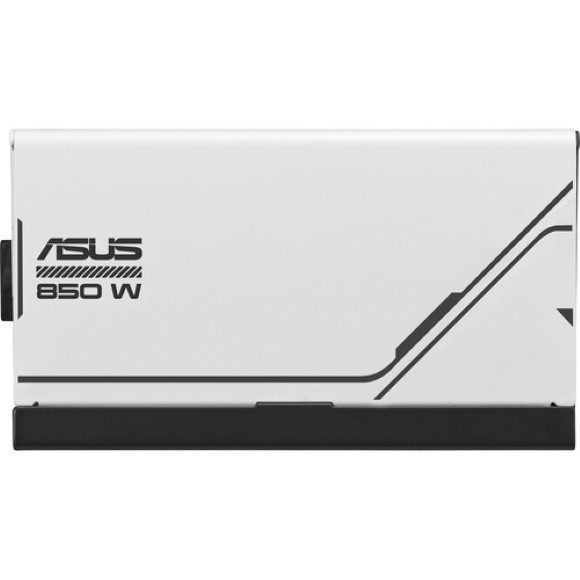

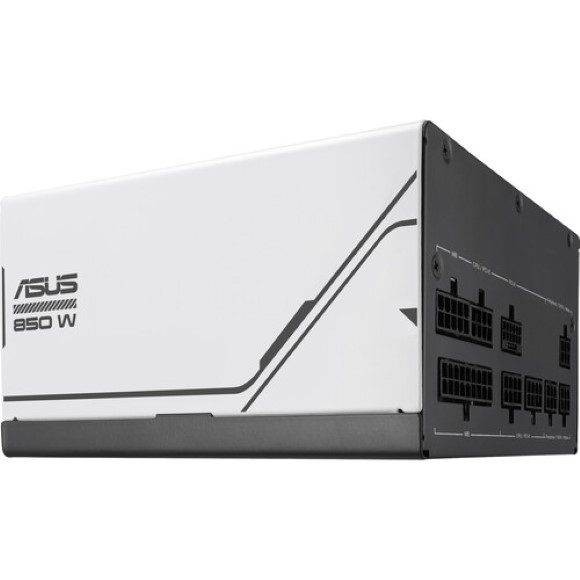

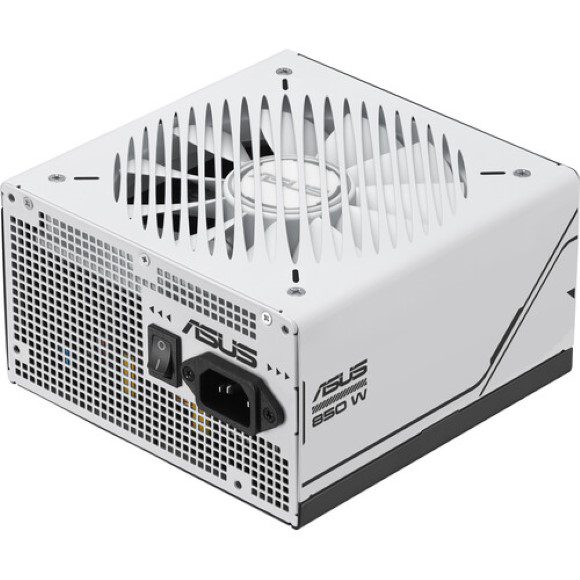

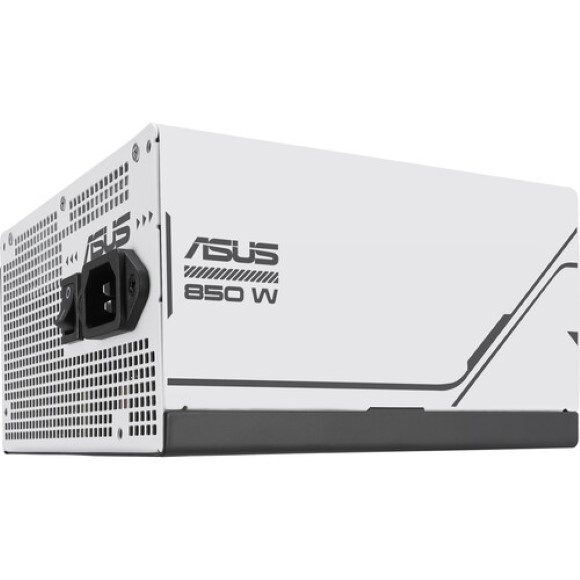

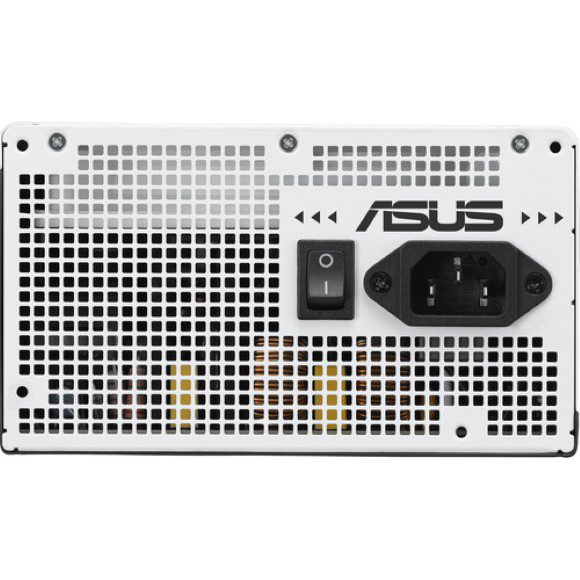

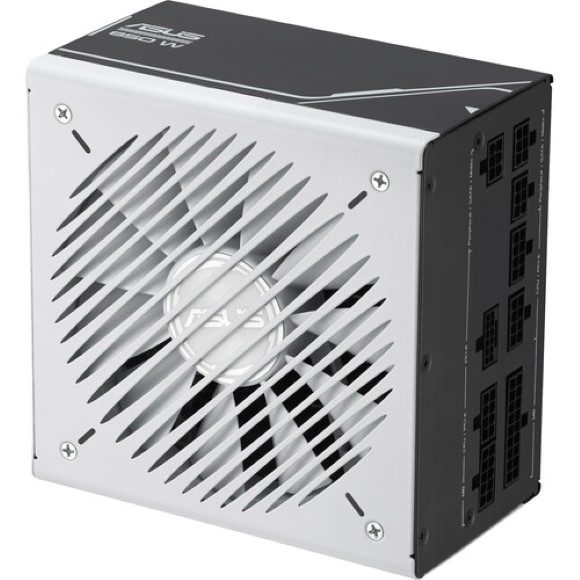

Asus Power Supply:Prime Ap-850W

Rs. 34,000

<ul class="list_OMS5rN7R1Z"><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">850W Single +12V Rail</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">135mm Internal Fan</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Intel ATX12V Version 3.0</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">16-Pin 12VHPWR Connector</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">3 x PCIe Connectors</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">5 x SATA Connectors</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">3 x Peripheral Connectors</li><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">80 Plus Gold Certification</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

ASUS Prime AP-850W 80 Plus Gold Modular Power Supply Price in Pakistan Specs

Connectivity

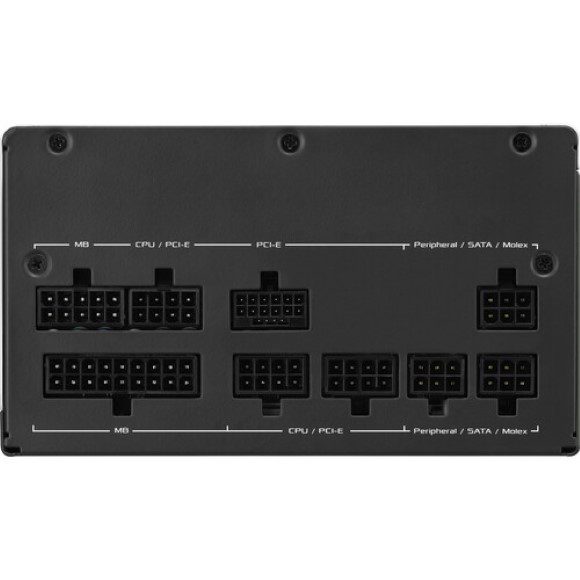

Total Connectors	1 x 20+4-Pin ATX Motherboard 2 x 4+4-Pin EPS CPU 1 x 16-Pin PCIe (12VHPWR) 3 x 8-Pin PCIe 5 x 15-Pin SATA 3 x 6-Pin SATA / Peripheral
Cable Design	Modular
PCIe Connector Distances	26.6" / 675 mm
SATA Connector Distances	15.7" / 400 mm 20.5" / 520 mm 25.2" / 640 mm
Peripheral Connector Distances	15.7" / 400 mm 21.7" / 550 mm 27.6" / 700 mm
ATX Connector Distance	24" / 610 mm
EPS Connector Distances	25.6" / 650 mm

Electrical

Total Wattage	850 W
Number of +12 V Rails	1
Combined Power for +12 V	846 W
Max Load for +12 V	70.5 A
Combined Power for +3.3/+5 V	110 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	12.5 W
Max Load for +5 Vsb	2.5 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes
Efficiency	91% at 25% Load 91% at 50% Load 90% at 75% Load 89% at 100% Load

Cooling

Fan Size	135 mm
Bearing Type	Ball

Environmental

Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	20 to 80%

Physical

Form Factor	ATX
Compliance	ATX 12 V v3.0
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications	RoHS
Dimensions	5.9 x 3.4 x 5.9" / 150 x 86 x 150 mm
Weight	3.3 lb / 1.5 kg
