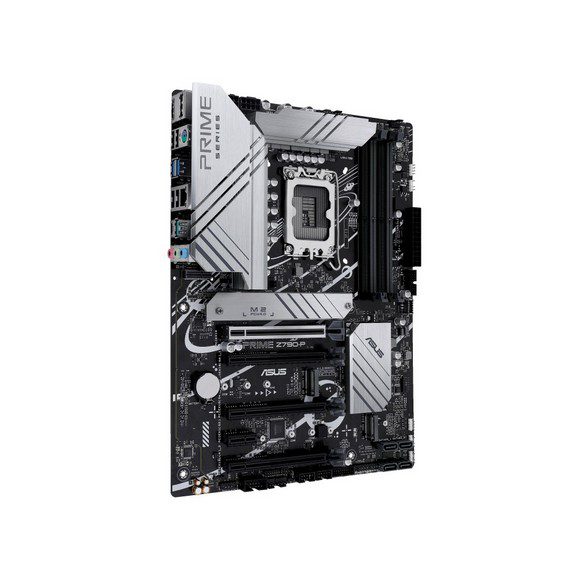

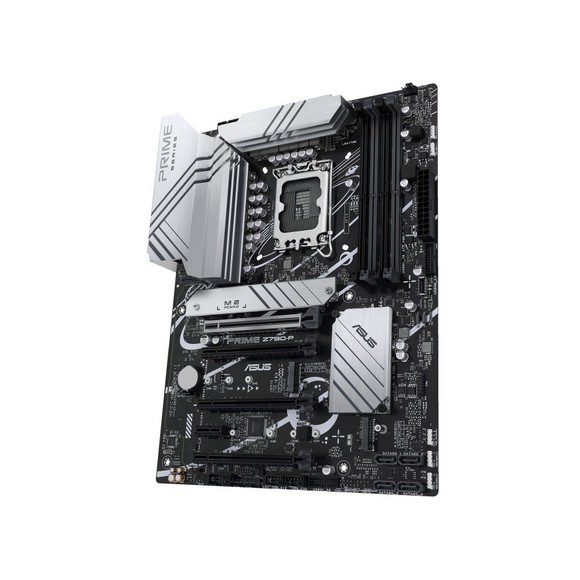

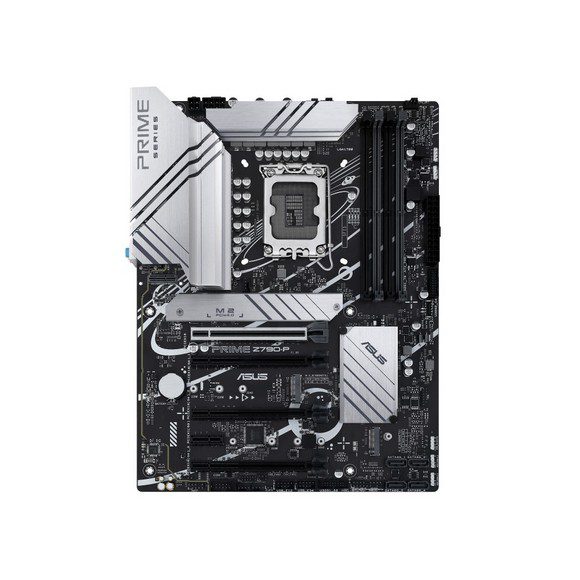

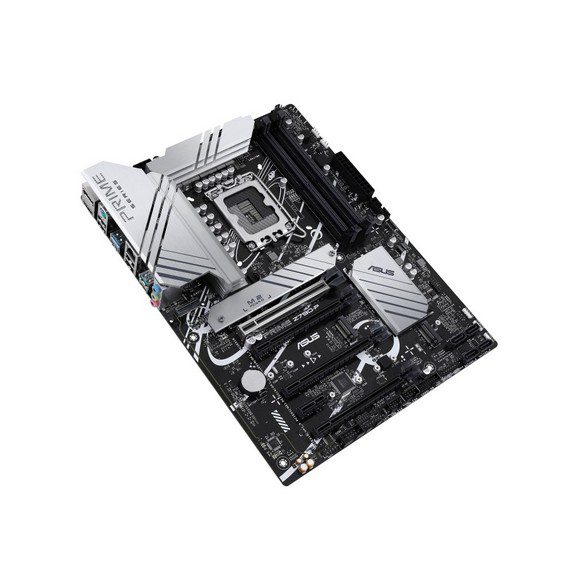

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard

Rs. 64,999

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
<ul>
<li>DisplayPort</li>
<li>HDMI®</li>
<li>2 x USB 2.0 ports (Type-A)</li>
<li>2 x USB 3.2 Gen 1 ports (Type-A)</li>
<li>2 x USB 2.0 ports (Type-A)</li>
<li>Realtek 2.5Gb Ethernet</li>
<li>1 x USB 3.2 Gen 2x2 Type-C®</li>
<li>1 x USB 3.2 Gen 2 port (Type-A)</li>
<li>3 x Audio Jacks</li>
<li>1 x Vertical M.2 slot (Key E)</li>
</ul>

100% Genuine

Cash on Delivery

Easy Returns

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard Price in Pakistan

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

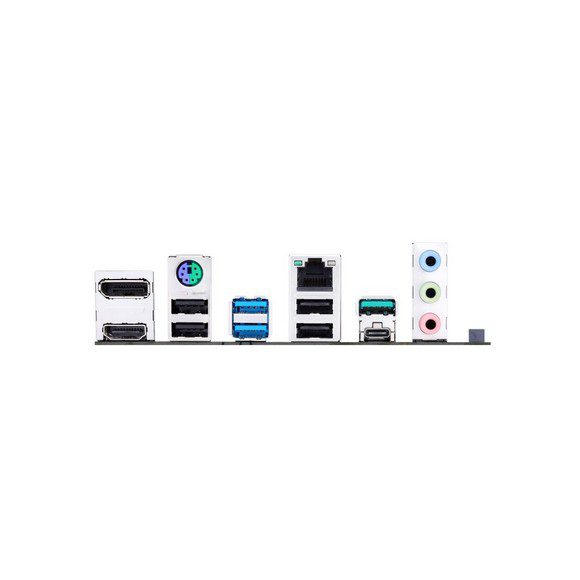

Back Panel I/O

USB	1 x USB-C (USB 3.2 Gen 2x2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0)
Thunderbolt	None
Display	1 x DisplayPort 1 x HDMI
Audio	3 x 1/8" / 3.5 mm
Ethernet / Controller	1 x Realtek 2.5Gigabit
PS/2	1 x Combo
Wi-Fi Antenna	2 x Connector

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4 x SATA III
M.2	2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2 x 4-Pin CPU 3 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU
Security	TPM Header
LED Header	4 x RGB
Audio	1 x S/PDIF
Diagnostics	Clear CMOS
Add-On	1 x Thunderbolt Header
Legacy	1 x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek S1220A (7.1-Channel)

Wireless

Bluetooth	5.2
Wi-Fi	Wi-Fi 6 (802.11ax) with MU-MIMO Support

Software

OS Compatibility

Windows 10 Windows 11 *As of September, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	ATX
Dimensions	12.0 x 9.2" / 30.5 x 23.4 cm

Packaging Info

Package Weight	3.665 lb
Box Dimensions (LxWxH)	13.4 x 10.7 x 2.8"
