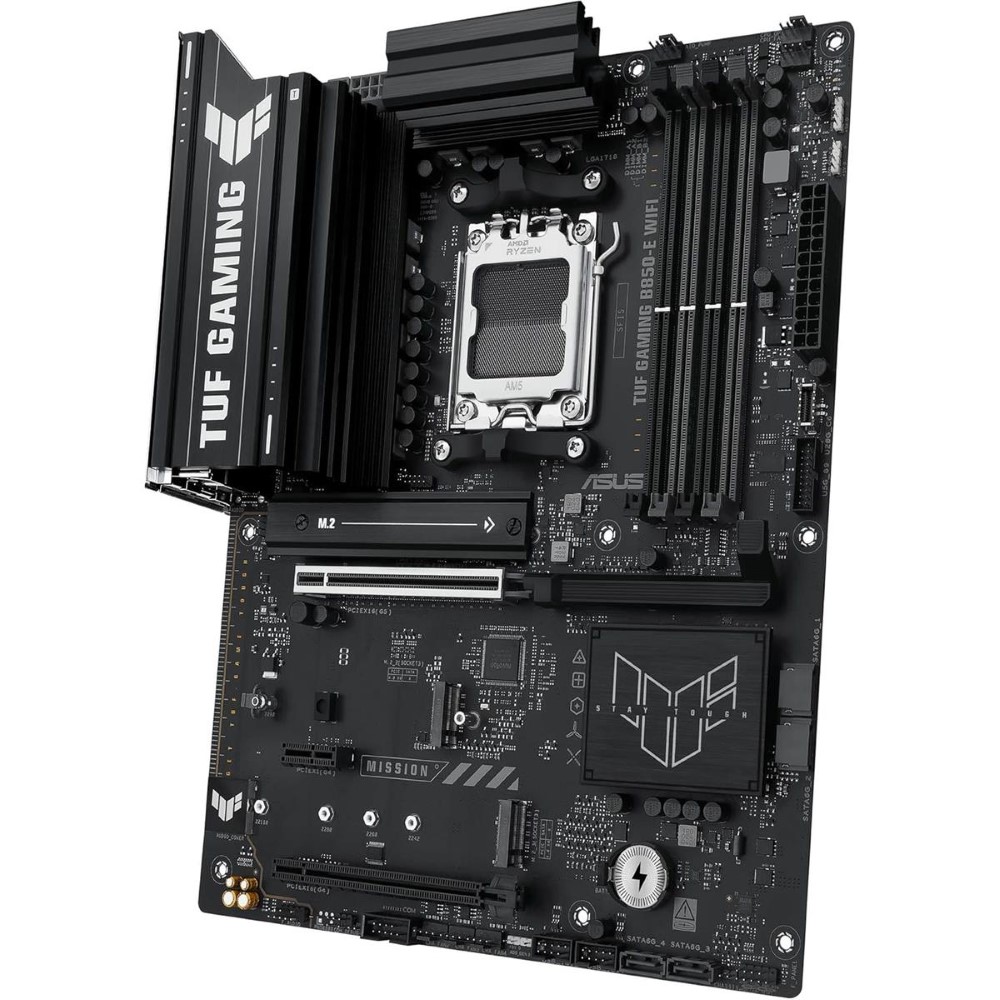

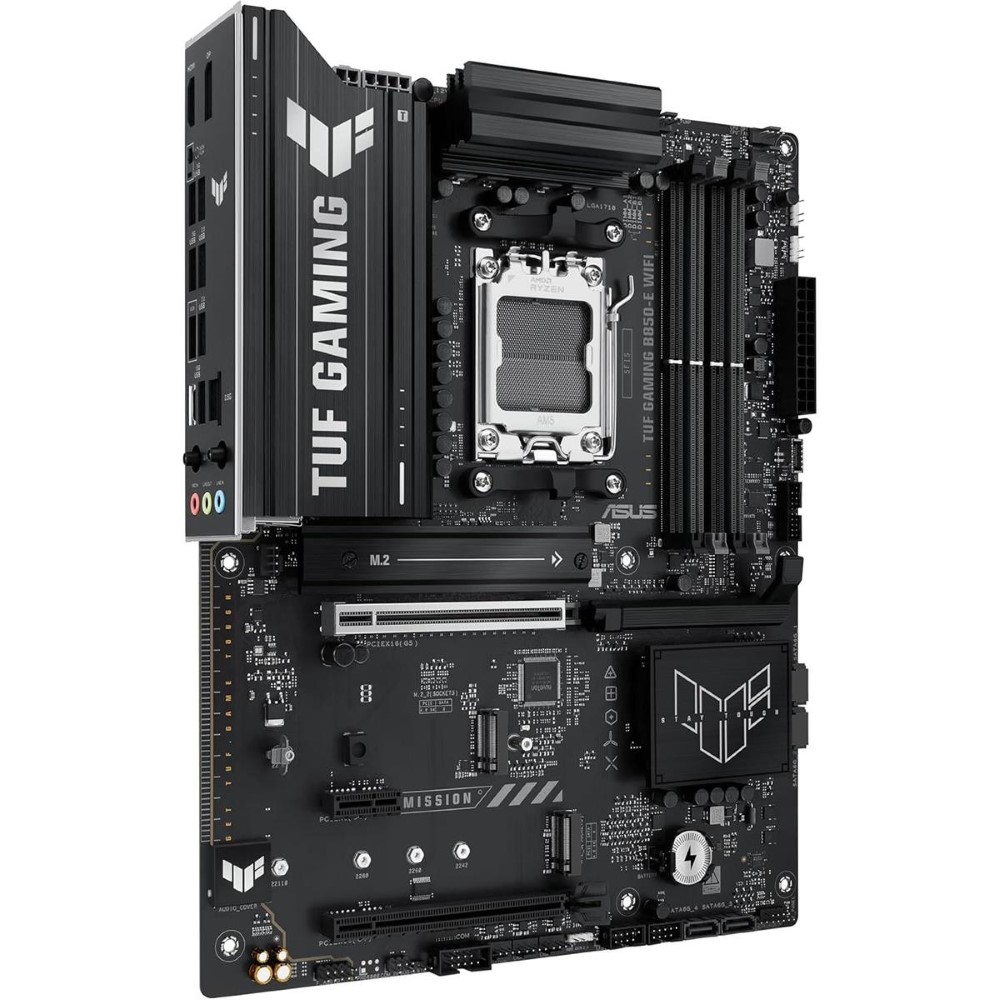

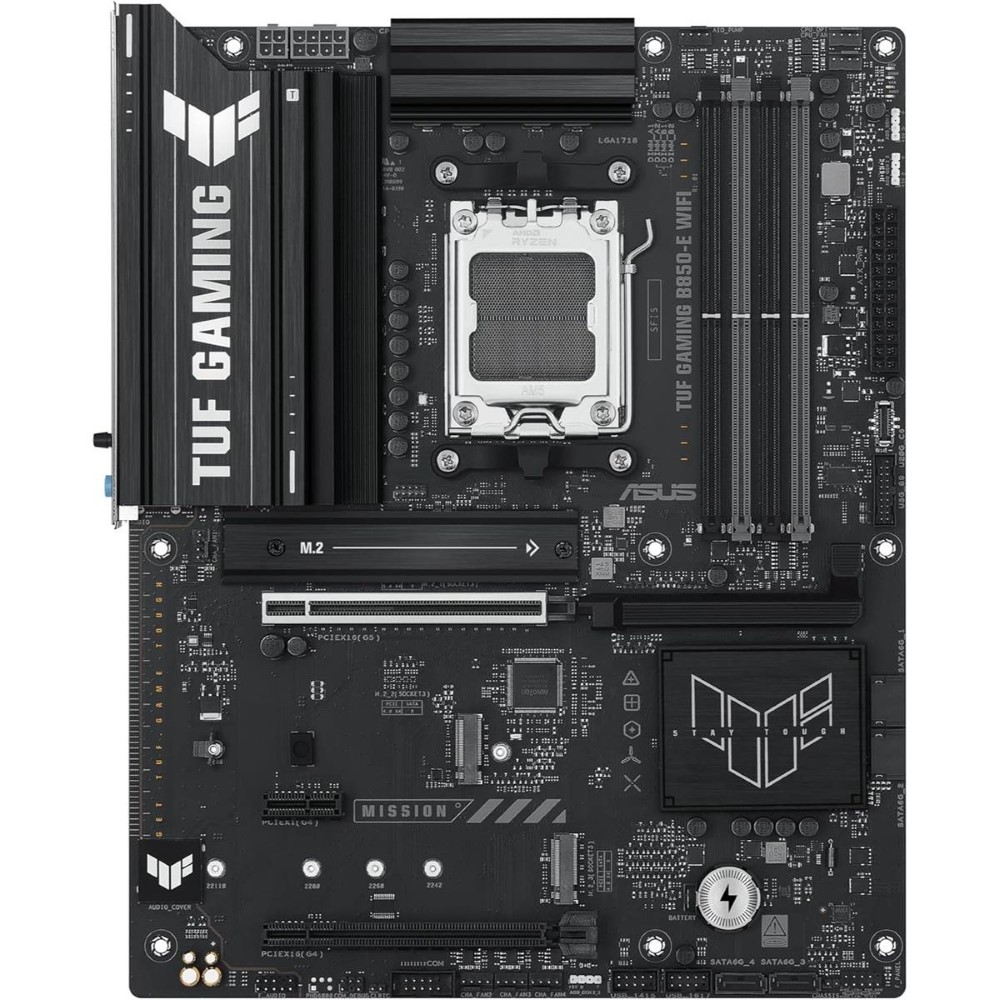

Asus Tuf Gaming B850-E Wifi AMD AM5 B850 ATX Motherboard

Rs. 70,500

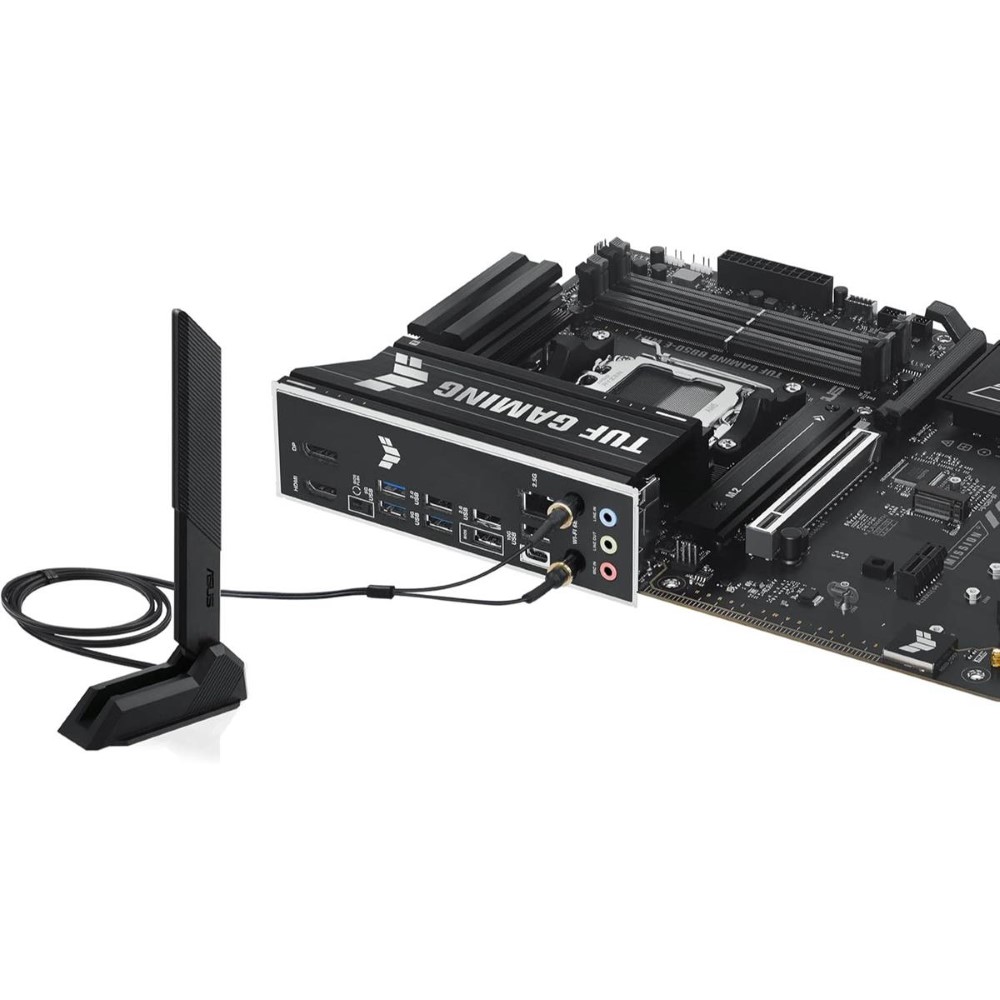

<ul class="list_dkf_HqcGmV"><li>Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications</li><li>AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors</li><li>Enhanced Power Solution: 8+2+1 80A DrMOS power stages, 8-layer PCB, 8+4 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery</li><li>Latest M.2 Support: One onboard PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots</li><li>Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, front USB 20Gbps Type-C connector, and rear USB 10Gbps Type-C port support</li><li>Comprehensive Cooling: Enlarged VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4</li><li>DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and Pre-mounted I/O shield</li><li>Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

Asus Tuf Gaming B850-E Wifi AMD AM5 B850 ATX Motherboard Price in Pakistan Specs

Model
Brand	ASUS
Model	TUF GAMING B850-E WIFI
Part Number	90MB1L20-MVAAY0
Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset	AMD B850
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports up to 8000+MT/s(OC)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Expansion Slots
PCI Express 5.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)

	AMD Ryzen 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

	AMD B850 Chipset
	1 x PCIe 4.0 x16 slot (supports x1 mode)
PCI Express x1	1 x PCIe 4.0 x1 slot
Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

	AMD B850 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAID	0/1/5/10
Onboard Audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.3

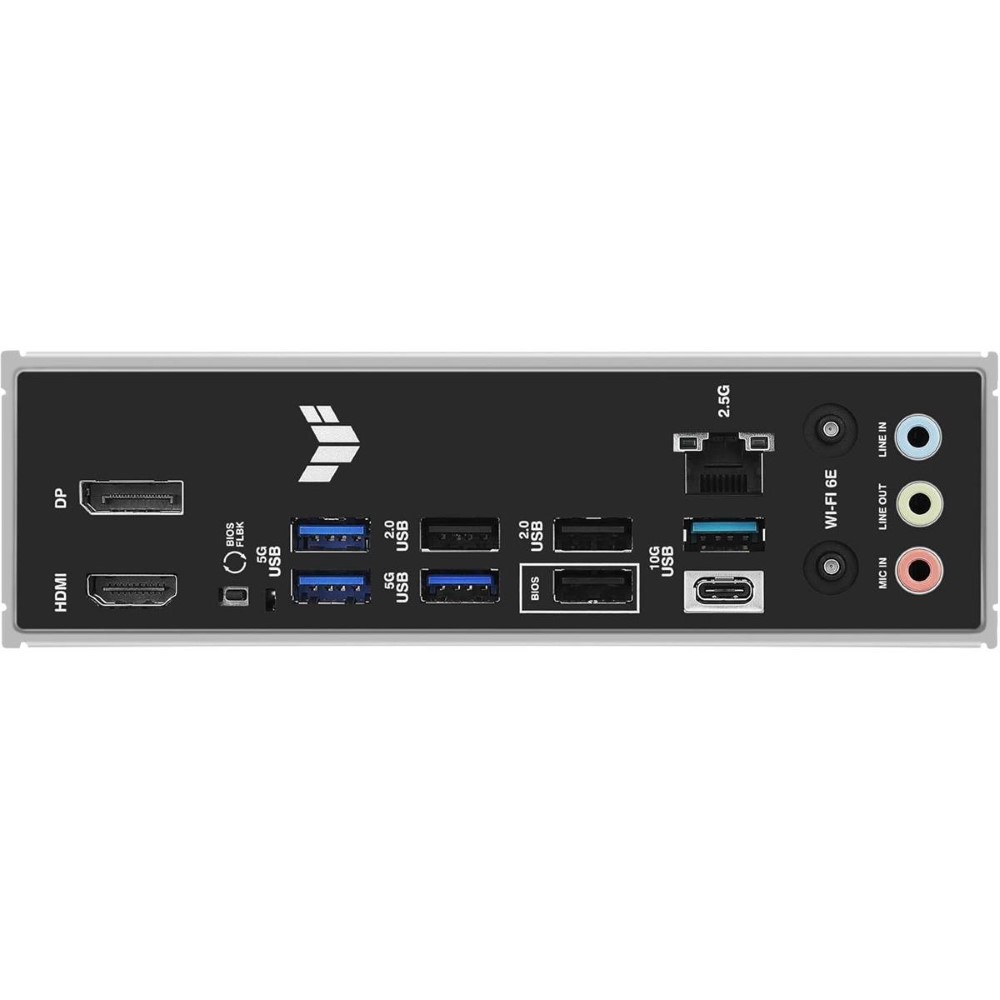

Rear Panel Ports
Back I/O Ports	2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
	3 x USB 5Gbps ports (3 x Type-A)
	3 x USB 2.0 ports (3 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers

	Miscellaneous
	3 x Addressable RGB Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front Panel System header
Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V CPU Power connector
	1 x 4-pin +12V CPU Power connector
Software Feature
BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4
	- Power Saving
	ASUS AI Advisor
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
Windows 11	Supported
Features
Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- Flexible M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable RGB Gen 2 headers
Packaging
Package Contents	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x TUF Gaming sticker
	1 x M.2 rubber package
	2 x Screw packages for M.2 SSD
	Documentation
	1 x Quick start guide
