Corsair Power Supply:Corsair Cx550 80+ Bronze

Rs. 16,000

<ul><li>80 PLUS Bronze efficiency up to 88%</li><li>Guaranteed continuous power</li><li>120mm low-noise cooling fan</li><li>Compact 125mm length</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

Corsair CX550 - 550 Watt 80 PLUS Bronze ATX Power Supply (IN) Price in Pakistan Specs

Key Specs

Total Connectors	1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex
Cable Design	Flat
Total Wattage	550 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Bronze
Form Factor	ATX

Connectivity

Total Connectors	1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex
Cable Design	Flat
PCIe Connector Distances	19.7" / 500 mm 3.9" / 100 mm
SATA Connector Distances	15.7" / 400 mm 3.9" / 100 mm 3.9" / 100 mm
Peripheral Connector Distances	15.7" / 400 mm 3.9" / 100 mm
ATX Connector Distance	23.6" / 600 mm
EPS Connector Distances	23.6" / 600 mm

Electrical

Total Wattage	550 W
Number of +12 V Rails	1
Combined Power for +12 V	528 W
Max Load for +12 V	44 A
Combined Power for +3.3/+5 V	120 W
Max Load for +3.3 V	24 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating	80 PLUS Bronze
Active Power Factor Correction	No
Efficiency	88%

Cooling

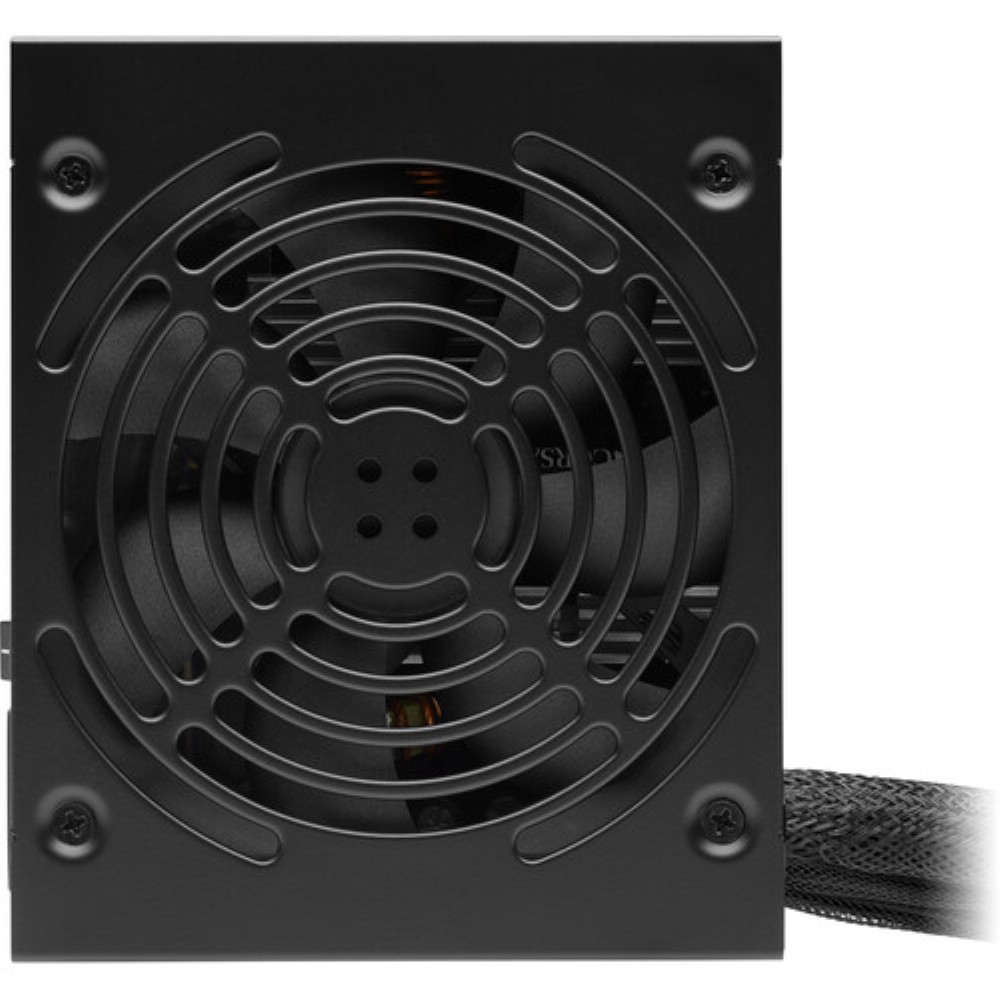

Fan Size

120 mm

Physical

Form Factor	ATX
Mean Time Between Failures (MTBF)	100,000 Hours
Dimensions	4.9 x 3.4" / 125 x 86 mm
