Motherboard / Chipset

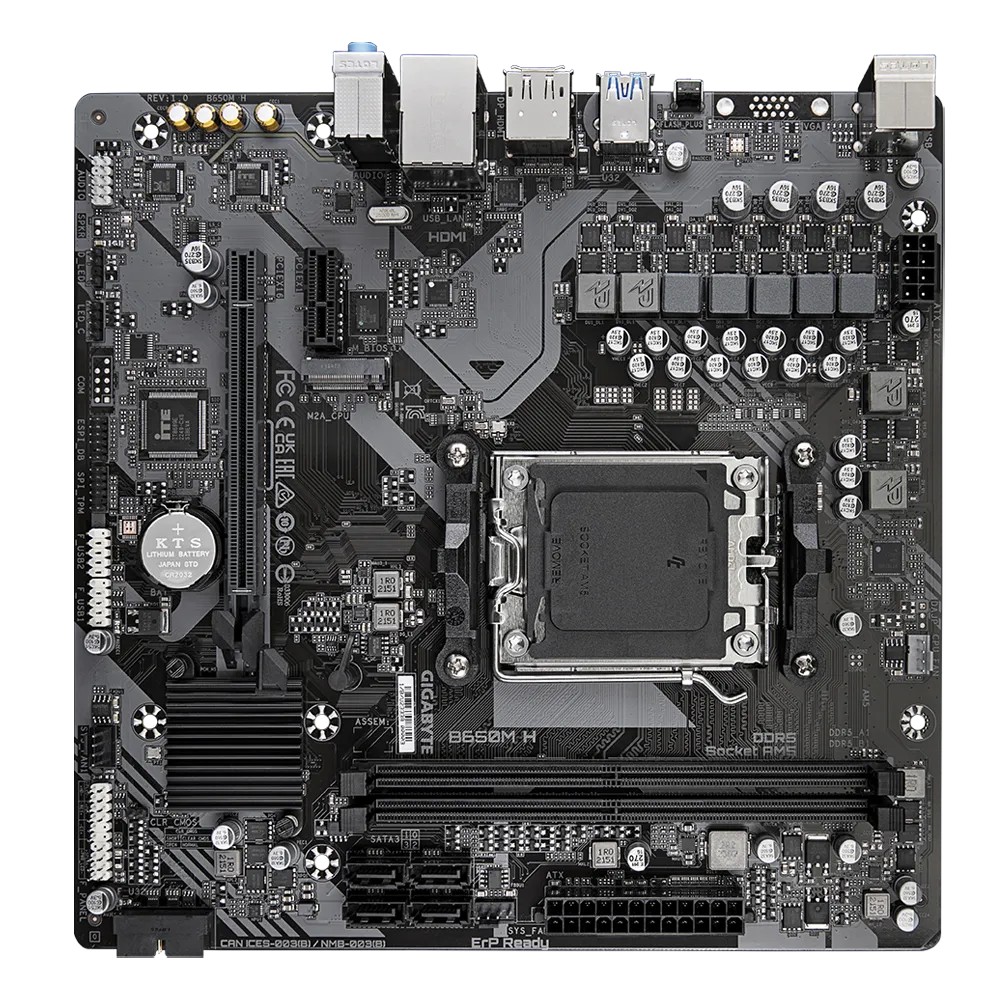

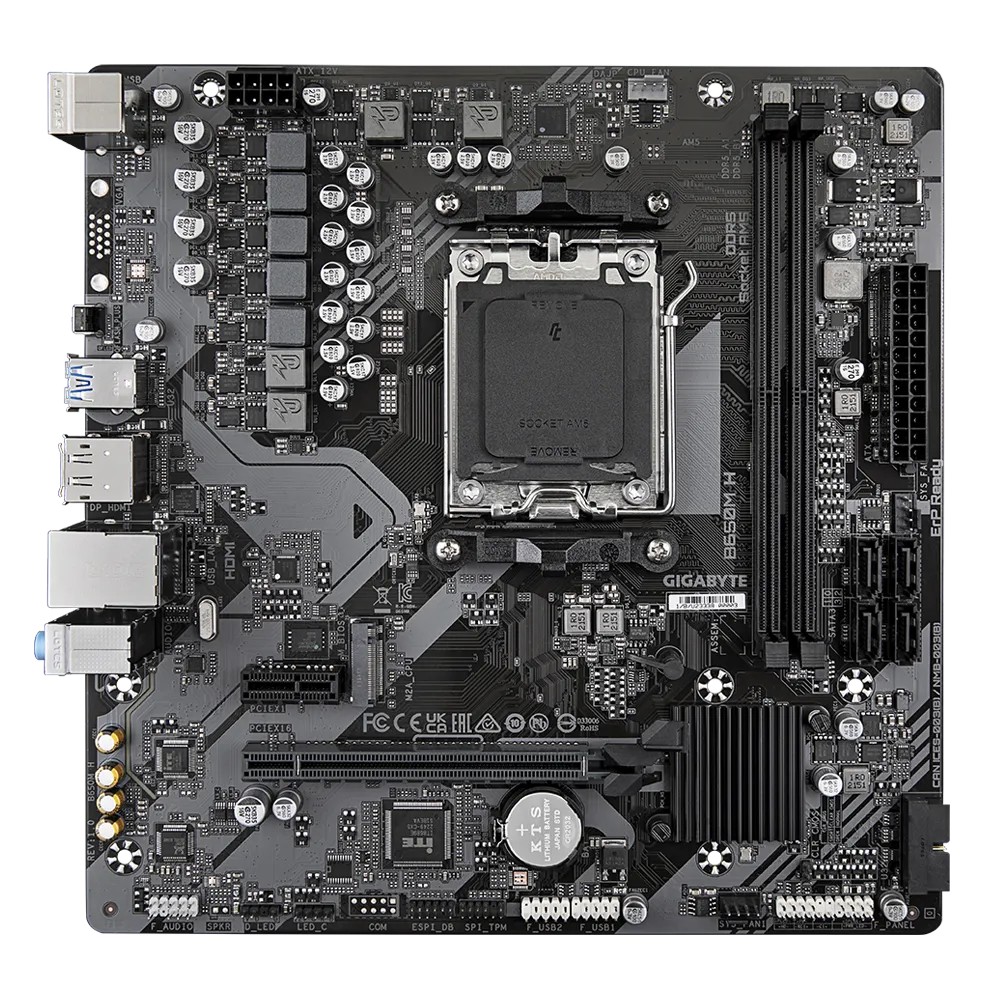

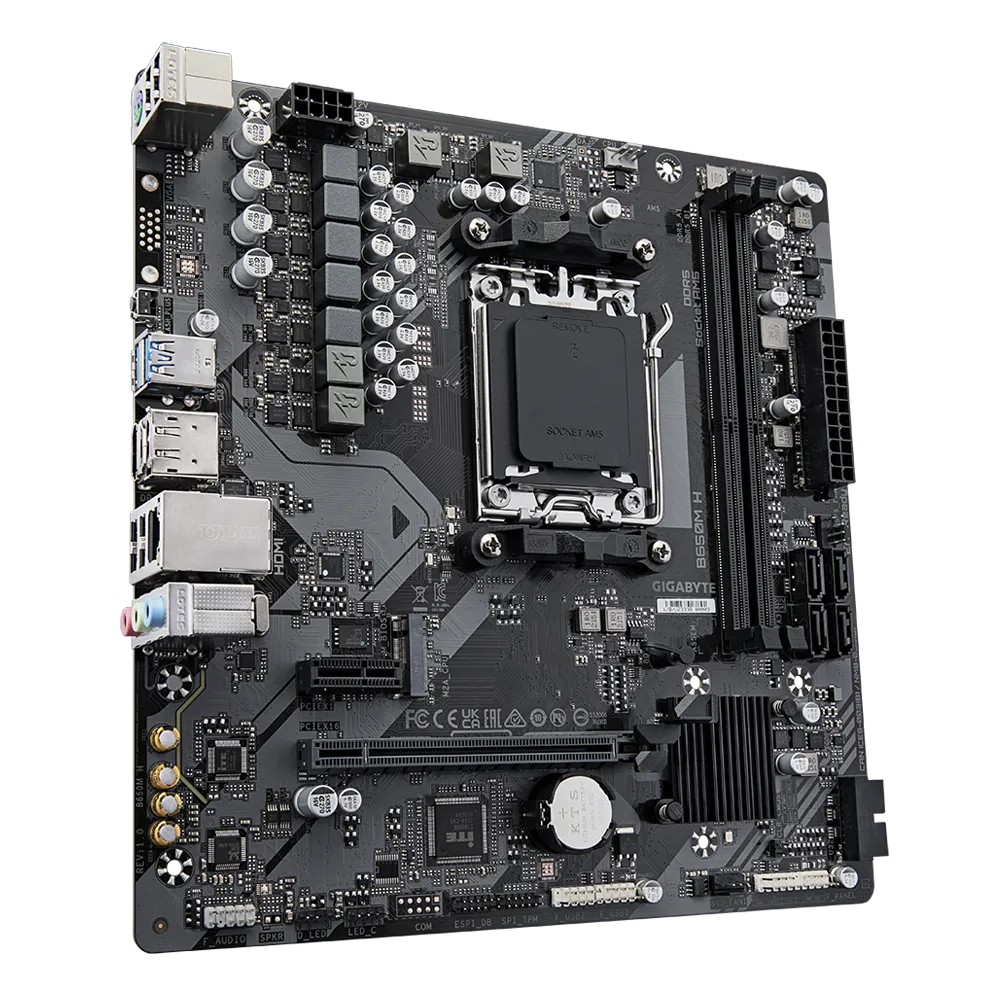

Gigabyte B650M H DDR5 AMD AM5 microATX Motherboard
Gigabyte B650M-H AMD Socket AM5 DDR5 PCIe 4.0 x4 M.2 Motherboard Price in Pakistan
(Go to GIGABYTE's website for the latest CPU support list.)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
CPU | AMD Socket AM5, support for: | |
| AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors | ||
Chipset | AMD B650 | |
Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules | |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | ||
| Dual channel memory architecture | ||
Integrated Graphics Processor: | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 1.4 version. | ||
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | ||
| * Support for HDMI 2.1 version and HDCP 2.3. | ||
| ** Support for native HDMI 2.1 TMDS compatible ports. | ||
| (Graphics specifications may vary depending on CPU support.) | ||
Audio | Realtek® Audio CODEC | |
| High Definition Audio | ||
| 2/4/5.1/7.1-channel | ||
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | ||
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: | |
| - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode | ||
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | ||
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | ||
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | ||
| Chipset: | ||
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) | ||
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: | |
| - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs | ||
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | ||
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | ||
| 4 x SATA 6Gb/s connectors | ||
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | ||
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | ||
USB | CPU: | |
| - 2 x USB 3.2 Gen 1 ports on the back panel | ||
| - 1 x USB 2.0/1.1 port on the back panel | ||
| Chipset: | ||
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header | ||
| - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) | ||
Internal I/O Connectors | 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | ||
| 1 x CPU fan header | ||
| 2 x system fan headers | ||
| 1 x addressable LED strip header | ||
| 1 x RGB LED strip header | ||
| 1 x M.2 Socket 3 connector | ||
| 4 x SATA 6Gb/s connectors | ||
| 1 x front panel header | ||
| 1 x front panel audio header | ||
| 1 x USB 3.2 Gen 1 header | ||
| 2 x USB 2.0/1.1 headers | ||
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) | ||
| 1 x Clear CMOS jumper |
