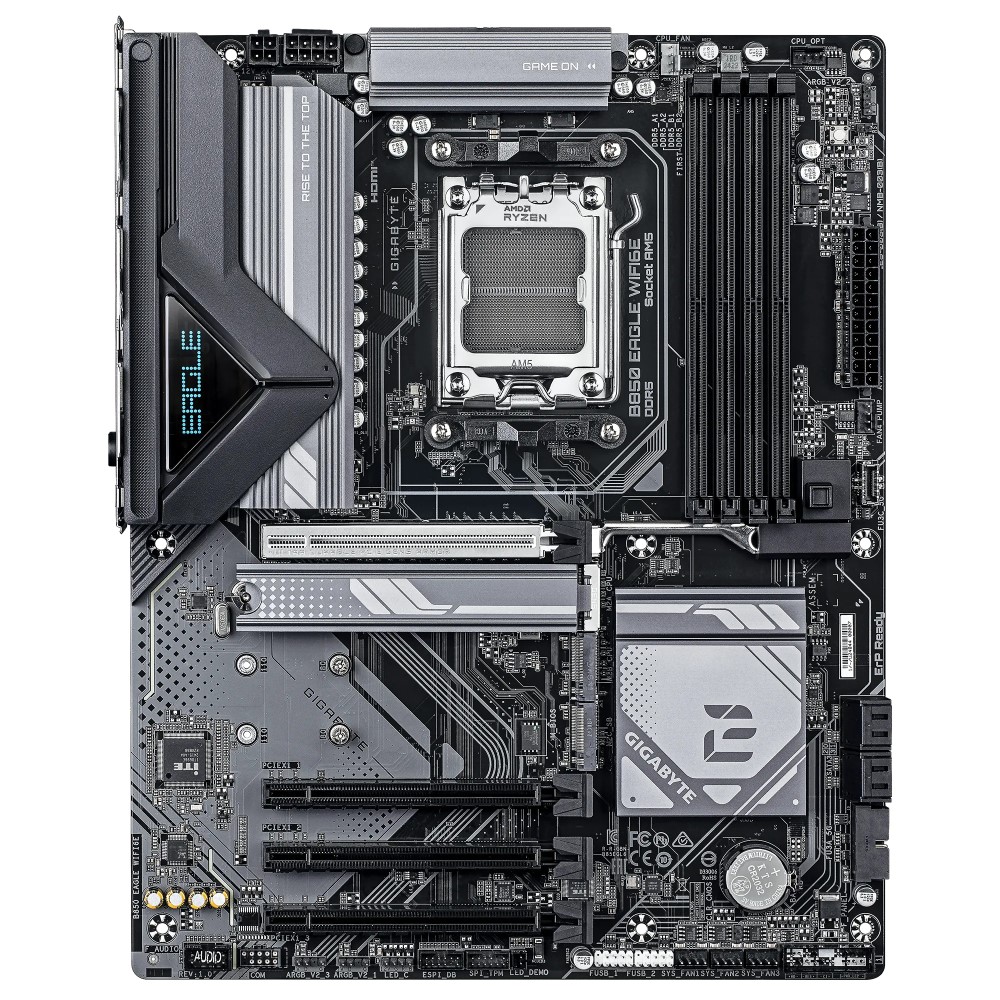

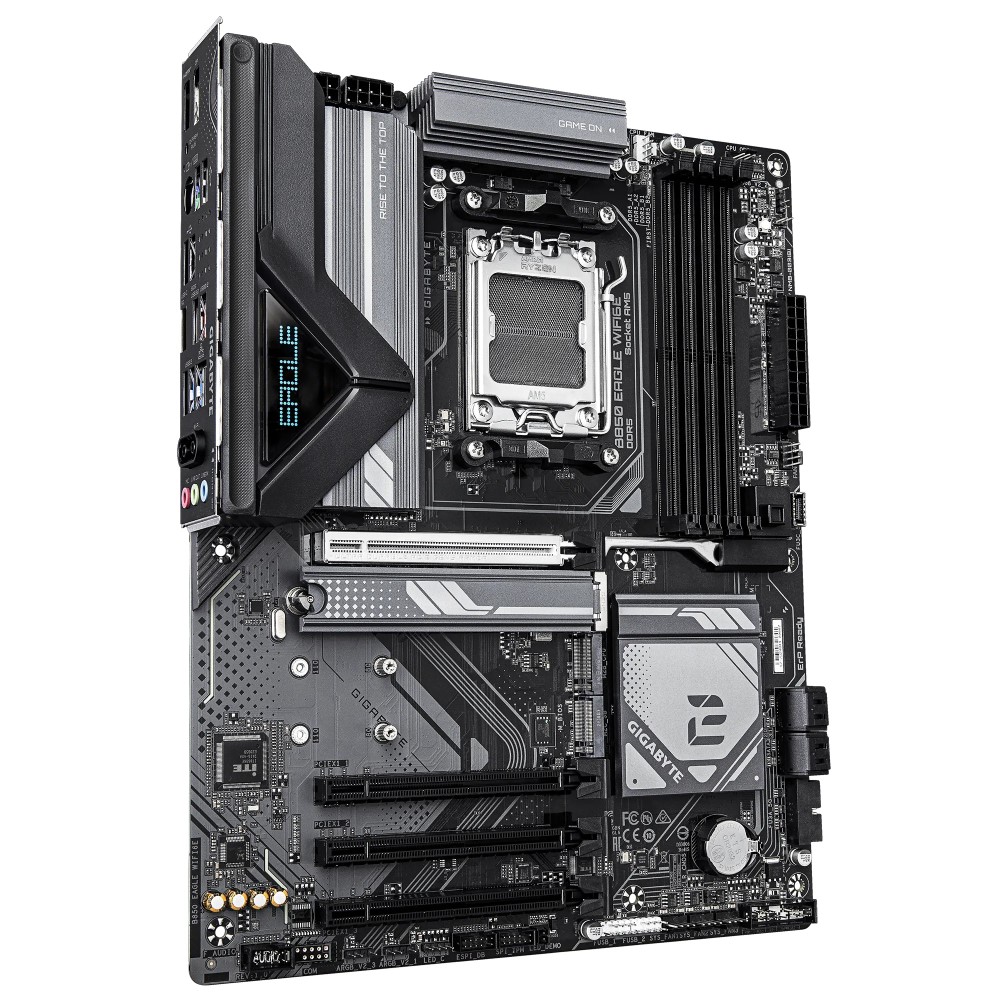

Gigabyte B850 EAGLE WIFI6E AMD AM5 Motherboard ATX DDR5 3X M.2 PCIe 5.0 USB-C WIFI6E 1GbE LAN EZ-Latch
Rs. 62,400
<ul><li><b>X3D Turbo Mode </b>: Unleash new era gaming performance</li><li>DDR5 OC up to 8200MT/s</li><li><b>AMD Socket AM5 </b>: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors</li><li>Digital twin 8+2+2 phases VRM solution</li><li><b>Dual Channel DDR5 </b>: 4*DIMMs with AMD EXPO™Memory Module Support</li><li><b>WIFI EZ-Plug </b>: Quick and easy design for Wi-Fi antenna installation</li><li><b>EZ-Latch Plus </b>: PCIe and M.2 slots with Quick Release & Screwless Design</li><li><b>EZ-Latch Click </b>: M.2 heatsinks with screwless design</li><li><b>Friendly UI </b>: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.</li><li><b>Ultra-Fast Storage </b>: 3*M.2 slots, including PCIe 5.0 x4</li><li><b>Efficient Thermal </b>: VRM Thermal Armor Advanced & M.2 Thermal Guard</li><li><b>Fast Networking </b>: GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna</li><li><b>Extended Connectivity </b>: HDMI, Displayport</li><li><b>PCIe UD Slot </b>: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
Gigabyte B850 EAGLE WIFI6E AMD AM5 Motherboard ATX DDR5 3X M.2 PCIe 5.0 USB-C WIFI6E 1GbE LAN EZ-Latch Price in Pakistan
| CPU | AMD Socket AM5, support for: |
| AMD Ryzen™ 9000 / 8000 / 7000 Series Processors | |
| Chipset | AMD B850 |
| Memory | - Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s |
| - 4 x DDR5 DIMM sockets (up to 256 GB total, 64 GB per DIMM) | |
| - Dual channel memory architecture | |
| - Supports non-ECC un-buffered DIMMs (1Rx8/2Rx8/1Rx16) | |
| - Supports AMD EXPO™ & Intel XMP | |
| Performance depends on CPU & configuration | |
| Onboard Graphics | Integrated AMD Radeon™ Graphics: |
| - 1 x DisplayPort 1.4 (3840x2160@144Hz, HDR) | |
| - 1 x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR) | |
| Graphics support varies by CPU | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio (2/4/5.1/7.1-channel) | |
| Audio jack function configurable via software | |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless (PCB rev. 1.0) | Intel® Wi-Fi 6E AX210 |
| - Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) | |
| - Bluetooth 5.3 | |
| - Supports 11ax 160MHz | |
| Wireless (PCB rev. 1.1) | Realtek® Wi-Fi 6E RTL8852CE |
| - Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) | |
| - Bluetooth 5.3 | |
| - Supports 11ax 160MHz | |
| Expansion Slots | CPU: |
| - 1 x PCIe x16 (PCIEX16) | |
| Ryzen 9000/7000 → PCIe 5.0 x16 | |
| Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 | |
| Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 | |
| Slot supports GPU or NVMe SSD only | |
| Chipset: | |
| - 3 x PCIe x16 (PCIe 3.0 x1 mode each) | |
| Storage Interface | - 1 x M.2 (M2A_CPU) – PCIe 5.0 x4/x2 (22110/2280, CPU integrated) |
| - 1 x M.2 (M2B_CPU) – PCIe 4.0 x4/x2 (22110/2280, CPU integrated) | |
| - 1 x M.2 (M2C_SB) – PCIe 4.0 x2 (22110/2280, chipset integrated) | |
| - 4 x SATA 6Gb/s connectors | |
| - RAID 0/1/5/10 (NVMe, RAID 5 only on Ryzen 9000) | |
| - RAID 0/1/10 (SATA) | |
| USB Ports | CPU: |
| - 1 x USB Type-C® (USB 3.2 Gen 1, rear) | |
| - 2 x USB 3.2 Gen 2 Type-A (red, rear) | |
| Chipset: | |
| - 1 x USB Type-C® (USB 3.2 Gen 1, internal header) | |
| - 4 x USB 3.2 Gen 1 (2 rear + 2 internal) | |
| - 4 x USB 2.0 (rear) | |
| Chipset + Hub: | |
| - 4 x USB 2.0 (internal) | |
| Internal I/O Connectors | - 24-pin ATX main power |
| - 8-pin + 4-pin ATX 12V | |
| - 1 x CPU fan header | |
| - 1 x CPU fan/water pump header | |
| - 3 x system fan headers | |
| - 1 x system fan/water pump header | |
| - 3 x ARGB Gen2 headers | |
| - 1 x RGB header | |
| - 3 x M.2 Socket 3 connectors | |
| - 4 x SATA 6Gb/s connectors | |
| - 1 x front panel header | |
| - 1 x front panel audio header | |
| - 1 x USB Type-C® header (USB 3.2 Gen 1) | |
| - 1 x USB 3.2 Gen 1 header | |
| - 2 x USB 2.0 headers | |
| - 1 x TPM header | |
| - 1 x Reset button | |
| - 1 x Reset jumper | |
| - 1 x Clear CMOS jumper | |

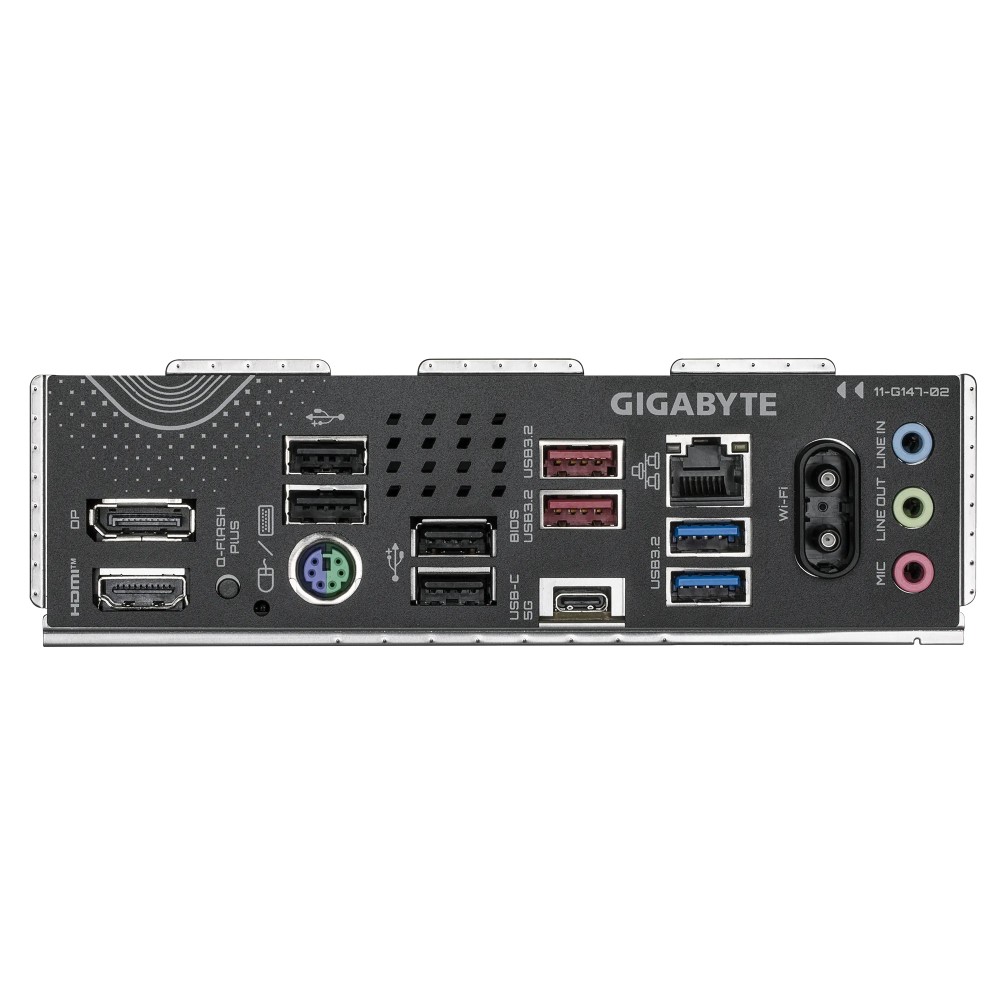

| Back Panel I/O | - 1 x DisplayPort |
| - 1 x HDMI port | |
| - 1 x Q-Flash Plus button | |
| - 4 x USB 2.0 ports | |
| - 1 x PS/2 keyboard/mouse combo | |
| - 2 x USB 3.2 Gen 2 Type-A (red) | |
| - 1 x USB Type-C® (USB 3.2 Gen 1) |
Standard nationwide shipping delivers within 2–4 business days depending on destination city across Pakistan. Orders placed before 3:00 PM are processed same-day.
