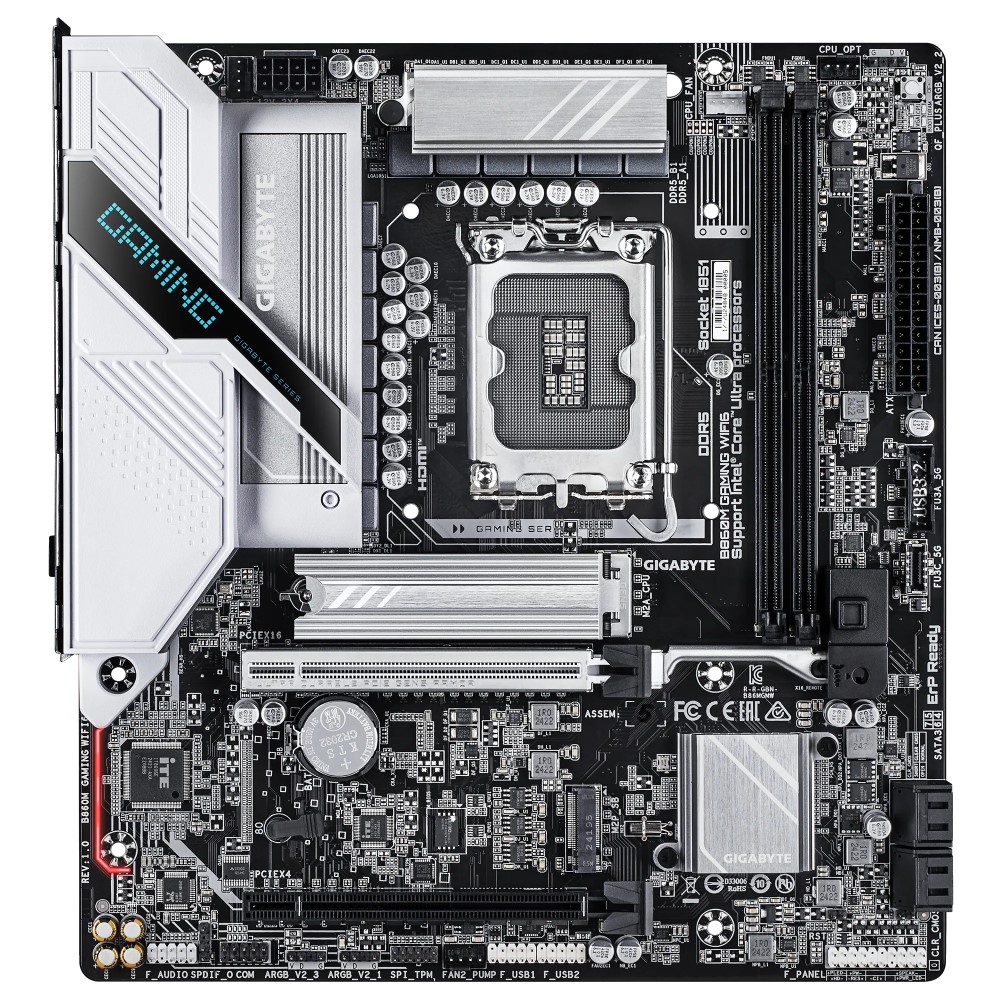

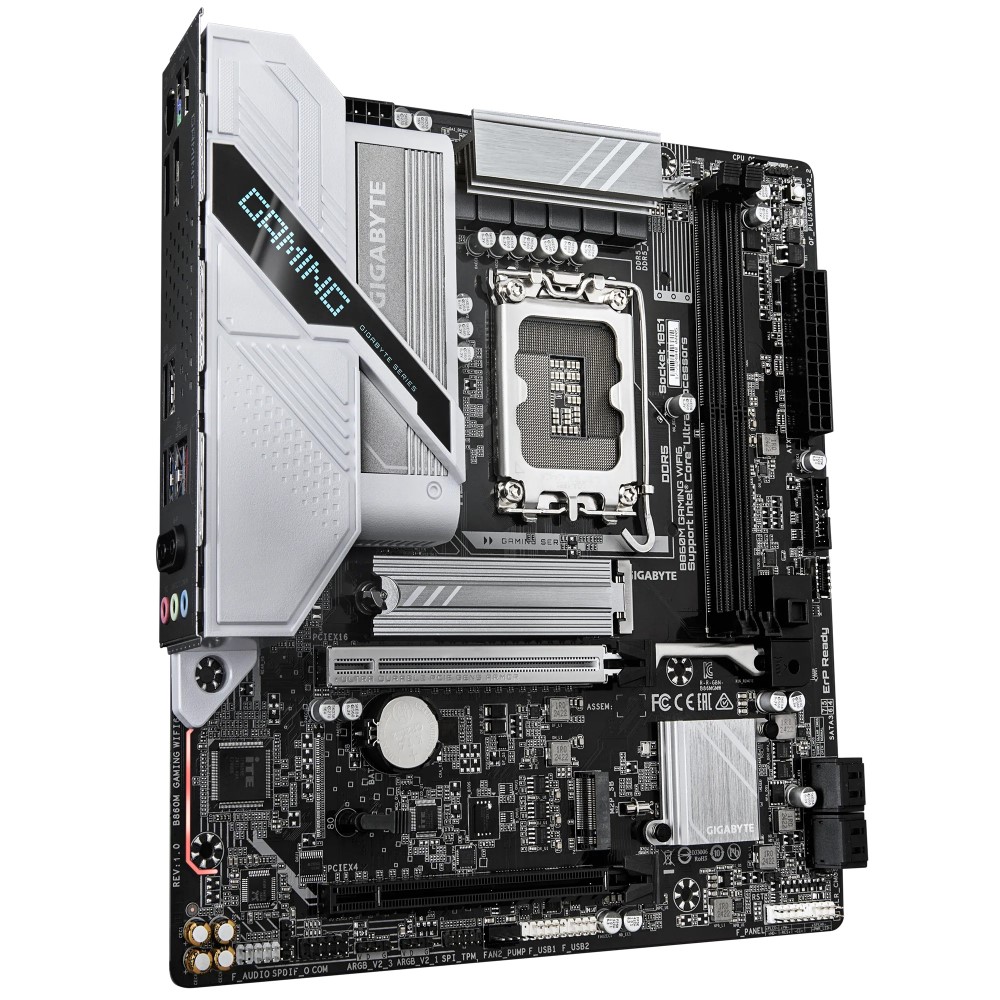

Gigabyte B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 5.0 x16 2x M.2 Slots WiFi 6 & BT 5.3

Rs. 46,999

<ul><li>Supports Intel® Core™ Ultra processors (Series 2)</li><li>Hybrid 8+1+2 phases VRM solution</li><li>D5 Bionic Corsa for Infinite Memory Performance</li><li>AI Perfdrive : Provides optimal and customized BIOS preset profile for users</li><li>WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation</li><li>PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design</li><li>Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4</li><li>Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard</li><li>Fast Networking : 2.5GbE LAN & Wi-Fi 6 802.11ax</li><li>Extended Connectivity : HDMI, DisplayPort</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

Gigabyte B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 5.0 x16 2x M.2 Slots WiFi 6 & BT 5.3 Price in Pakistan

CPU	LGA1851 socket: Supports Intel® Core™ Ultra Processors
	(Refer to GIGABYTE website for CPU support list)
	L3 cache varies with CPU
Chipset	Intel® B860 Express Chipset
Memory	- Supports DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s
	- 2 x DDR5 DIMM sockets (up to 128GB, 64GB per DIMM)
	- Dual Channel Architecture
	- Supports ECC Un-buffered DIMM (non-ECC mode)
	- Supports non-ECC Un-buffered DIMM
	- Supports XMP memory profiles
Onboard Graphics	Integrated Intel® HD Graphics:
	- 1 x HDMI port (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
	- 1 x DisplayPort (3840x2160@144Hz, DisplayPort 2.1)
	Graphics specs vary by CPU
Audio	Realtek® Audio CODEC
	- High Definition Audio
	- 2/4/5.1/7.1-channel support
	- S/PDIF Out supported
LAN	Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless	Realtek® Wi-Fi 6 RTL8851BE
	- Wi-Fi a/b/g/n/ac/ax (2.4GHz & 5GHz)
	- Bluetooth 5.3
	- Supports 11ax 80MHz wireless standard
Expansion Slots	CPU:
	- 1 x PCIe x16 slot (PCIe 5.0 x16)
	Chipset:
	- 1 x PCIe x16 slot (PCIe 4.0 x4)
	PCIEX16 supports GPU or NVMe SSD only
Storage Interface	CPU:
	- 1 x M.2 (PCIe 5.0 x4/x2, 2280 type)
	Chipset:
	- 1 x M.2 (PCIe 4.0 x4/x2, 2280 type)
	- 4 x SATA 6Gb/s connectors
	- Supports RAID 0, 1, 5, 10
USB	Chipset:
	- 1 x USB Type-C (USB 3.2 Gen1, internal header)
	- 5 x USB 3.2 Gen1 (3 rear, 2 internal)
	- 3 x USB 2.0 (rear)
	Chipset + Hub:
	- 4 x USB 2.0 (internal headers)
Internal I/O	- 24-pin ATX power
	- 8-pin CPU 12V power
	- 1 x CPU fan
	- 1 x CPU fan/pump
	- 1 x system fan
	- 1 x system fan/pump
	- 3 x ARGB Gen2 headers
	- 2 x M.2 slots
	- 4 x SATA ports
	- 1 x front panel header
	- 1 x audio header
	- 1 x S/PDIF Out
	- 1 x USB Type-C header (USB 3.2 Gen1)
	- 1 x USB 3.2 Gen1 header
	- 2 x USB 2.0 headers
	- 1 x TPM header
	- 1 x serial port header
	- 1 x Q-Flash Plus button
	- 1 x reset jumper
	- 1 x Clear CMOS jumper
Back Panel	- 1 x PS/2 keyboard/mouse port
	- 1 x HDMI
	- 1 x DisplayPort
	- 3 x USB 3.2 Gen1
	- 3 x USB 2.0
	- 2 x antenna connectors
	- 1 x RJ-45 LAN
	- 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	- Voltage, temperature, fan speed detection
	- Water cooling flow rate detection
	- Fan fail warning
	- Fan/pump speed control (depends on hardware)
BIOS	- 256 Mbit flash
	- AMI UEFI BIOS
	- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	- GIGABYTE Control Center (GCC)
	- Q-Flash & Q-Flash Plus
	- Smart Backup
Bundled Software	- Norton® Internet Security (OEM)
Bundled Software	- LAN bandwidth management software
Operating System	- Windows 11 64-bit
	- Windows 10 64-bit
	Intel® NPU driver supports Windows 11 only
Form Factor	Micro ATX (24.4 cm x 22.5 cm)
