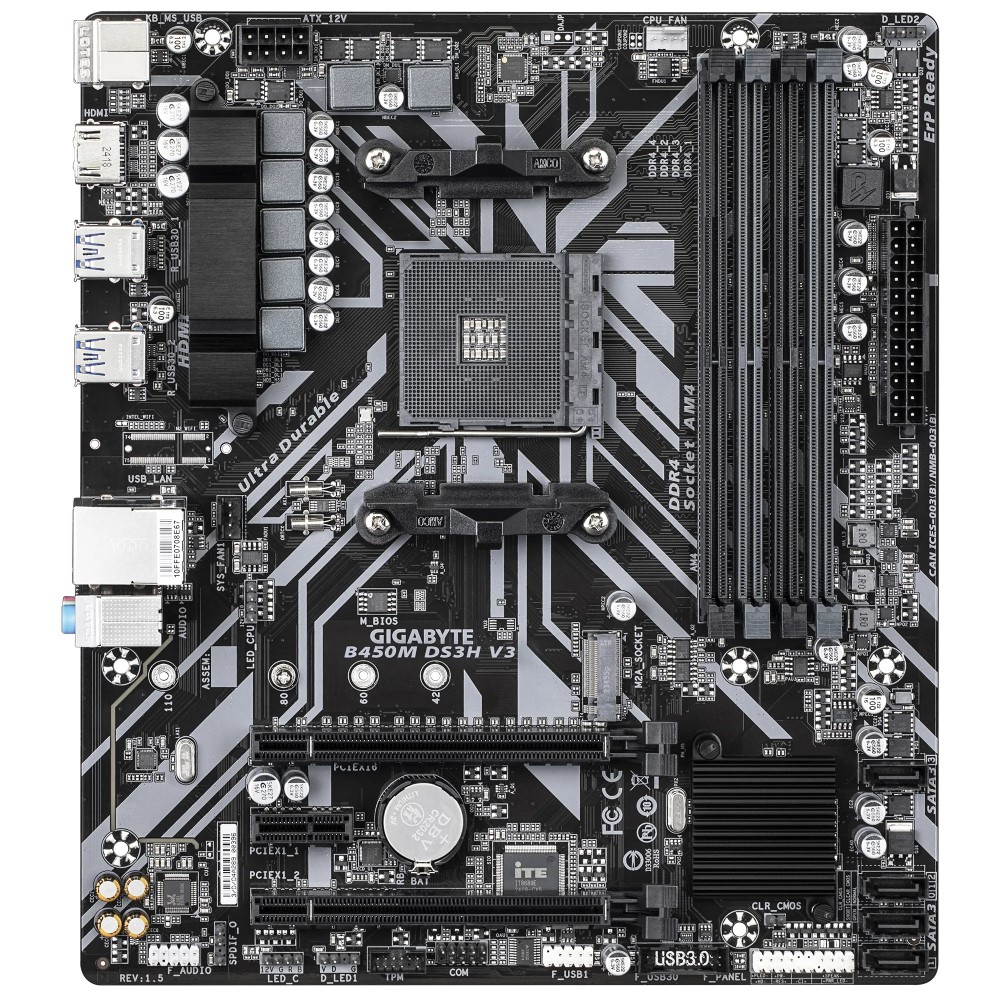

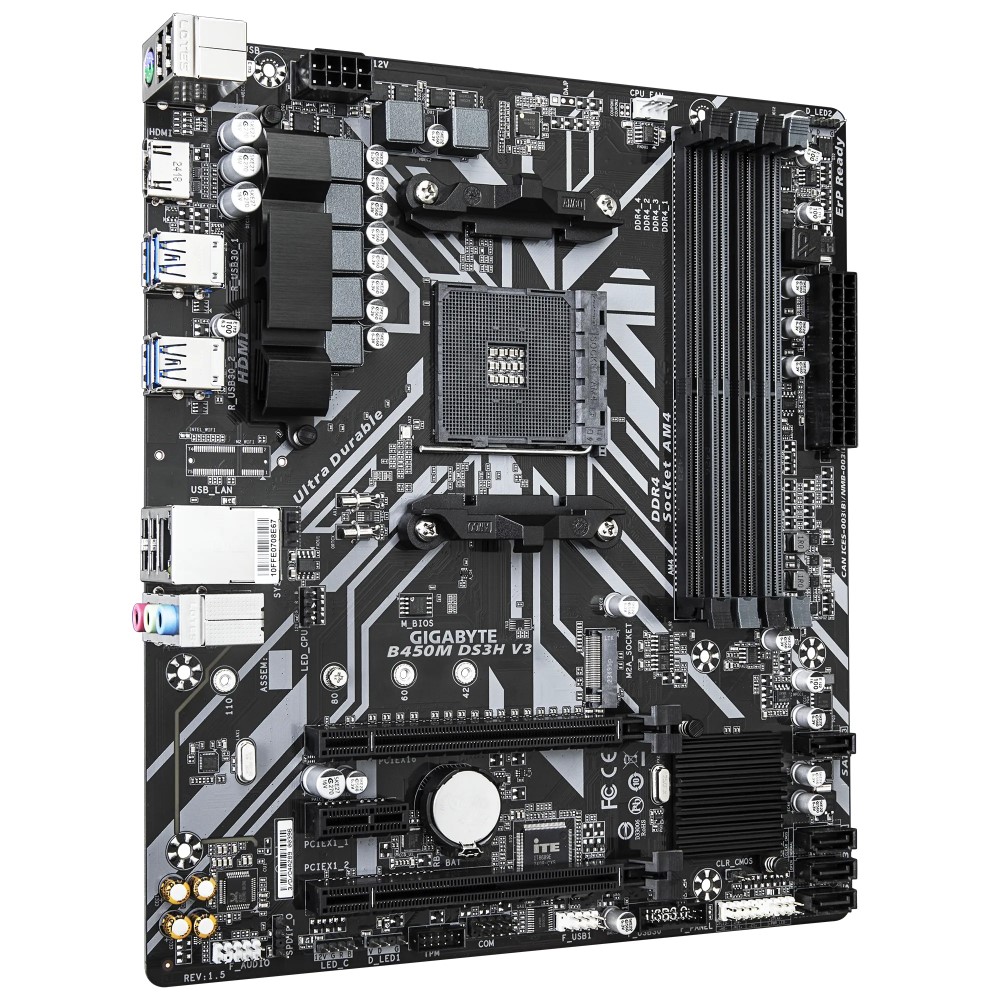

Gigabyte Motherboard:B450M Ds3H V3

Rs. 27,500

<ul><li>Supports AMD Ryzen™ 5000 series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors</li><li>Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs</li><li>Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support</li><li>High Quality Audio Capacitors and Audio Noise Guard Design</li><li>RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support</li><li>Realtek<sup>®</sup> Gigabit LAN with cFosSpeed Internet Accelerator Software</li><li>Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li><li>APP Center Including EasyTune™ and Cloud Station™ Utilities</li><li>CEC 2019 Ready, Save Power with a Simple Click</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE B450M UD DS3H V3 AM4 Rev 1.5 Socket Motherboard Price in Pakistan

Model:	B450M DS3H V3
CPU:	AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer "CPU Support List" for more information)
Chipset:	AMD B450
Memory:	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for DDR4 2933/2667/2400/2133 MT/s memory modules
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics:	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.1 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB(Note) Actual support may vary by CPU.
Audio:	Realtek Audio codec
	High Definition Audio
	2/4/5.1/7.1-channel

	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN:	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots:	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
	1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
	1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU.
Storage Interface:	1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support)

	* Actual support may vary by CPU.
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB:	Chipset:
	2 x USB 3.1 Gen 1 ports available through the internal USB header
	6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

	CPU:
	4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors:	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x CPU cooler LED strip/RGB LED strip header
	1 x RGB LED strip header
	2 x addressable LED strip headers
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.1 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x serial port header
	1 x Clear CMOS jumper

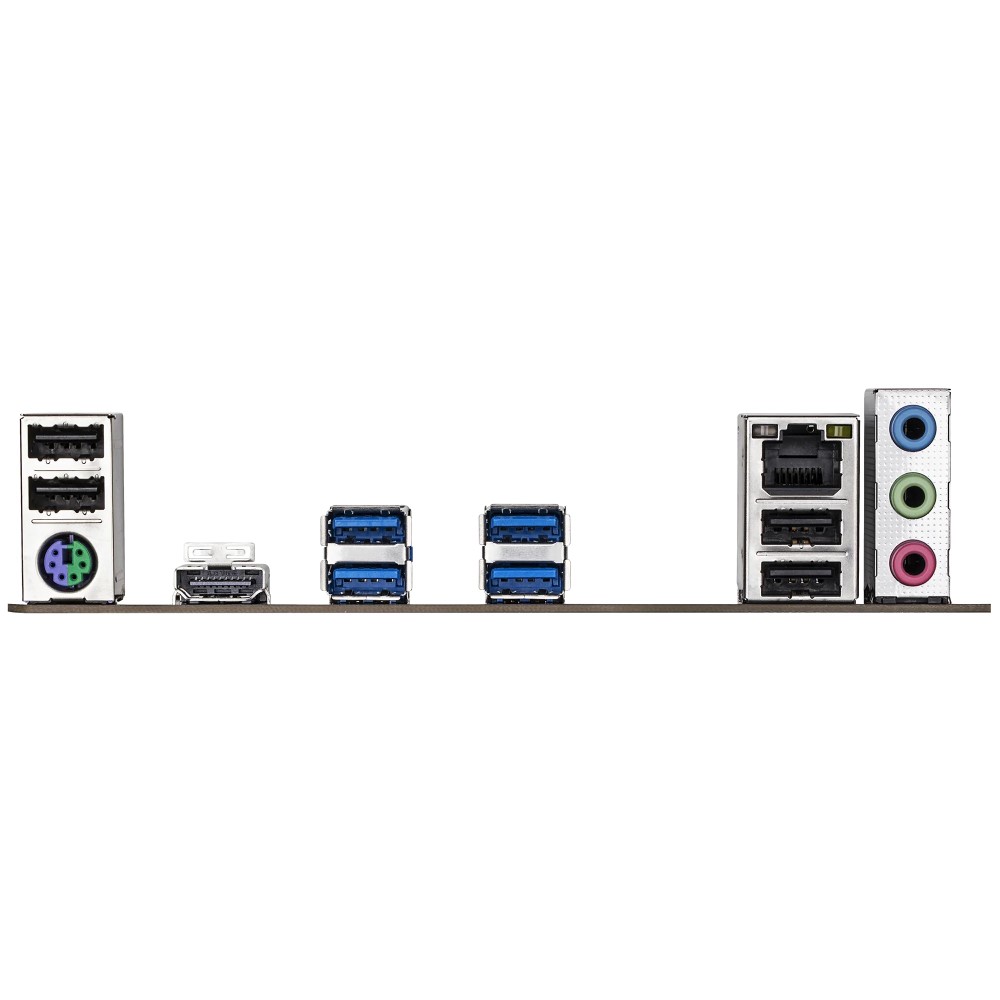

Back Panel Connectors:	1 x PS/2 keyboard/mouse port
	1 x HDMI port
	4 x USB 3.1 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller:	iTE I/O Controller Chip
H/W Monitoring:	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	*Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot RGB Fusion Smart Backup System Information Viewer
	Support for Q-Flash
	Support for Xpress Install
Bundled Software:	Norton Internet Security (OEM version)
Bundled Software:	LAN bandwidth management software
Operating System:	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
	Support for Windows 7 64-bit
	* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Form Factor:	Micro ATX Form Factor; 24.4cm x 21.5cm
