Gigabyte Motherboard:B450M-S2H

Rs. 29,999

<ul><li>Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors</li><li>Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs</li><li>HDMI, DVI-D, D-sub Ports for Multiple Display</li><li>Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support</li><li>GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management</li><li>RGB Fusion supports RGB LED Strips in 7-Colors</li><li>High Quality Audio Capacitors and Audio Noise Guard Design</li><li>Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers</li><li>APP Center Including EasyTune™ and Cloud Station™ Utilities</li><li> </li></ul>

100% Genuine

Cash on Delivery

Easy Returns

Gigabyte B450M-S2H AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design Price in Pakistan

Overview

Specs

Reviews

LEARN MORE ABOUT THE GIGABYTE B450M S2H

Model
Brand	GIGABYTE
Model	B450M S2H

Supported CPU
CPU Socket Type	AM4
CPU Type	AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon 200-series / 7th Generation A-series or Athlon APU.

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz* * Support for HDMI 2.0 version and HDCP 2.2.* Maximum shared memory of 2GB * Actual support may vary by CPU.

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	10/100/1000Mbps

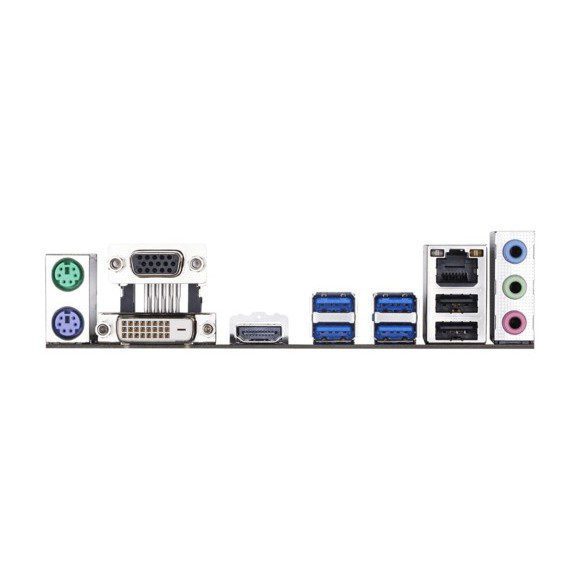

Rear Panel Ports
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 xRJ45
USB 3.1	4 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
