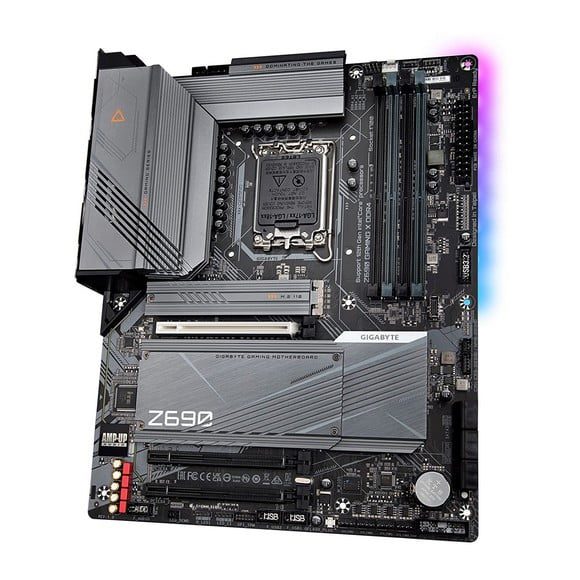

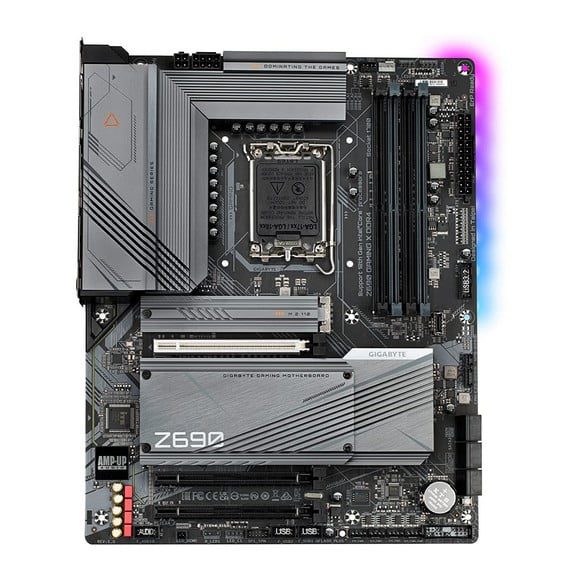

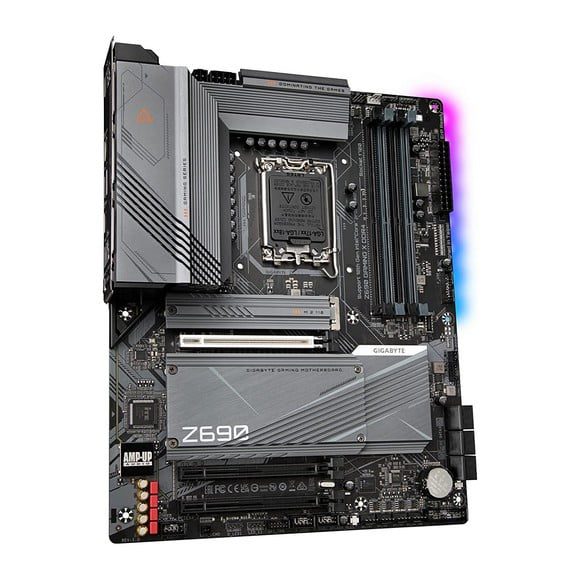

Gigabyte Motherboard:Z690 Gaming X Ddr4 Warranty

Rs. 63,500

<ul><li>Supports 12th Gen Intel<sup>®</sup> Core™ Series Processors</li><li>Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs</li><li>Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor</li><li>Shielded Memory Routing to Avoid Interference</li><li>Fully Covered Thermal Design with High Coverage MOSFET Heatsinks</li><li>AMP-UP Audio with ALC1220 and WIMA Audio Capacitors</li><li>Fast 2.5GbE LAN with Bandwidth Management</li><li>4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards</li><li>SuperSpeed USB 3.2 Gen2x2 TYPE-C<sup>®</sup> delivers up to 20Gb/s transfer speeds</li><li>RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips</li><li>Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE Z690 GAMING X DDR4 LGA 1700 Intel Z690 ATX Motherboard with DDR4, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN Price in Pakistan Specs

CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium / Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Intel Optane Ready	Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio.
Audio Channels	2-channel analog output 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	10/100/1000/2500Mbps

Rear Panel Ports

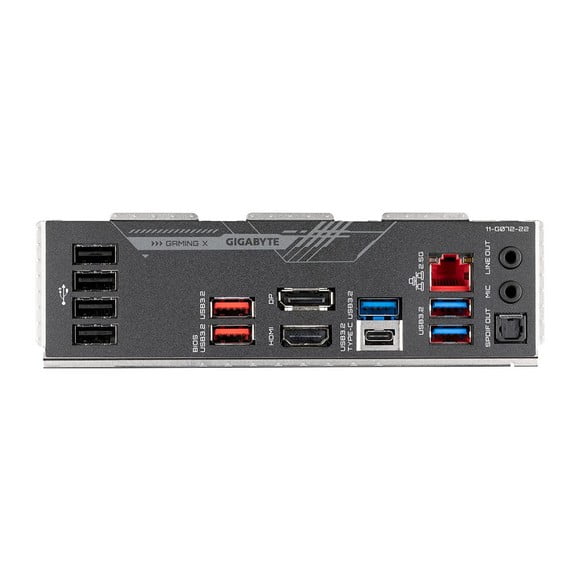

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit
