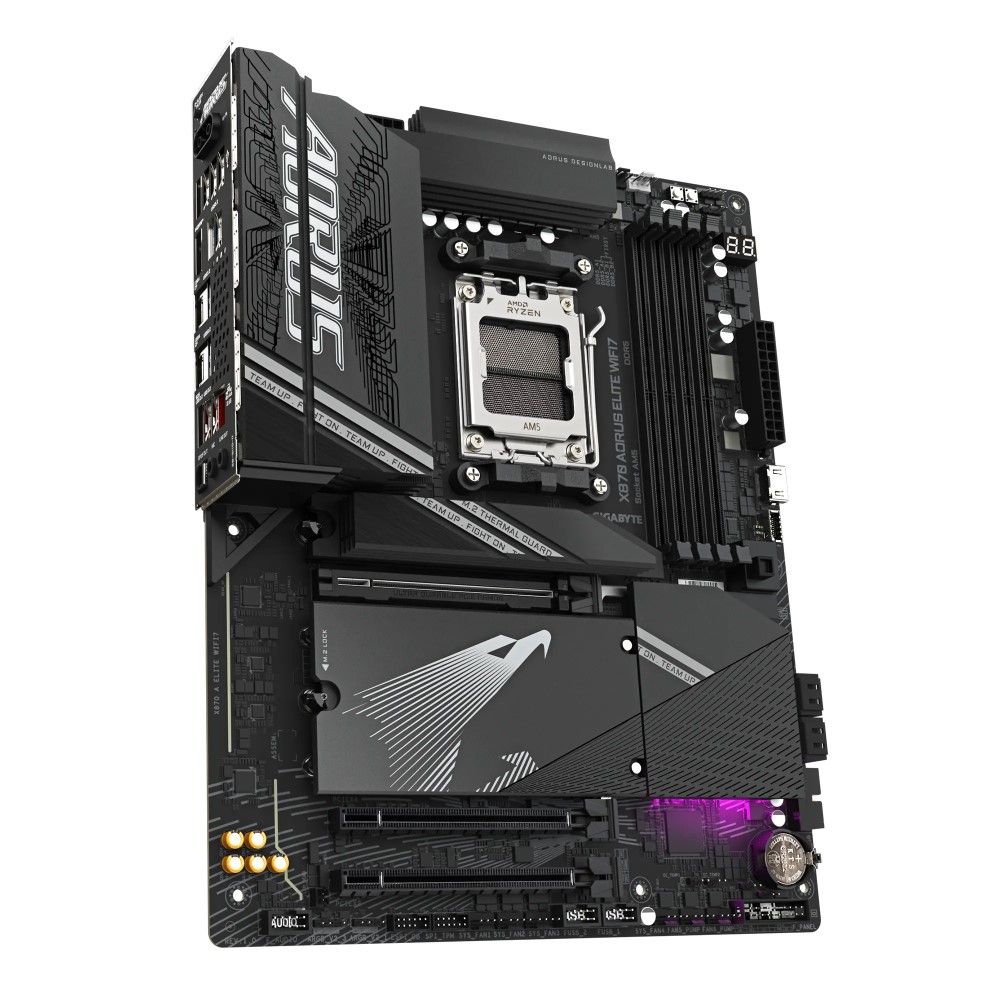

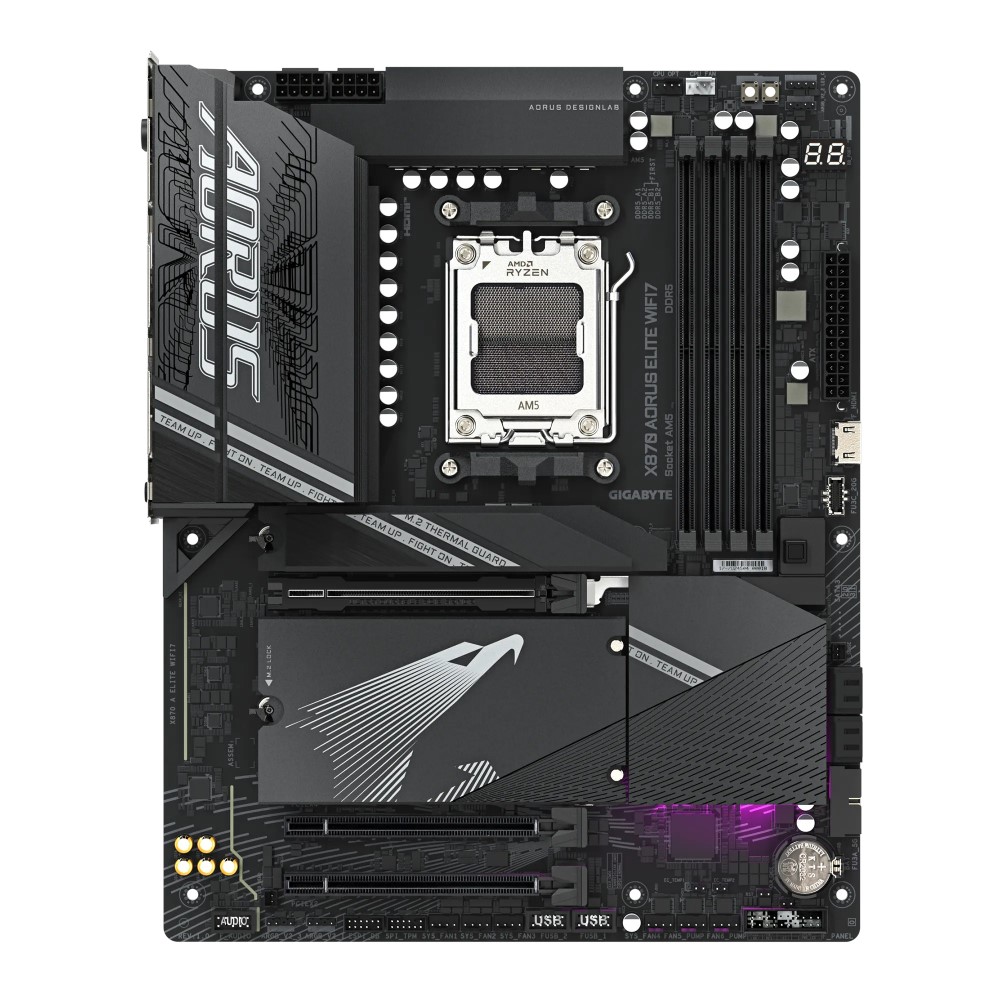

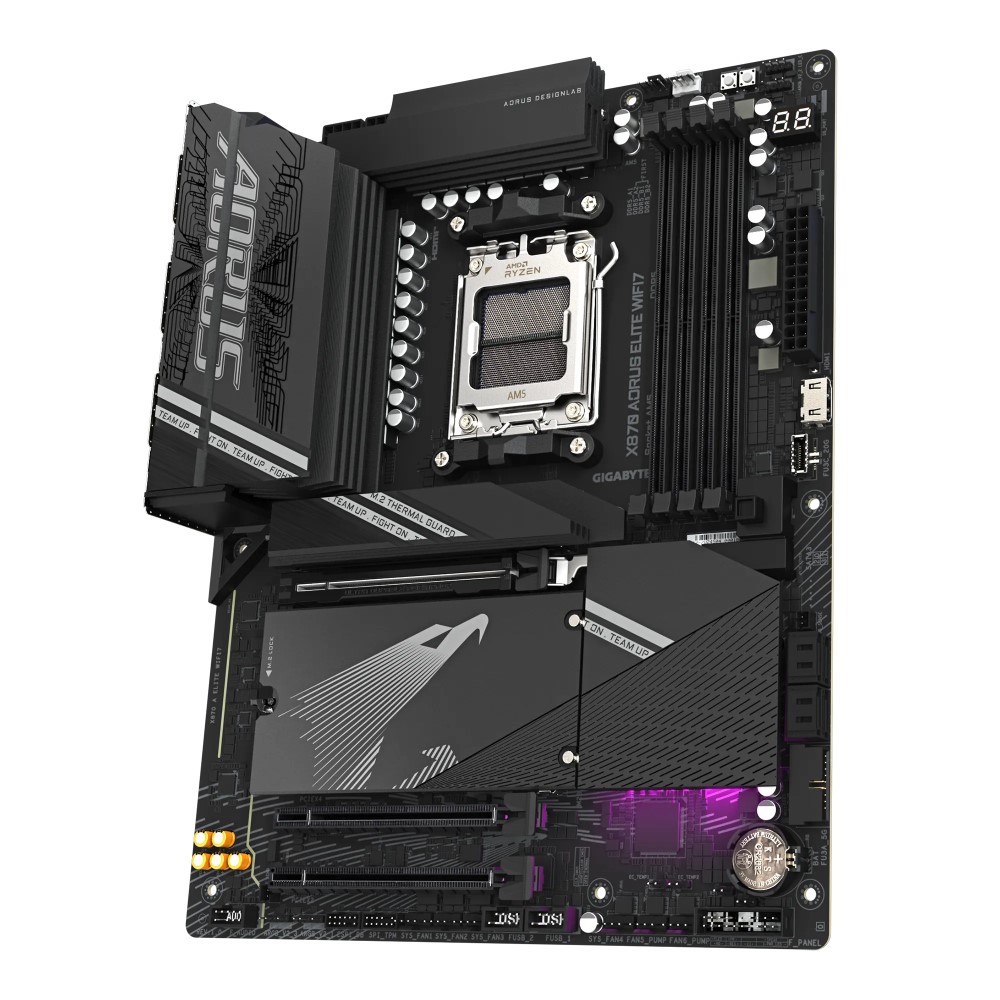

Gigabyte X870E Aorus Elite WIFI7 ATX AM5 DDR5 Gaming Motherboard
Rs. 98,999
<ul><li>AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors</li><li>Digital twin 16+2+2 phases VRM solution</li><li>Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support</li><li>WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation</li><li>EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design</li><li>EZ-Latch Click：M.2 heatsinks with screwless design</li><li>Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup</li><li>Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4</li><li>Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L</li><li>Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna</li><li>Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI</li><li>Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors</li><li>Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability</li><li>PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
Gigabyte X870 Aorus Elite WIFI7 ATX AM5 DDR5 Gaming Motherboard Price in Pakistan
| CPU | AMD Socket AM5, support for: |
| - AMD Ryzen™ 9000 Series | |
| - AMD Ryzen™ 8000 Series | |
| - AMD Ryzen™ 7000 Series | |
| (Refer to GIGABYTE website for latest CPU support list.) | |
| Chipset | AMD X870E |
| Memory | - DDR5: 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC) /6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC) /5600(OC)/5200/4800/4400 MT/s |
| - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) | |
| - Dual Channel Architecture | |
| - Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| - Supports AMD EXPO™ & XMP profiles | |
| Onboard Graphics | Integrated Radeon™ Graphics + ASMedia USB4® Controller: |
| - 2 x USB4® Type-C® (DisplayPort, 3840x2160@240 Hz) | |
| - HDMI Port: 4096x2160@60 Hz (HDMI 2.1, HDR, HDCP 2.3) | |
| - Front HDMI: 1920x1080@30 Hz (HDMI 1.4) | |
| Audio | Realtek® ALC1220 CODEC |
| - DSD audio (rear line out) | |
| - 2/4/5.1/7.1-channel HD Audio | |
| - S/PDIF Out supported | |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 |
| - Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), 2.4/5/6GHz | |
| - Bluetooth 5.4 | |
| - 11be 320MHz support | |
| Requires Windows 11 SV3; no driver for Windows 10 | |
| Expansion Slots | CPU: |
| - 1 x PCIe x16 (PCIEX16) → PCIe 5.0 x16 (Ryzen 9000/7000) | |
| - PCIe 4.0 x8 (Ryzen 8000 Phoenix 1) | |
| - PCIe 4.0 x4 (Ryzen 8000 Phoenix 2) | |
| Shared bandwidth with M2B_CPU/M2C_CPU | |
| Chipset: | |
| - 1 x PCIe 4.0 x4 (PCIEX4_1) | |
| - 1 x PCIe 3.0 x4 (PCIEX4_2) | |
| Storage | - 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (type 25110/22110) |
| - 2 x M.2 (M2B_CPU, M2C_CPU): PCIe 5.0 x4/x2 (type 22110/2280) | |
| Unavailable for Ryzen 8000 Series Phoenix CPUs | |
| - 1 x M.2 (M2D_SB): PCIe 4.0 x4/x2 | |
| - 4 x SATA 6Gb/s connectors | |
| RAID: NVMe (0/1/5/10) — RAID 5 only on Ryzen 9000; SATA (0/1/10) | |
| USB | CPU + ASMedia: |
| - 2 x USB4® Type-C® (rear) | |
| CPU: | |
| - 1 x USB 3.2 Gen2 Type-A (rear, red) | |
| Chipset: | |
| - 1 x USB 3.2 Gen2x2 Type-C (internal header) | |
| - 2 x USB 3.2 Gen2 Type-A (rear, red) | |
| - 8 x USB 3.2 Gen1 (4 rear + 4 internal) | |
| - 6 x USB 2.0/1.1 (2 rear + 4 internal) | |
| Internal I/O | - 24-pin ATX main power |
| - 2 x 8-pin ATX 12V power | |
| - 1 x CPU fan | |
| - 1 x CPU fan/pump | |
| - 4 x system fan | |
| - 2 x system fan/pump | |
| - 3 x ARGB Gen2 headers | |
| - 1 x RGB header | |
| - 4 x SATA 6Gb/s | |
| - 4 x M.2 sockets | |
- 1 x front panel / audio / USB-C / TPM / reset / CMOS / power / temperature sensor / noise detection headers | |

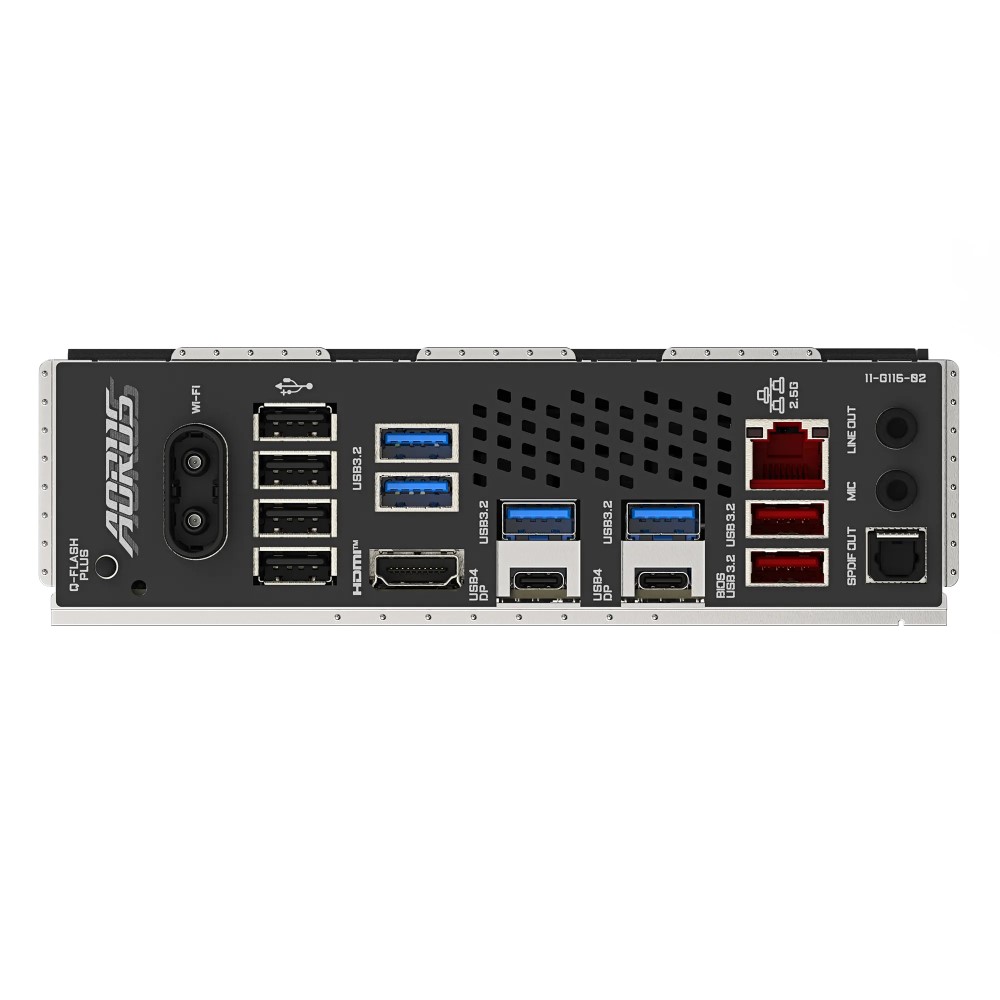

| Back Panel | - Q-Flash Plus button |
| - 2 x USB 2.0 | |
| - 4 x USB 3.2 Gen1 | |
| - 2 x USB4® Type-C® (DP) | |
| - 3 x USB 3.2 Gen2 Type-A (red) | |
| - 1 x HDMI | |
| - 1 x RJ-45 (2.5GbE) | |
| - 2 x antenna connectors | |
| - 1 x Optical S/PDIF Out | |
| - 2 x Audio jacks | |
| I/O Controller | iTE® Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Flow rate, Noise detection, Fan fail warning, Speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - GIGABYTE Control Center (GCC) |
| - Q-Flash, Q-Flash Plus | |
| - Smart Backup |
