GIGABYTE X870E AORUS PRO X3D ICE AM5 AMD X870E ATX Motherboard

Rs. 134,999

<ul><li>X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI</li><li>DDR5 OC up to 9000MT/s</li><li>DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.</li><li>AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors</li><li>Digital twin 18+2+2 phases VRM solution</li><li>Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support</li><li>M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD</li><li>WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation</li><li>M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks</li><li>Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4</li><li>PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.</li><li>Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.</li><li>Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna</li><li>Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W</li><li>PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE X870E AORUS PRO X3D ICE AM5 AMD X870E ATX Motherboard Price in Pakistan

Model
Brand	GIGABYTE
Model	X870E AORUS PRO X3D ICE
Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset	AMD X870E
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Up to DDR5 9000(O.C)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

	2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	* RAID 5 is only available on AMD Ryzen 9000 Series Processors

	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels
Onboard LAN
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Yes

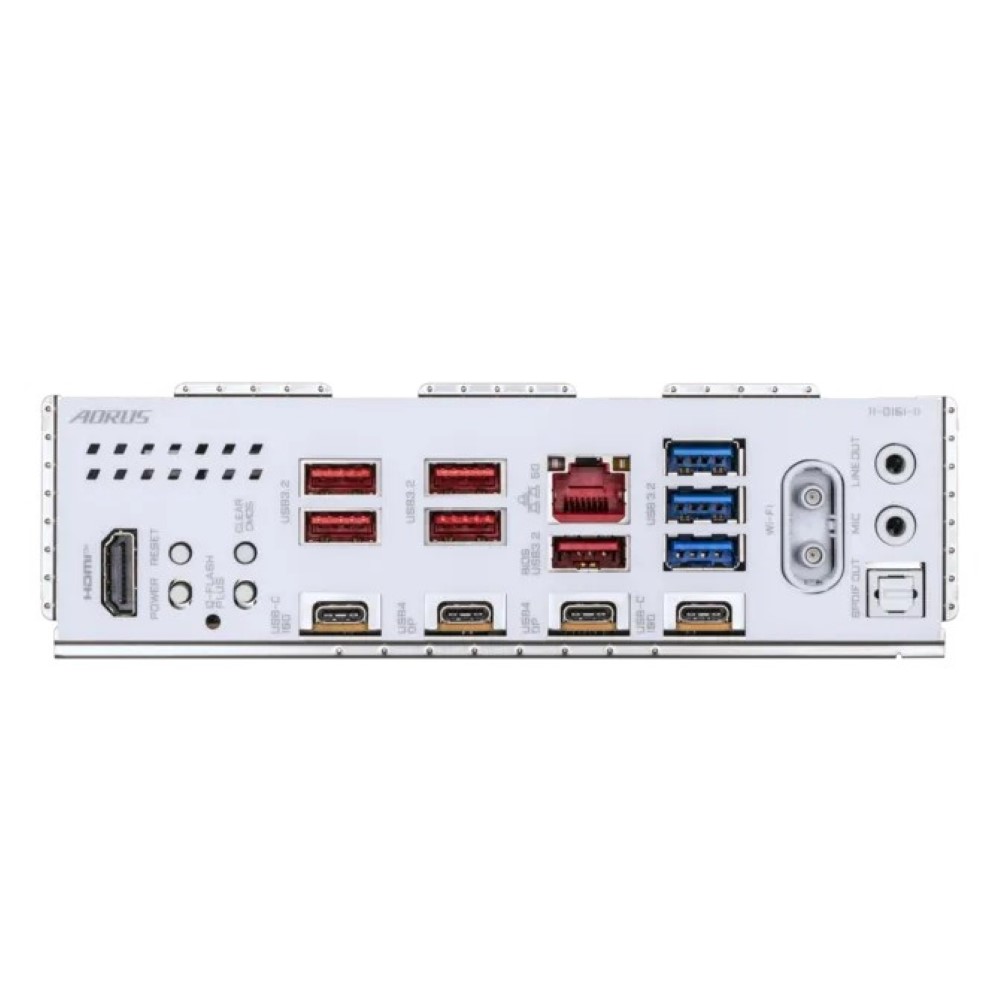

Rear Panel Ports
Back I/O Ports	1 x HDMI port (Note)
	1 x reset button
	1 x power button
	1 x Clear CMOS button
	1 x Q-Flash Plus button
	5 x USB 3.2 Gen 2 Type-A ports (red)
	2 x USB Type-C ports, with USB 3.2 Gen 2 support
	2 x USB4 USB Type-C ports (DisplayPort (Note))
	1 x RJ-45 port
	3 x USB 3.2 Gen 1 ports
	2 x antenna connectors (2T2R)
	2 x audio jacks
	1 x optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support
	2 x USB 3.2 Gen 1 headers
	2 x USB 2.0/1.1 headers
Other Connectors	1 x PCIe power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	4 x system fan headers
	2 x system fan/water cooling pump headers
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x SATA 6Gb/s connectors
	4 x M.2 Socket 3 connectors
	1 x front panel header
	1 x front panel audio header
	1 x noise detection header
	1 x HDMI port (Note)
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
	2 x temperature sensor headers
	1 x reset jumper
	1 x Clear CMOS jumper
Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector
Power Pin	2 x 8-pin ATX 12V power connectors
Software Feature
BIOS Feature	1 x 512 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
