Msi Motherboard:Mag B650 Tomahawk Wif

Rs. 68,799

<ul><li>Supports AMD Ryzen 7000 Series Desktop Processor.</li><li>Supports 4 DIMMs, Dual Channel DDR5: + (OC).</li><li>Premium Thermal Design: Heavy Plated heatsink with heat-pipe / high quality Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.</li><li>LIghtnign Gen4 solution.</li><li>M.2 Shield FROZR: M.2 Thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.</li><li>Wi-Fi 6E: The latest wireless solution suppports 6GHz spectrum, MU_MIMO and BSS color technology, delivering speeds up to 2400Mbps.</li><li>2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.</li><li>Lightning USB 20G: Built-in USB 3.2 Gen 2X2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.</li><li>Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience.</li><li>Memory Boost: Advance technology to deliver pure date signals for the best performance.</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

MSI MAG B650 TOMAHAWK WIFI AM5 AMD B650 SATA 6Gb/s DDR5 Ryzen 7000 ATX Motherboard Price in Pakistan Specs

Model
Brand	MSI
Model	MAG B650 TOMAHAWK WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Desktop Processor

Chipsets
Chipset	AMD B650
South Bridge	Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC)

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Supports non-ECC, un-buffered memory Supports ECC UDIMM memory (non-ECC mode)

Expansion Slots
PCI Express 4.0 x16	2x PCIe x16 slots Supports x16/x2 PCI_E1 slot (From CPU) - Supports up to PCIe 4.0 x16 PCI_E2* (From B650 chipset) - Supports up to PCIe 4.0 x2 * PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.
PCI Express x1	1x PCIe x1 slot PCI_E3 slot (From B650 chipset) - Supports up to PCIe 3.0 x1

Storage Devices
SATA 6Gb/s	6x SATA 6Gb/s ports (From B650 chipset) - SATA_1_2/ SATA_3_4 (From B650 chipset) - SATA_A1_A2 (From ASM1061)
M.2	3 x Key M (PCIe) + 1 x Key E (WiFi/BT) 3x M.2 slots (Key M) M2_1 & M2_2 slot (From CPU) - Supports up to PCIe 4.0 x4 - M2_1 supports 2280/ 22110 storage devices - M2_2 supports 2260/ 2280 storage devices M2_3 slot (From B650 chipset) - Supports up to PCIe 4.0 x4* - Supports 2260/ 2280 storage devices * M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1 & SATA_A2 do not support RAID function.

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1x Realtek 8125B 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E RZ616 - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX - Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands* - Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11.
Bluetooth	Supports Bluetooth 5.2* * Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.

Rear Panel Ports

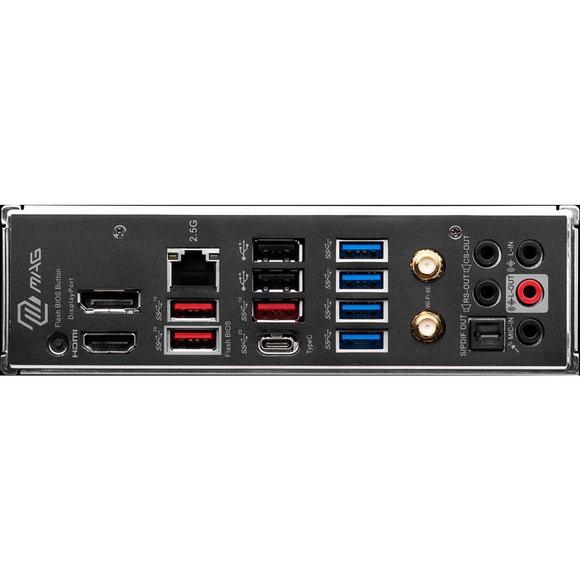

Back I/O Ports	1x Flash BIOS button 1x DP port 1x HDMI port 3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset) 4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset) 2x USB 2.0 Type-A ports (From B650 chipset) 1x LAN (RJ45) jack 2x Wi-Fi Antenna connectors 5x audio jacks 1x Optical S/PDIF Out connector

Internal I/O Connectors
Onboard USB	1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector - Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors - Supports additional 4 USB 2.0 ports
Other Connectors	Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin System fan connectors System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector Jumpers 1x Clear CMOS jumper LED Features 2x 4-pin RGB LED connector 2x 3-pin ARGB_V2 LED connectors 4x EZ Debug LED

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1x 24-pin ATX main power connector 2x 8-pin EPS 12V power connectors

Windows 11 Compatibility
Windows 11	Supported

Features
Features	MSI Center Features - Gaming Mode - Smart Priority - Game Highlights - Mystic Light - Ambient Link - Frozr AI Cooling - User Scenario - True Color - Live Update - Hardware Monitoring - Super Charger - Devices Speed Up - Smart Image Finder - MSI Companion - System Diagnosis Thermal Features - Extended Heatsink Design - M.2 Shield Frozr - K7 MOSFET thermal pad / Extra choke pad - Fan headers (CPU + PUMP + SYSTEM) Performance - Core Boost - VRM Power Design - Dual CPU Power - Memory Boost - Lightning Gen 4 PCI-E / M.2 Slot - Front USB Type-C - Server Grade PCB - 2oz Copper thickened PCB DIY Friendly - PCI-E Steel Armor - Pre-installed I/O Shield - EZ M.2 Clips - EZ DEBUG LED - EZ LED Control - Flash BIOS Button RGB Support - Mystic Light - Mystic Light Extension (RGB) - Mystic Light Extension (ARGB_V2) - Ambient Devices Support BIOS Features - 1x 256 Mb flash - UEFI AMI BIOS - ACPI 6.4, SMBIOS 3.4 - Multi-language
