MSI PRO B550M A PRO

Rs. 27,999

<ul><li>Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors</li><li>Supports DDR4 Memory, up to 4600(OC) MHz</li><li>Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2</li><li>Core Boost: With premium layout and digital power design to support more cores and provide better performance</li><li>DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability</li><li>2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability</li><li>Audio Boost: Reward your ears with studio grade sound quality</li><li>Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface. <span data-cke-marker="1"> </span></li></ul>

100% Genuine

Cash on Delivery

Easy Returns

MSI PRO B550M-A PRO AM4 AMD B550 Micro ATX AMD Motherboard Price in Pakistan Specs

Model
Brand	MSI
Series	PRO
Model	B550M-A PRO

Supported CPU
CPU Socket Type	AM4
CPU Type	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot
PCI Express x1	1 x PCIe 3.0 x1 slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M) (from AMD Processor): Supports PCIe 4.0/3.0 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz12 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16GB 1. Available for the processor with integrated graphics. 2. Graphics specifications may vary depending on the CPU installed.

Onboard Audio
Audio Chipset	Realtek ALC892/ALC897 Codec
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

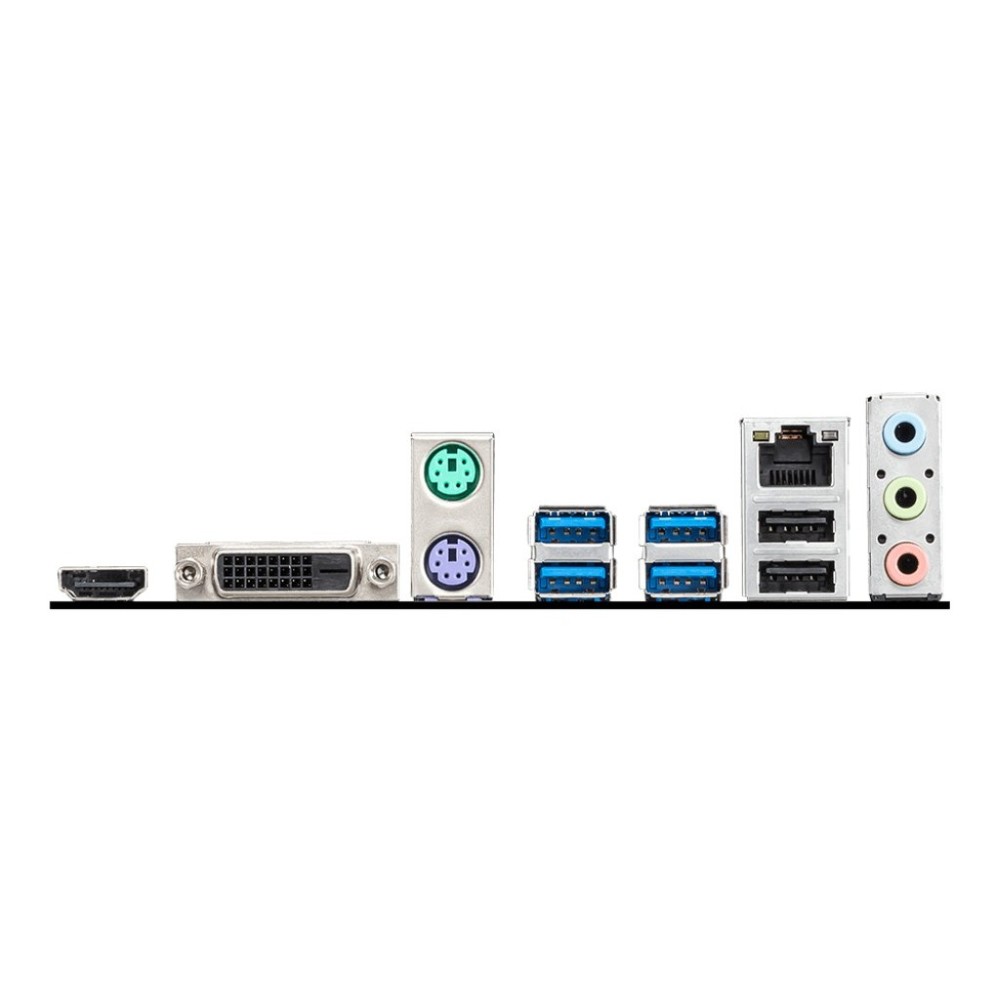

Back I/O Ports	1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	9.3" x 7.9"
Power Pin	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector

Software Feature
Windows 11	Supported

Features
Features	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors Supports DDR4 Memory, up to 4600(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability Audio Boost: Reward your ears with studio grade sound quality Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
