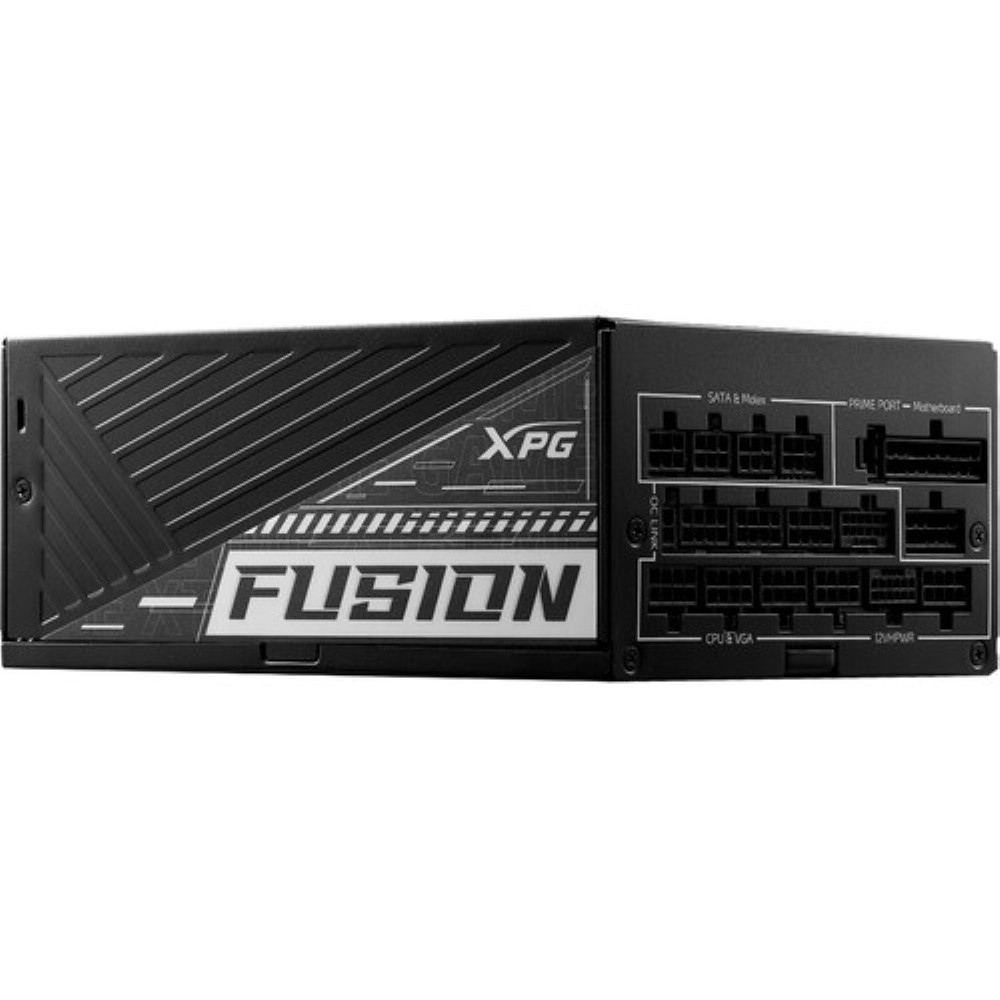

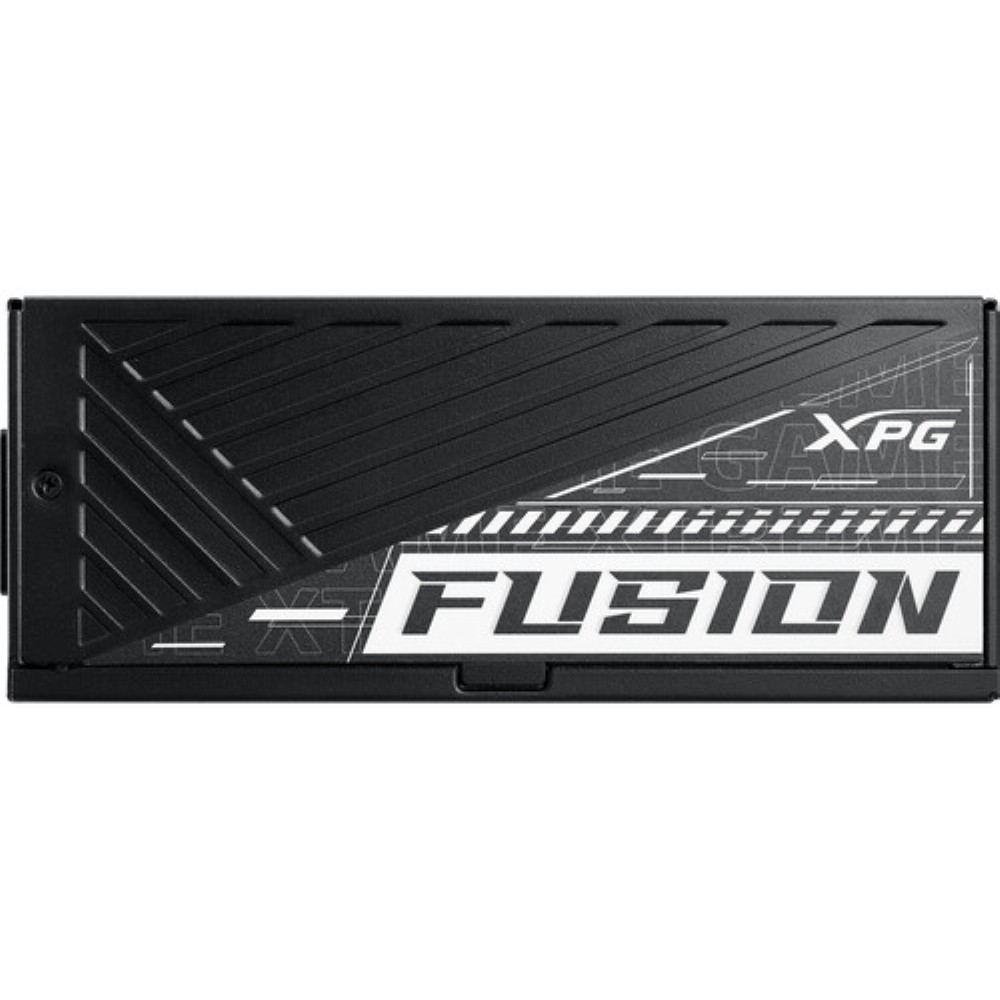

XPG 1600W FUSION 1600 80 Plus TITANIUM Power Supply

Rs. 154,999

<ul class="list_OMS5rN7R1Z">
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">1600W Single +12V Rail</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">135mm Cooling Fan</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Intel ATX12V Version 3.0</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">10 x PCIe 6+2 Pin Connectors</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">12 x SATA Connectors</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">4 x Molex 4-Pin Connectors</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">1 x ATX 24-Pin Connector</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">2 x EPS 8-Pin Connectors</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">2 x 12VHPWR (12 + 4) Connectors</li>
<li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Modular Cables</li>
</ul>

100% Genuine

Cash on Delivery

Easy Returns

XPG 1600W FUSION 1600 80 Plus TITANIUM Power Supply Price in Pakistan

Key Specs

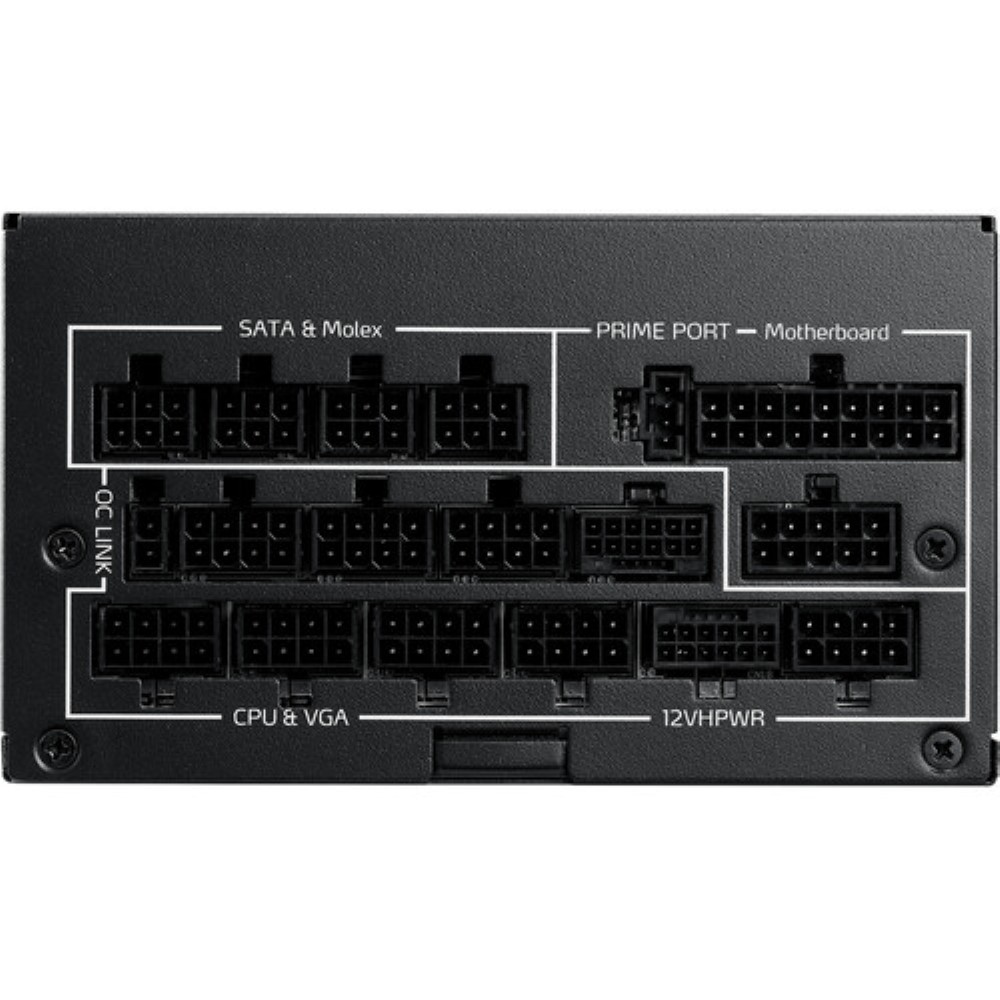

Total Connectors	1x 20+4-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 16-Pin PCIe (12VHPWR) 8x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 2x 4-Pin Floppy 2x Proprietar
Cable Design	Modular
Total Wattage	1600 W
Number of +12 V Rails	6
Efficiency Rating	80 PLUS Titanium
Form Factor	ATX

Connectivity

Total Connectors	1x 20+4-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 16-Pin PCIe (12VHPWR) 8x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 2x 4-Pin Floppy 2x Proprietary
Cable Design	Modular
PCIe Connector Distances	25.6" / 650 mm 31.5" / 800 mm
SATA Connector Distances	21.7" / 550 mm 27.6" / 700 mm 33.5" / 850 mm 39.4" / 1000 mm
Peripheral Connector Distances	21.7" / 550 mm 27.6" / 700 mm 33.5" / 850 mm 39.4" / 1000 mm
Floppy Connector Distances	5.9" / 150 mm
ATX Connector Distance	25.6" / 650 mm
EPS Connector Distances	29.5" / 750 mm

Electrical

Total Wattage	1600 W
Number of +12 V Rails	6
Combined Power for +12 V	1600 W
Max Load for +12 V	50 A (Per Rail)
Combined Power for +3.3/+5 V	120 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	17.5 W
Max Load for +5 Vsb	3.5 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz at 8 to 15 A

General

Efficiency Rating	80 PLUS Titanium
Active Power Factor Correction	Yes
Efficiency	92% at 20% Load 94% at 50% Load 90% at 100% Load

Cooling

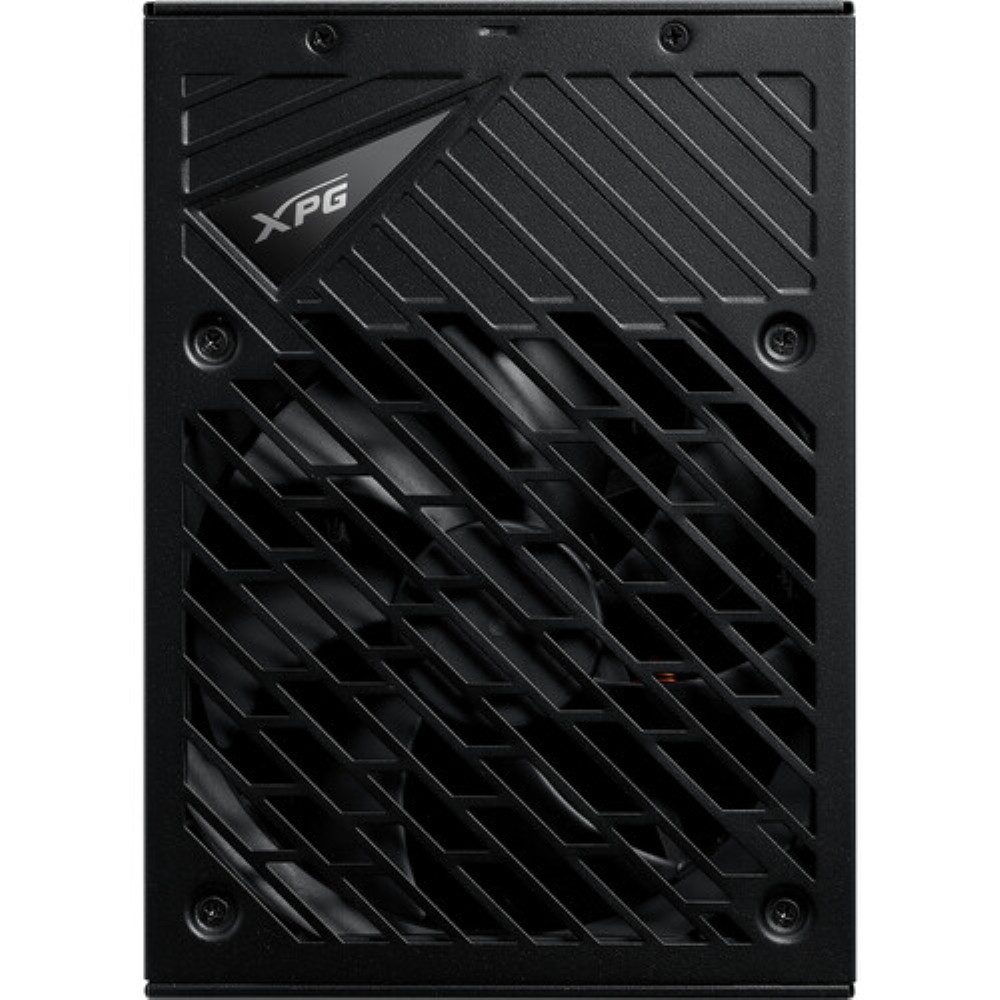

Fan Size	135 mm
Bearing Type	Ball

Physical

Form Factor	ATX
Compliance	ATX 12 V v3.0
Protection	No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection
Certifications	CB, CE, FCC, NOM, RoHS, TUV, UKCA
Dimensions	8.3 x 5.9 x 3.4" / 210 x 150 x 86 mm

Packaging Info

Package Weight	11.77 lb
Box Dimensions (LxWxH)	16.3 x 9.7 x 5.6"
