Motherboard / Chipset
In Stock

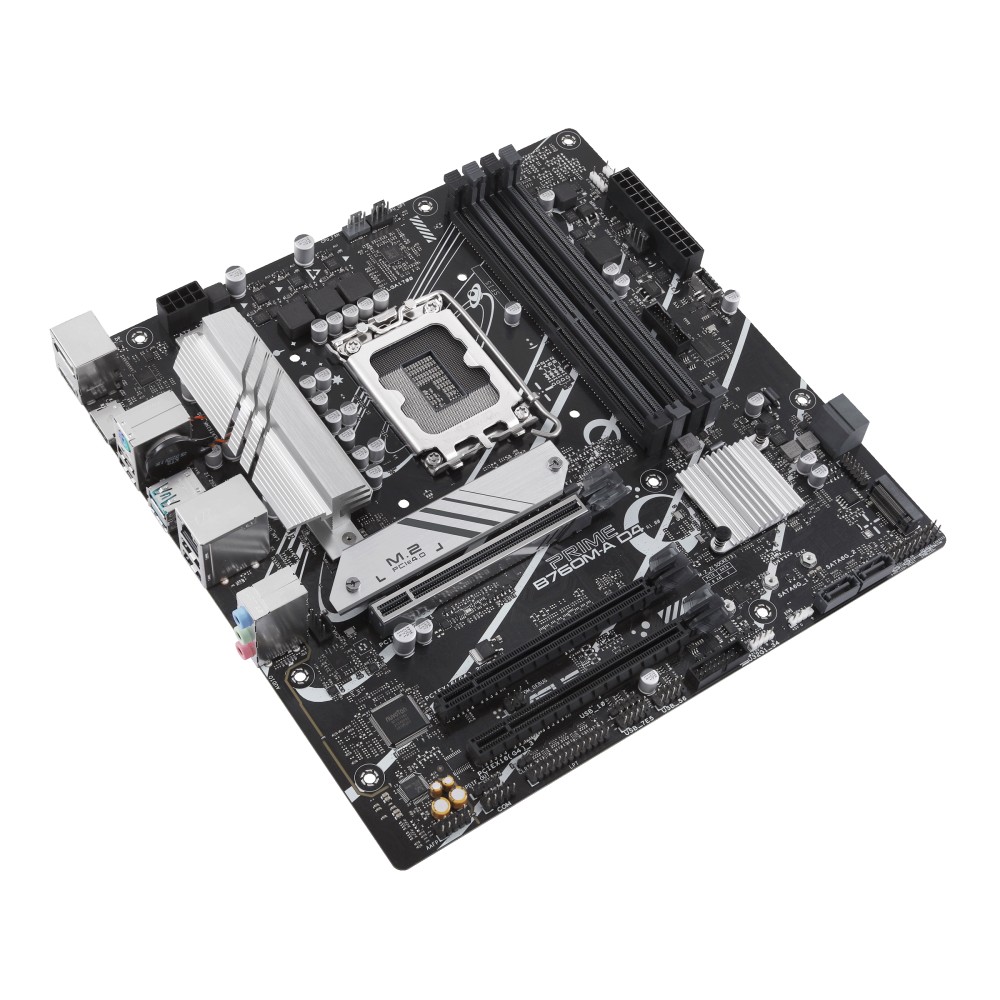

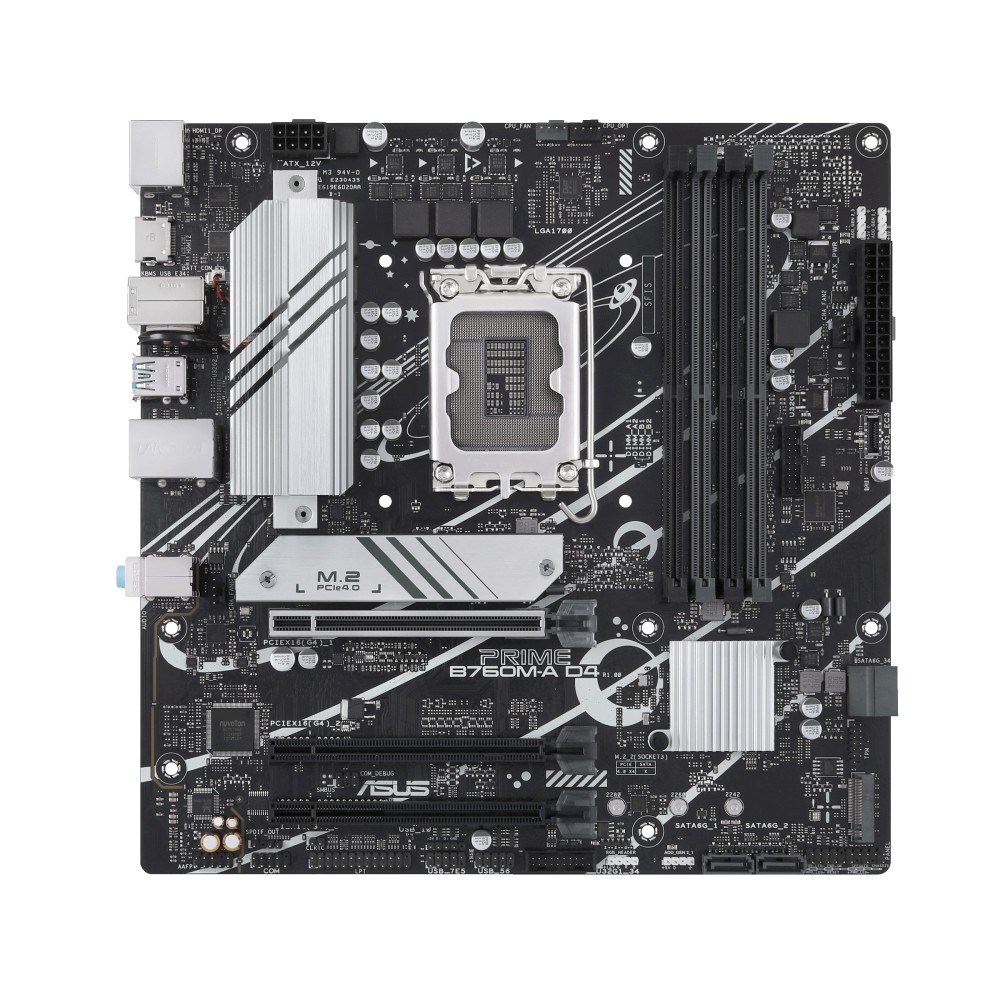

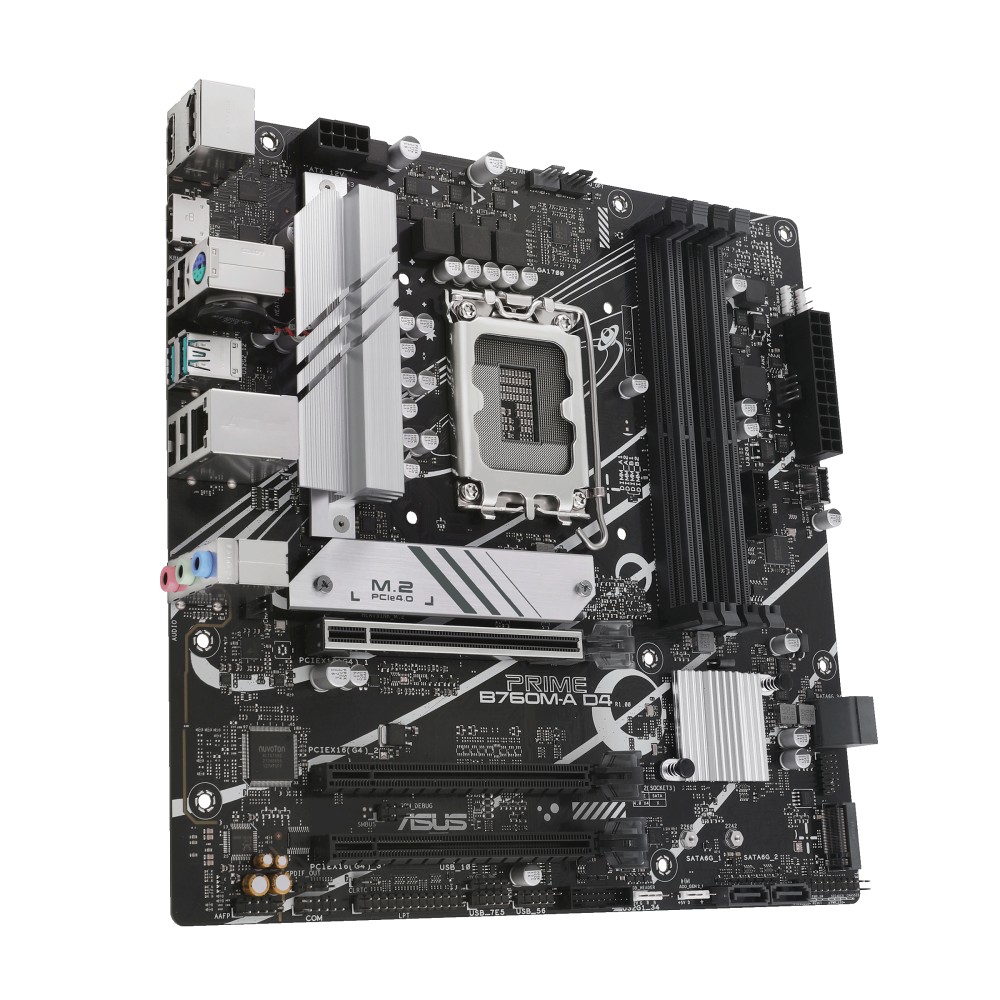

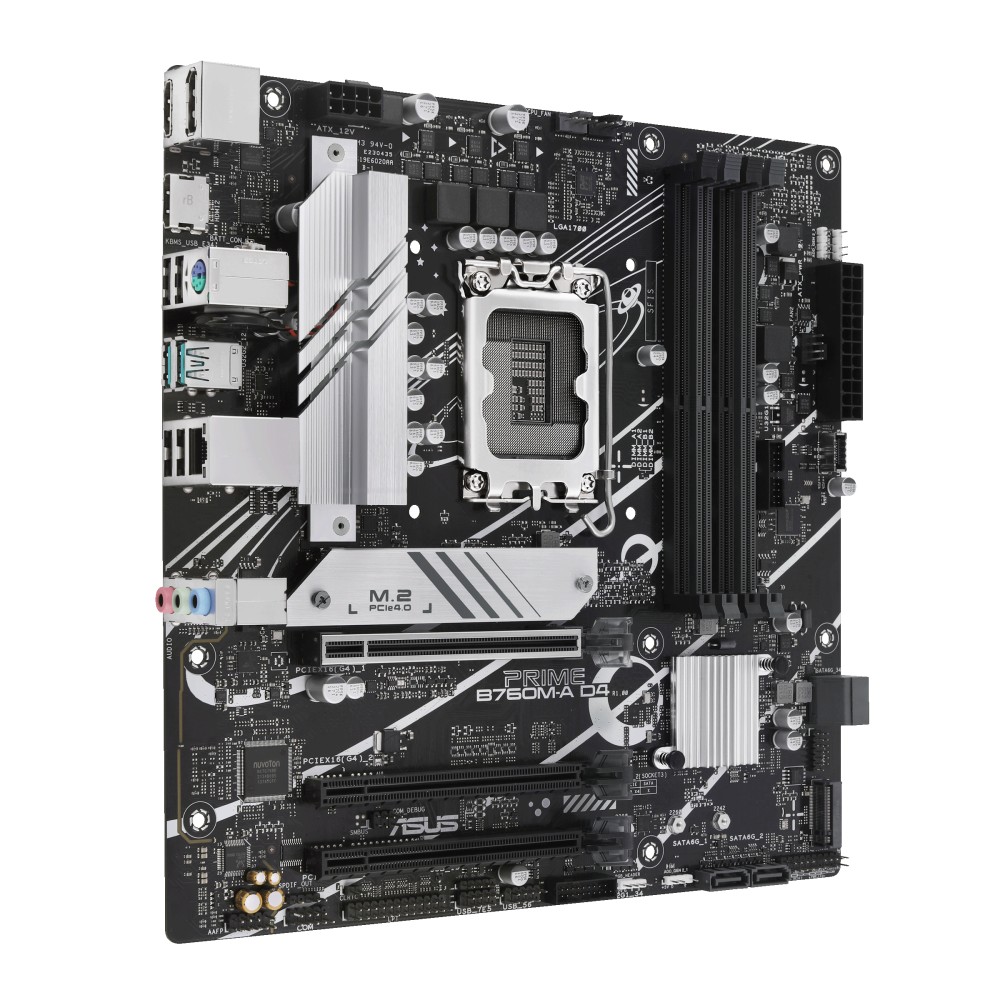

Asus Motherboard : Prime B760M-A D4 INTEL LGA1700
Rs. 34,700
<div class="KvSummary__productHeadiing__UPRDo KvSummary__themeWhite__21KI0">Intel<sup>®</sup> B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup>, Aura Sync</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li>Intel<sup>®</sup> LGA 1700 Socket: Ready for 13<sup>th</sup> and 12<sup>th</sup> Gen Intel<sup>®</sup> processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup></li>
<li>Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+</li>
<li>Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
</ul>
</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li>Intel<sup>®</sup> LGA 1700 Socket: Ready for 13<sup>th</sup> and 12<sup>th</sup> Gen Intel<sup>®</sup> processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup></li>
<li>Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+</li>
<li>Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
</ul>
</div>
100% Genuine
Cash on Delivery
Easy Returns
ASUS PRIME B760M-A DDR4 LGA 1700 Micro-ATX Motherboard Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync Price in Pakistan
CPU
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB | 2 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1.4 Output 2 x HDMI 2.1 Output |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Realtek 2.5Gigabit |
| PS/2 | 1 x Combo |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x SATA III |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| USB | 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) 1 x 2.0 Header (Supports 1 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 2 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 4 x RGB |
| Audio | 1 x S/PDIF |
| Diagnostics | Clear CMOS |
Audio
| Audio Codec | Realtek (7.1-Channel) |
| DAC | None |
Wireless
| Bluetooth | None |
Software
| OS Compatibility | Windows 10 to 11 (64-Bit Only) *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | Micro-ATX |
| Dimensions | 9.6 x 9.6" / 24.4 x 24.4 cm |
Packaging Info
| Package Weight | 2.36 lb |
| Box Dimensions (LxWxH) | 10.5 x 10.4 x 2" |
Wide Range of Motherboard / Chipset Asus, MSI, Gigabyte, Palit GameRock, Palit GamingPro , PNY, Asus ROG, Asus Tuf, Asus Cerberus, Colorful, XFX, Zotac, Sapphire, Motherboard and Chipset Price in Pakistan, Best Deals Price in Pakistan, ALL GPU and Graphics Cards Best Lowest Price, Rates in Pakistan, Karachi, Lahore, Islamabad, Multan, Peshawar. ASUS ROG STRIX B550-XE GAMING (WIFI) AMD B550 Ryzen AM4 ATX Gaming Motherboard ASUS ROG STRIX B460-H GAMING LGA 1200 ATX Motherboard
Standard nationwide shipping delivers within 2–4 business days depending on destination city across Pakistan. Orders placed before 3:00 PM are processed same-day.
Related Products

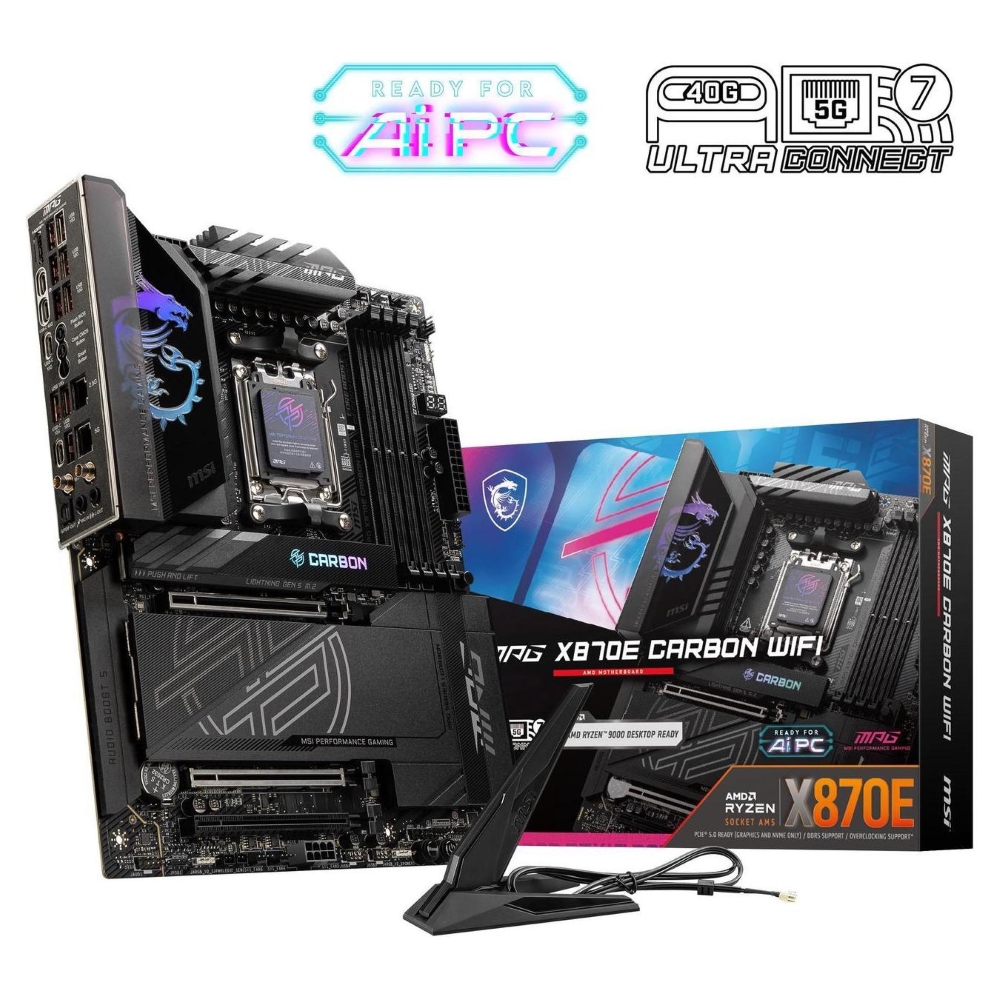

Msi Motherboard:Mpg X870E Carbon
Rs. 144,999
View

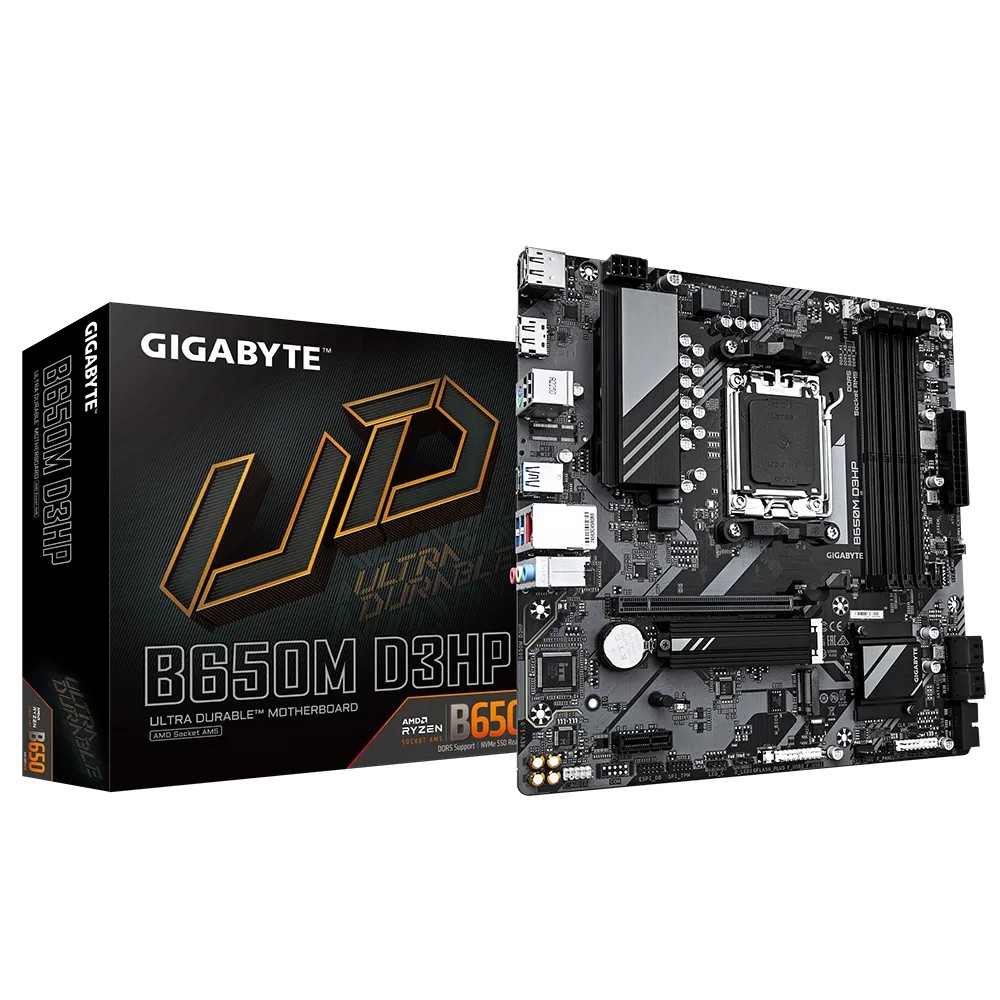

Gigabyte Motherboard:B650M D3Hp Ax
