Motherboard / Chipset
In Stock

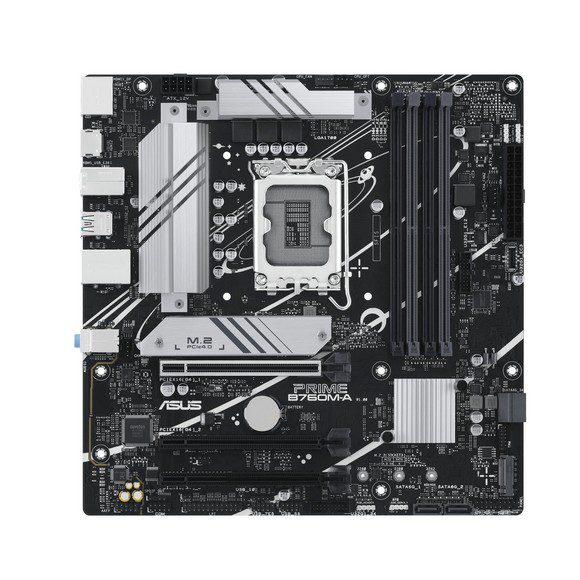

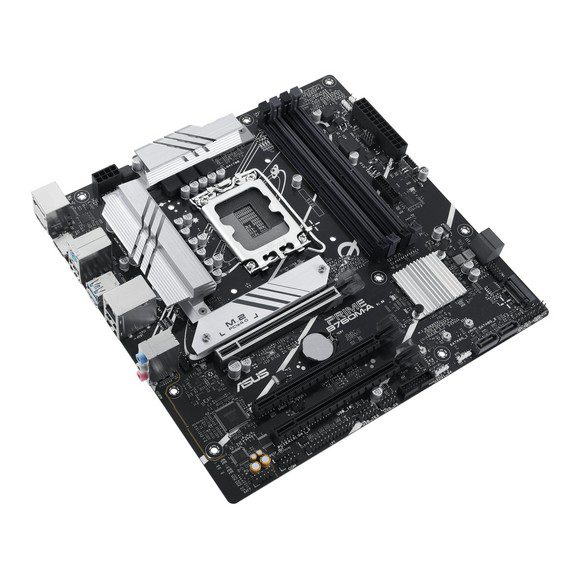

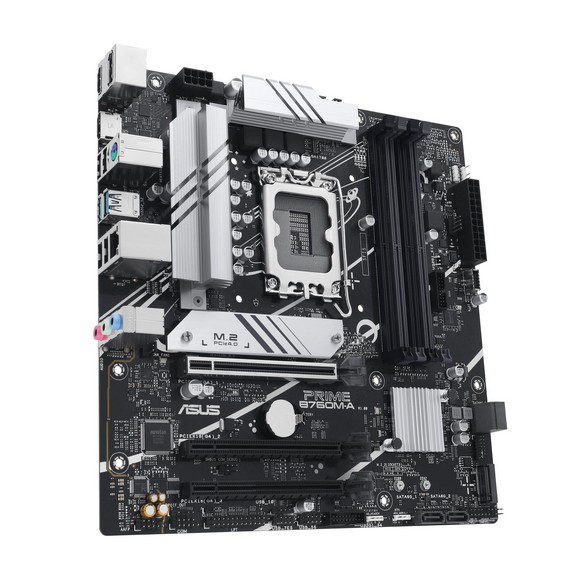

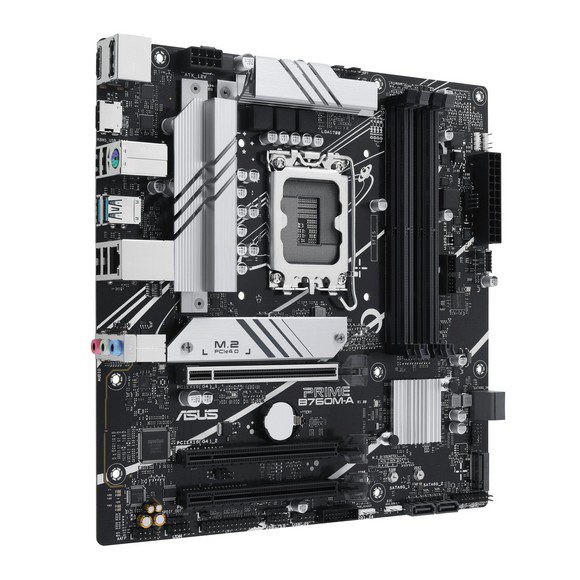

Asus Motherboard : Prime B760M-A D5 INTEL LGA1700
Rs. 35,199
<div class="KvSummary__productHeadiing__UPRDo KvSummary__themeWhite__21KI0">Intel<sup>®</sup> B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup>, Aura Sync</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li>Intel<sup>®</sup> LGA 1700 Socket: Ready for 13<sup>th</sup> and 12<sup>th</sup> Gen Intel<sup>®</sup> processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup></li>
<li>Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+</li>
<li>Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
</ul>
</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li>Intel<sup>®</sup> LGA 1700 Socket: Ready for 13<sup>th</sup> and 12<sup>th</sup> Gen Intel<sup>®</sup> processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C<sup>®</sup></li>
<li>Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+</li>
<li>Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
</ul>
</div>
100% Genuine
Cash on Delivery
Easy Returns
ASUS PRIME B760M-A LGA 1700 Micro-ATX Motherboard Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura SyncPrice in Pakistan
CPU
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB | 2 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1.4 Output 2 x HDMI 2.1 Output |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Realtek 2.5Gigabit |
| PS/2 | 1 x Combo |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x SATA III |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| USB | 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) 1 x 2.0 Header (Supports 1 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 2 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 4 x RGB |
| Audio | 1 x S/PDIF |
| Diagnostics | Clear CMOS |
Audio
| Audio Codec | Realtek (7.1-Channel) |
| DAC | None |
Wireless
| Bluetooth | None |
Software
| OS Compatibility | Windows 10 to 11 (64-Bit Only) *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | Micro-ATX |
| Dimensions | 9.6 x 9.6" / 24.4 x 24.4 cm |
Packaging Info
| Package Weight | 2.36 lb |
| Box Dimensions (LxWxH) | 10.5 x 10.4 x 2" |
Standard nationwide shipping delivers within 2–4 business days depending on destination city across Pakistan. Orders placed before 3:00 PM are processed same-day.
