Asus Motherboard:B760-A Rog Strix

Rs. 76,500

<ul>
<li>Intel LGA 1700 Socket: Ready for 13th Gen Intel® Core, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors</li>
<li>Robust Power Solution: 12 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors</li>
<li>Optimized VRM Thermals: Thick heatsinks bridged to the power stages with high-conductivity thermal pads keep the solution cool during heavy workloads</li>
<li>High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard</li>
<li>Abundant Connectivity: DDR5, USB 3.2 Gen 2x2 Type-C® rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4</li>
<li>Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance</li>
<li>DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack button, and Q-LED</li>
</ul>

100% Genuine

Cash on Delivery

Easy Returns

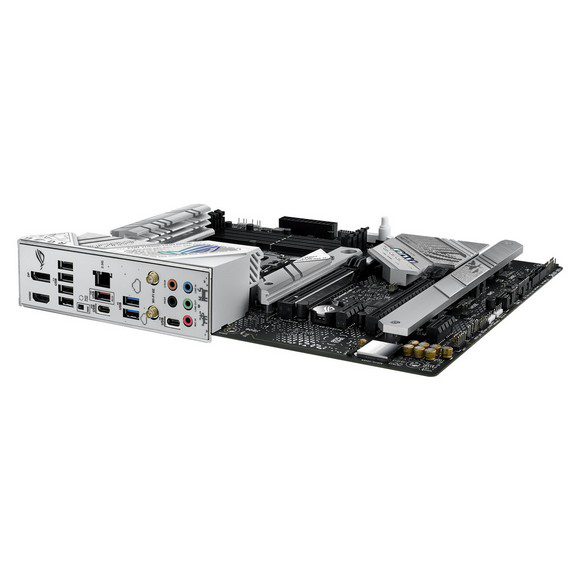

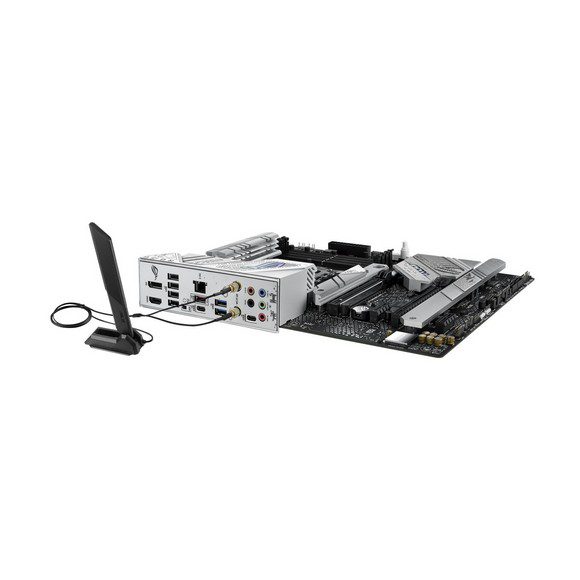

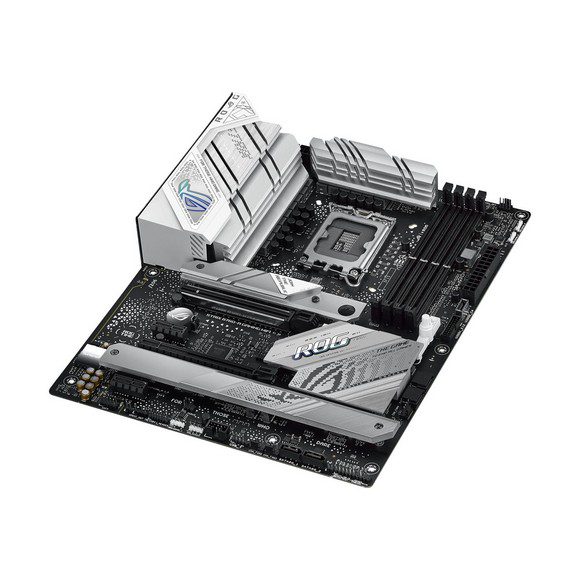

ASUS ROG Strix B760-A Gaming WiFi Intel B760 (13th and 12th Gen) LGA 1700 white ATX motherboard, 12 + 1 power stages, DDR5, PCIe 5.0,three M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB Gaming Motherboard Price in Pakistan

Model
Brand	ASUS
Series	ROG
Model	ROG STRIX B760-A GAMING WIFI
Part Number	90MB1EP0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel Core, Pentium® Gold and Celeron Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 3.0 x16	1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3 x M.2 (Support PCIe 4.0 x4)
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover

Onboard LAN
Max LAN Speed	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Yes

Rear Panel Ports

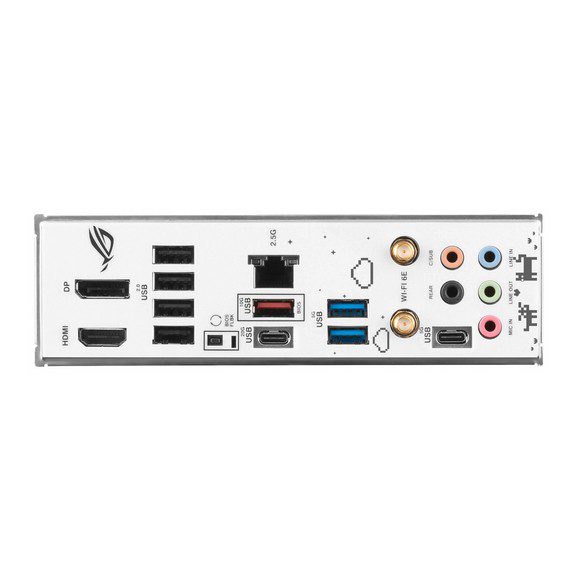

Back I/O Ports	1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Internal I/O Connectors
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Windows Compatibility
Windows 11	Windows® 11, Windows® 10 64-bit

Features
Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Packaging

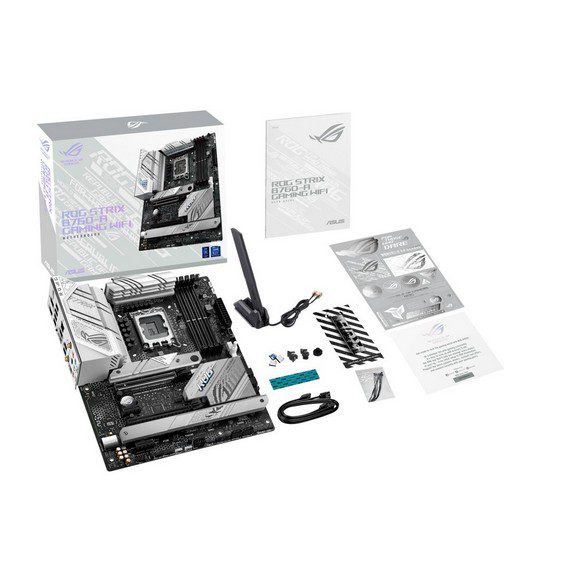

Package Contents	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages Documentation 1 x User guide
