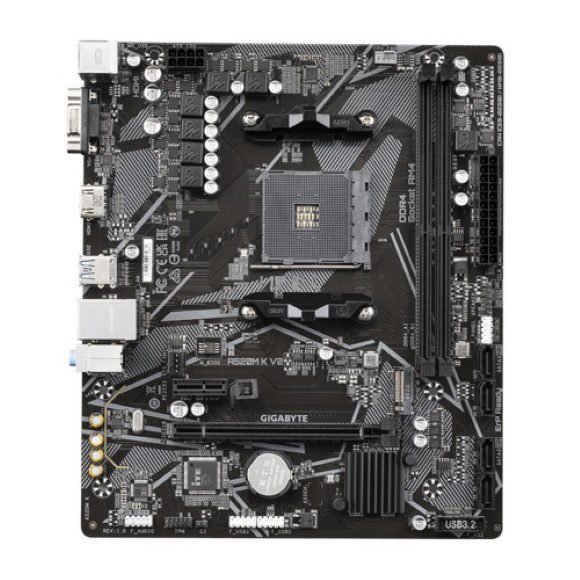

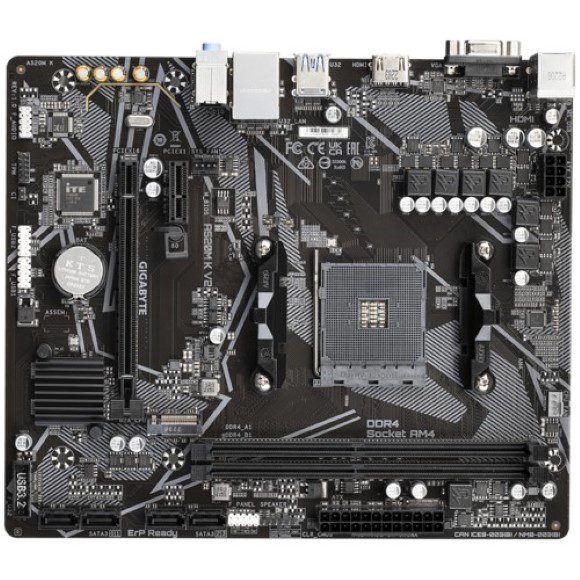

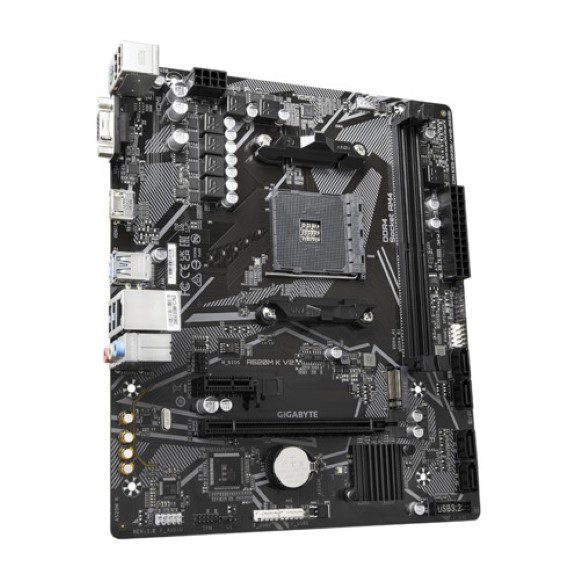

Gigabyte A520M K V2 AMD A520 Ultra Durable Motherboard

Rs. 23,000

<div>AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design</div><ul><li>Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors</li><li>Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs</li><li>PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support</li><li>GbE LAN with Bandwidth Management</li><li>8-Channel HD Audio with High Quality Audio Capacitors</li><li>Rear HDMI and D-sub for Multi-display Support</li><li>Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li><li>GIGABYTE APP Center, Simple and Easy Use</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

Gigabyte A520M K V2 AMD A520 Ultra Durable Motherboard Price in Pakistan

CPU	1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
CPU	(Please refer "CPU Support List" for more information.)
Chipset	1. AMD A520
Memory	1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor:
	1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Maximum shared memory of 16 GB
Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Chipset:
	1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
	Chipset:
	1. 4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	CPU:
	1. 4 x USB 3.2 Gen 1 ports on the back panel
	Chipset:
	1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
	2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x system fan header
	5. 1 x M.2 Socket 3 connector
	6. 4 x SATA 6Gb/s connectors
	7. 1 x front panel header
	8. 1 x front panel audio header
	9. 1 x USB 3.2 Gen 1 header
	10. 2 x USB 2.0/1.1 headers
	11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	12. 1 x speaker header
	13. 1 x Clear CMOS jumper
	14. 1 x chassis intrusion header

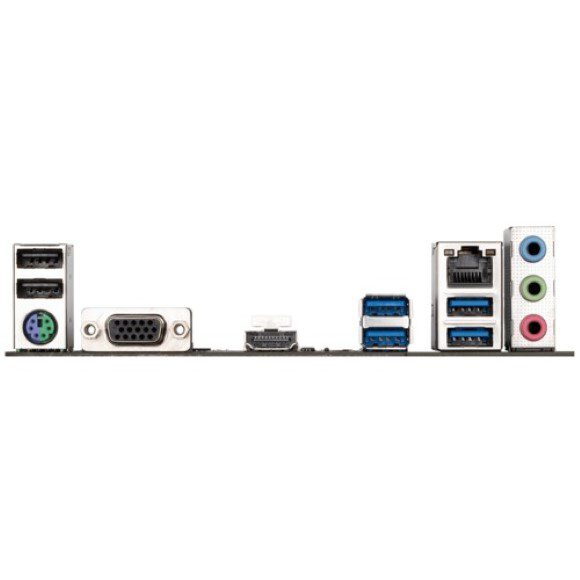

Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x D-Sub port
	3. 1 x HDMI port
	4. 4 x USB 3.2 Gen 1 ports
	5. 2 x USB 2.0/1.1 ports
	6. 1 x RJ-45 port
	7. 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Fan fail warning
	5. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash
	3. Support for Xpress Install
Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 23.3cm x 19.8cm
Remark	1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark	2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
