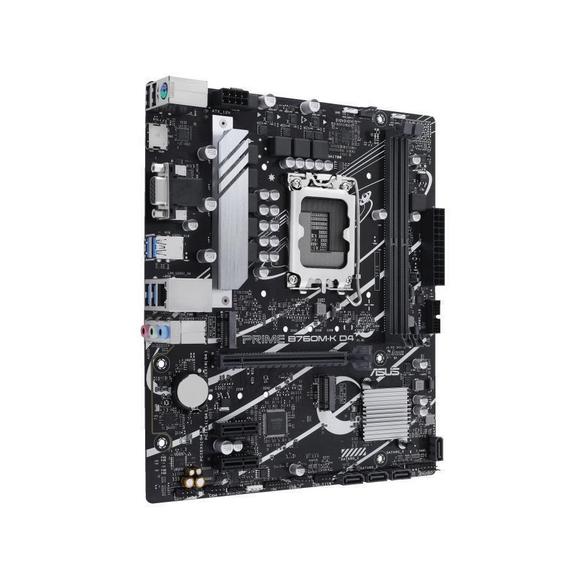

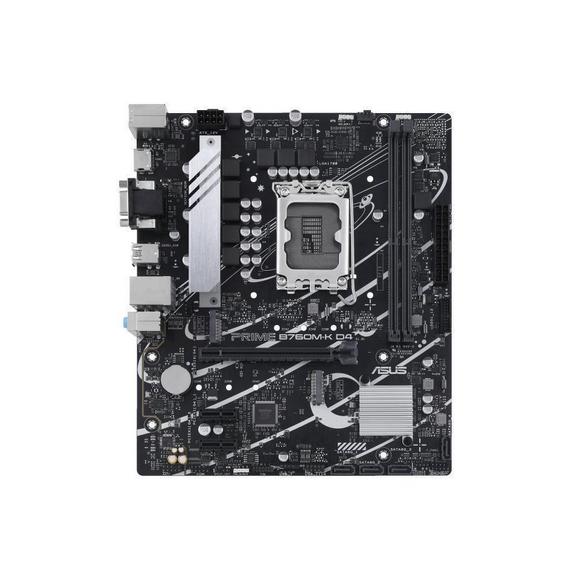

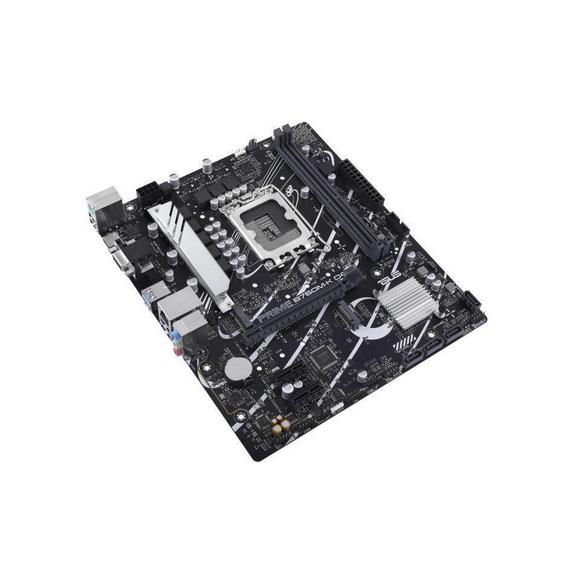

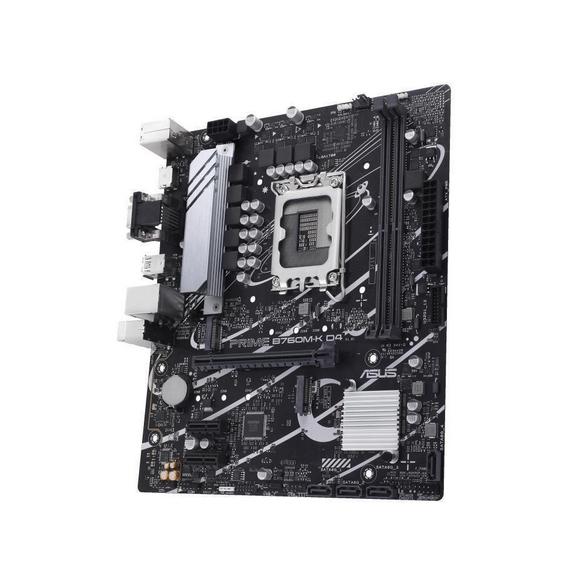

Asus Motherboard:Prime B760M-K D4
Rs. 29,199
<p class="product-title">Prime B760M-K D4, LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync</p>
<ul>
<li>Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support</li>
<li>Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
<li>ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.</li>
</ul>
<ul>
<li>Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors</li>
<li>Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support</li>
<li>Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
<li>ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.</li>
</ul>
100% Genuine
Cash on Delivery
Easy Returns
ASUS Prime B760M-K D4, LGA 1700 mATX Motherboard Price in Pakistan
| Brand | ASUS |
|---|---|
| Model | PRIME B760M-K D4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Feature | DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express 4.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
|---|
| Back I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.3" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|---|
| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide |
|---|
