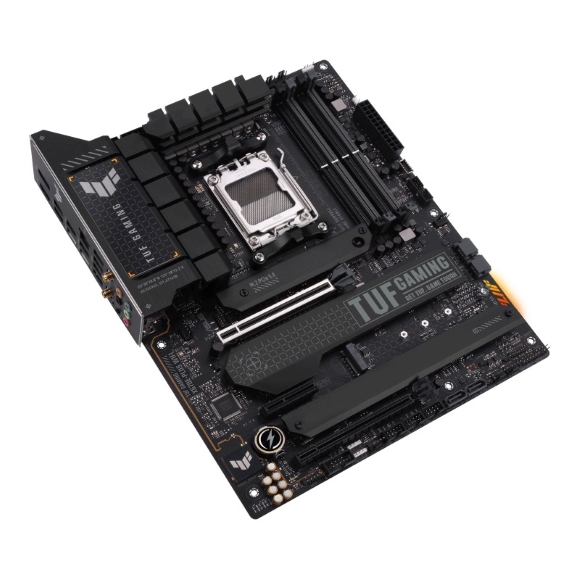

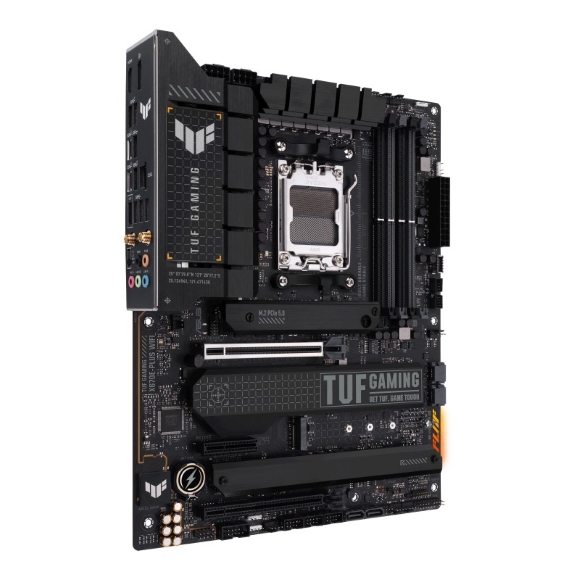

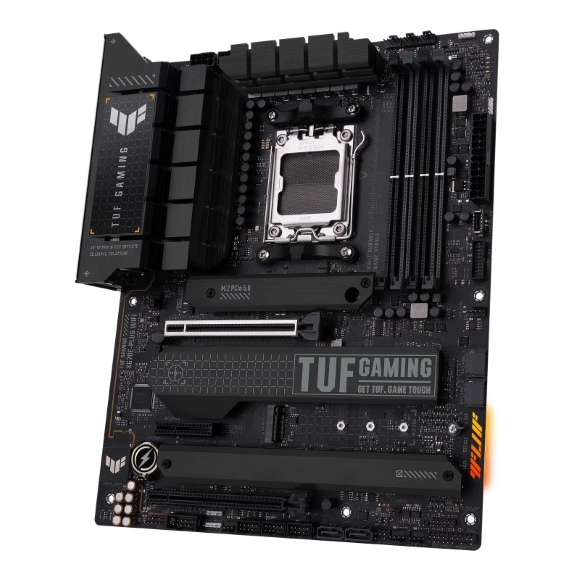

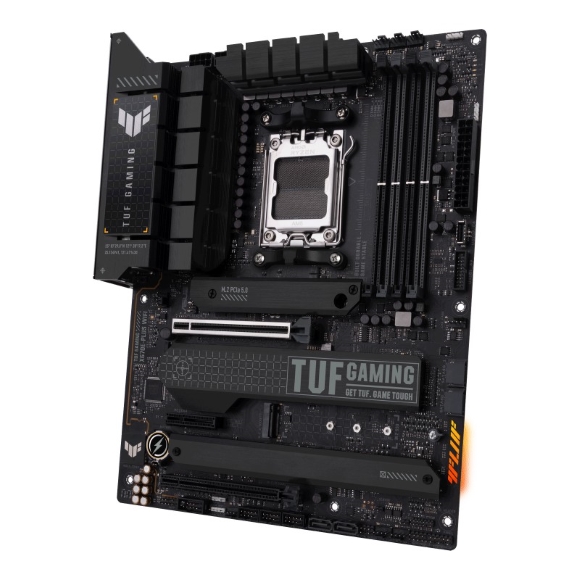

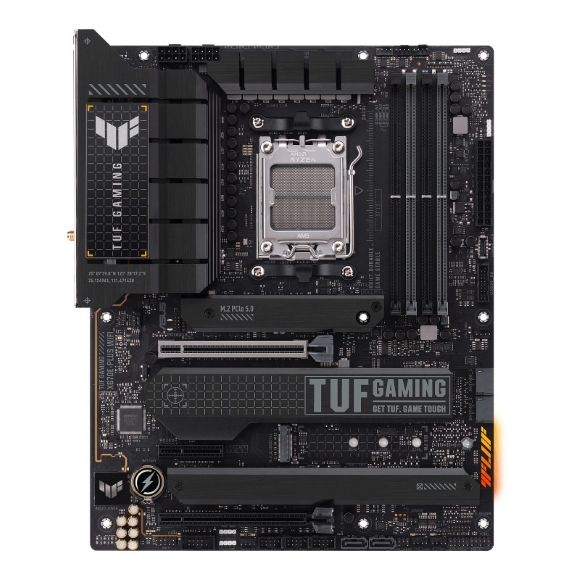

Asus Motherboard:Tuf Gaming X670E-Plus Wifi

Rs. 97,299

ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system,
<ul>
<li>AM5 Socket: Ready for AMD Ryzen Desktop 9000*, 8000*, and 7000 Series Processors</li>
<li>*BIOS Update maybe required when used with AMD Ryzen Desktop 9000 and 8000 Series CPU Processors</li>
<li>Enhanced power solution: 14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery</li>
<li>Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) header support</li>
<li>Made for online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and TUF LANGuard</li>
<li>Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences</li>
<li>Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate</li>
<li>Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support</li>
<li>BIOS FlashBack is the simplest and safest (UEFI) BIOS update method</li>
<li>1 Year Warranty</li>
</ul>

100% Genuine

Cash on Delivery

Easy Returns

ASUS TUF GAMING X670E-PLUS WIFI AMD X670 AM5 Ryzen Desktop 9000 8000 & 7000 ATX Motherboard Price in Pakistan Specs


Best Seller Ranking	#40 in AMD Motherboards

Model
Brand	ASUS
Series	TUF
Model	TUF GAMING X670E-PLUS WIFI
Part Number	90MB1BK0-M0AAY0

Supported CPU
CPU Socket Type	AM5
CPU Type	AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD X670E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II

Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot(s) * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4	1 x PCIe 4.0 x4 slots

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. * M.2_2 slot shares bandwidth with SATA_1&2. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled.
SATA RAID	0/1/10

Onboard Audio
Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1 x Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Bluetooth	Bluetooth v5.2

Rear Panel Ports

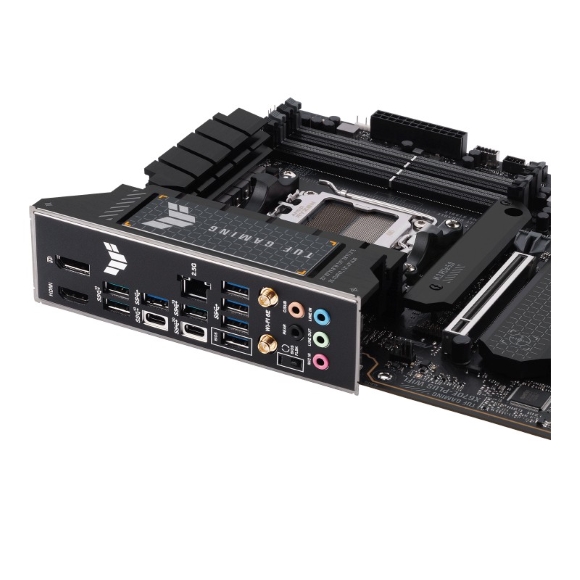

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 port(s) (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 port(s) (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header(s) Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors

Windows 11 Compatibility
Windows 11	Supported

Features
Features	TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers BIOS - 256 Mb Flash ROM, UEFI AMI BIOS

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Installation Media 1 x Support DVD Documentation 1 x TUF certification card 1 x User guide
