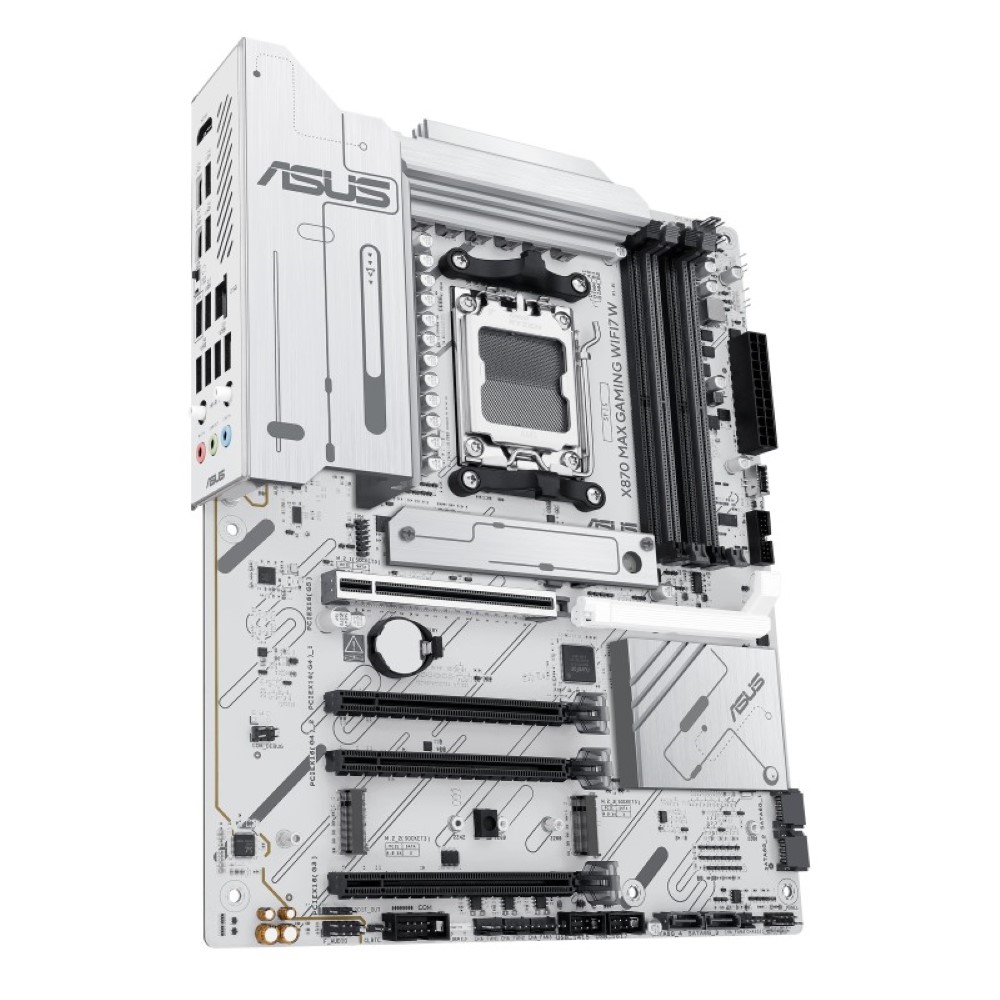

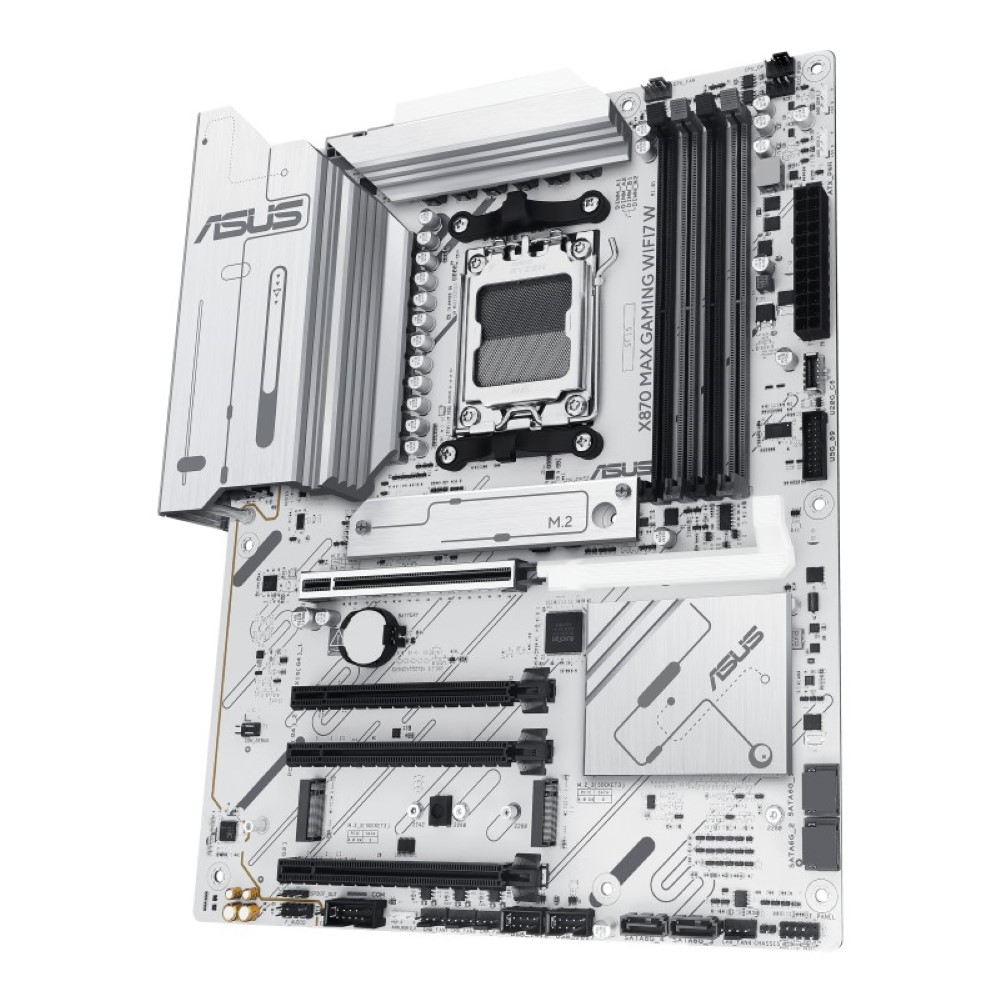

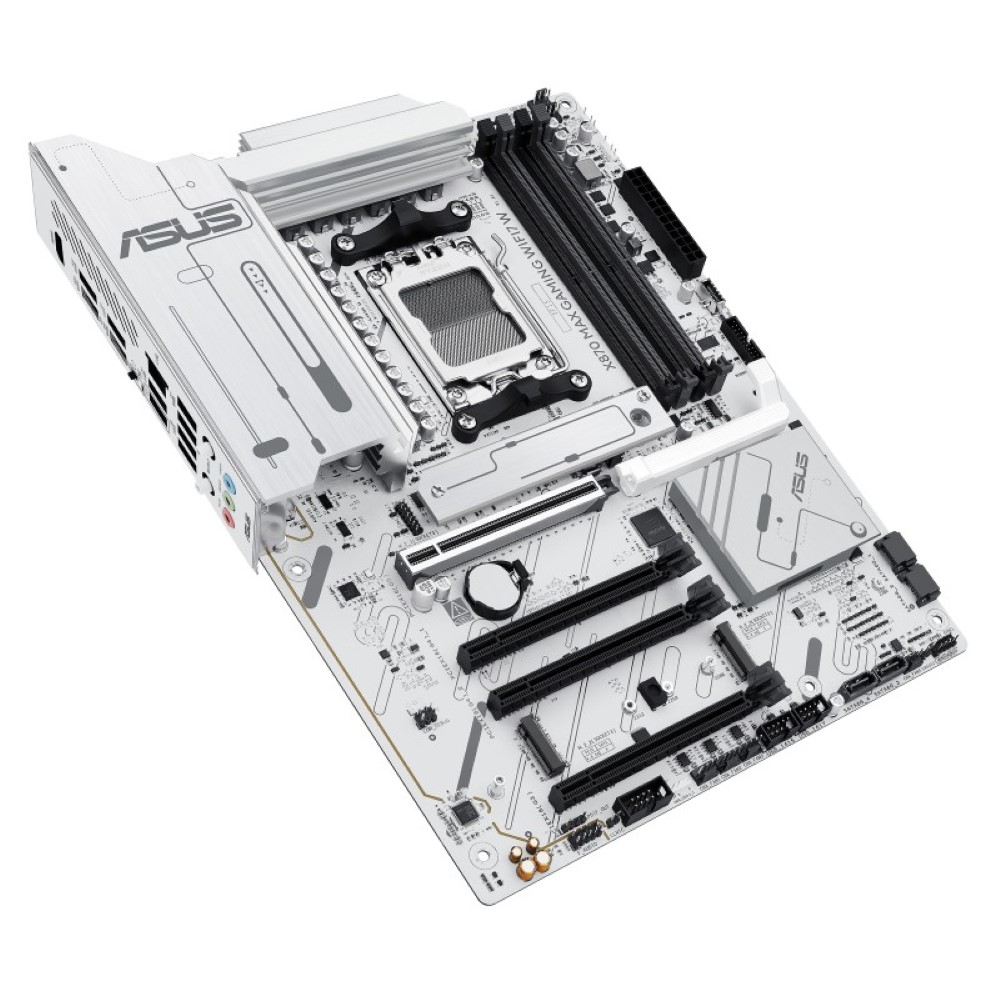

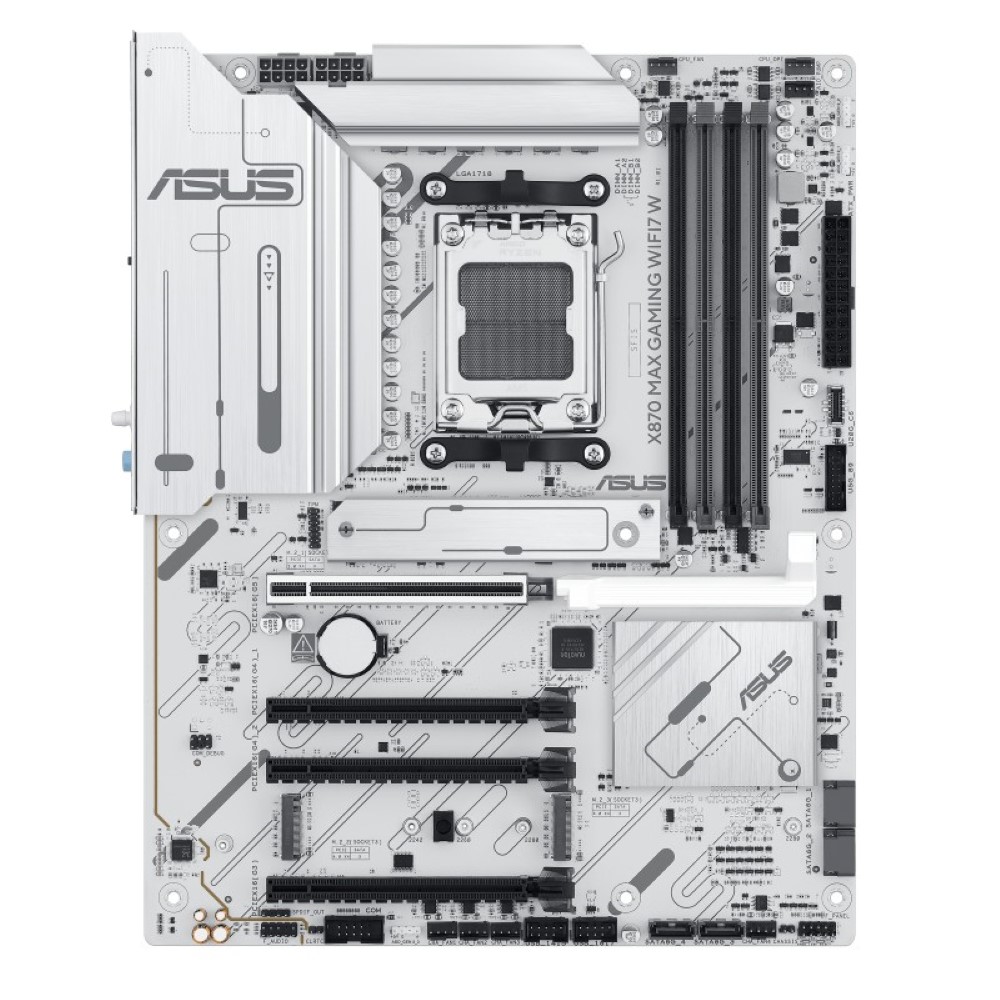

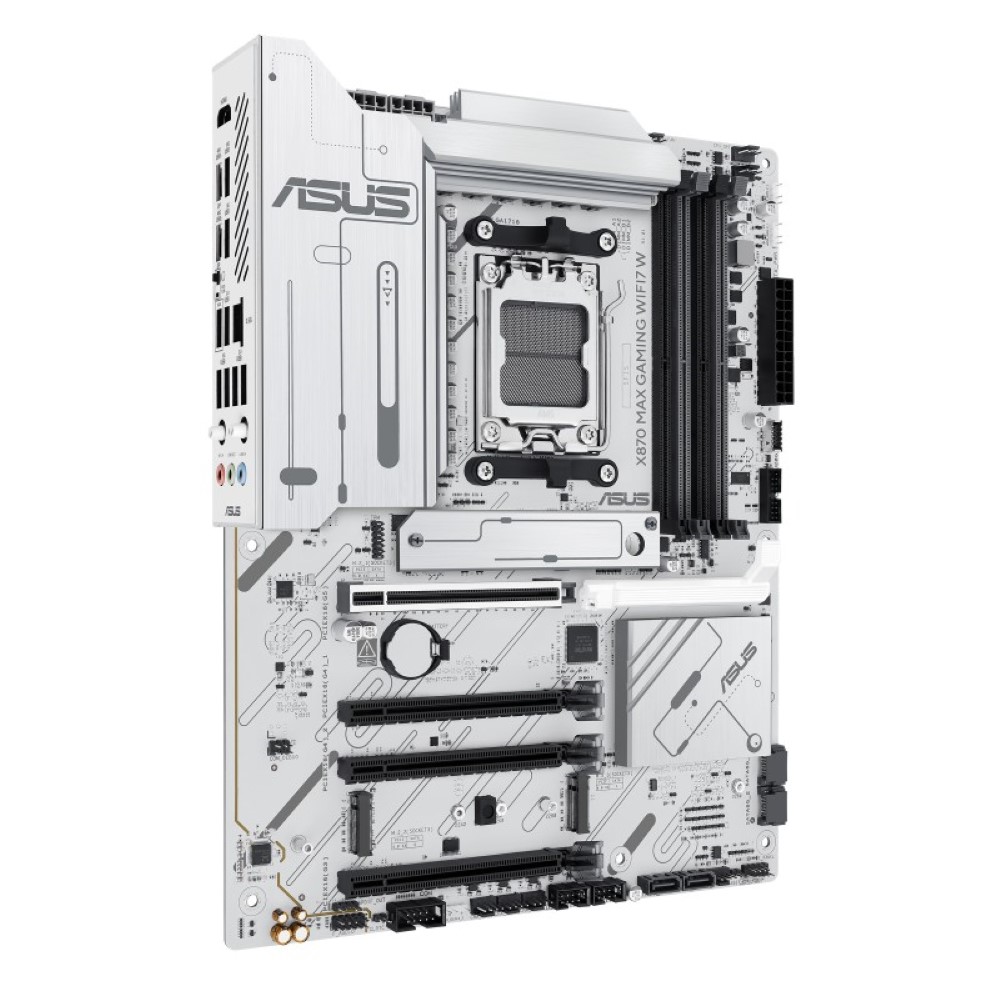

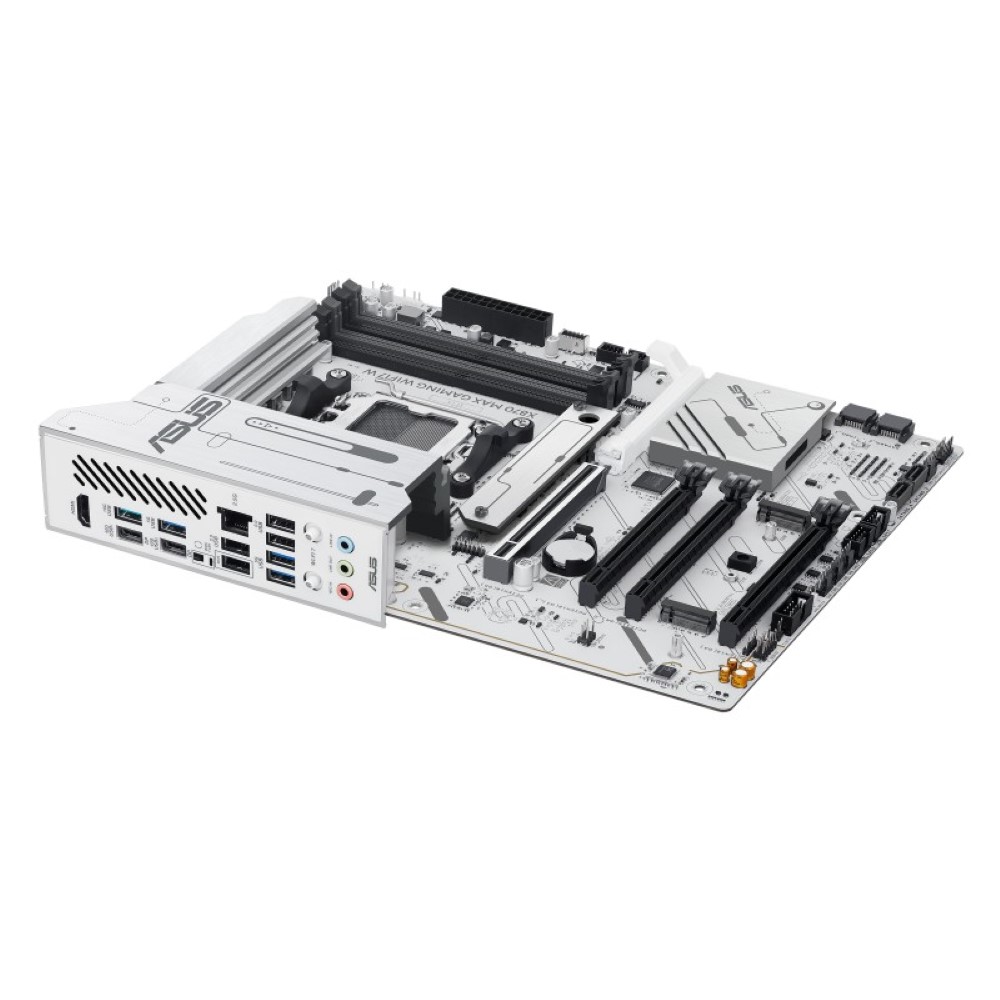

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard AMD X870 Chipset 4x DDR5 DIMM Slots Up to 256GB Max Memory 1x PCIe 5.0 x16 3x M.2 Slots Wi-Fi 7 & Bluetooth v5.4 White
Rs. 97,000
<ul class=""><li>12(80A) + 2(80A) + 1(80A) power stages with enlarged VRM heatsinks</li><li>AI Solutions for advanced AI capabilities</li><li>AEMP for enhanced DDR5 performance</li><li>WiFi 7 for stable WiFi connection and lower latency</li><li>USB 40Gbps Type-C® for the latest super-speed devices and drives</li><li>PCIe 5.0 slots for graphics card and storage</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset 4x DDR5 DIMM Slots Up to 256GB Max Memory 1x PCIe 5.0 x16 3x M.2 Slots Wi-Fi 7 & Bluetooth v5.4 White Price in Pakistan
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM Slots, Max 256GB DDR5 |
| Supports up to 8000+ MT/s (OC) | |
| ECC & Non-ECC, Un-buffered DIMM | |
| Dual Channel Architecture | |
| Supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x HDMI™ 2.1 Port (4K@60Hz) |
| 2 x USB4® (40Gbps) Ports supporting Display Output (up to 4K@60Hz via DP 1.4a) | |
| Graphics specifications depend on CPU type. | |
| Expansion Slots | Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) |
| Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) | |
| Chipset: 2 x PCIe 4.0 x16 (x1 mode) | |
| 1 x PCIe 3.0 x16 (x1 mode, shared with SATA6G_3 & 6G_4)* | |
| Shared bandwidth may disable SATA ports; configurable in BIOS. | |
| Storage | 3 x M.2 Slots + 4 x SATA 6Gb/s Ports |
| Ryzen™ 9000/7000: | |
| - M.2_1: PCIe 5.0 x4 (2280) | |
| - M.2_2: PCIe 4.0 x4 (2242/2260/2280) | |
| Ryzen™ 8000: | |
| - M.2_1: PCIe 4.0 x4 (2280) | |
| - M.2_2: PCIe 4.0 x4/x2 (2242/2260/2280) | |
| Chipset: | |
| - M.2_3: PCIe 4.0 x4 (2280) | |
| USB4® (40Gbps) ports share bandwidth with M.2_2. | |
| RAID Support | AMD RAIDXpert2 Technology |
| - Ryzen™ 9000: RAID 0/1/5/10 | |
| - Ryzen™ 8000: RAID 0/1 | |
| - Ryzen™ 7000: RAID 0/1/10 | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz Bands |
| Supports up to 2.9Gbps Transfer Rate | |
| Bluetooth® v5.4 | |
| Wi-Fi 7 full support requires Windows 11 24H2 or later. | |
| Rear USB Ports (10 Total) | 2 x USB4® 40Gbps (2 x Type-C®) |
| 1 x USB 10Gbps (Type-A) | |
| 3 x USB 5Gbps (Type-A) | |
| 4 x USB 2.0 (Type-A) | |
| Front USB Ports (7 Total) | 1 x USB 20Gbps Type-C® |
| 1 x USB 5Gbps Header (supports 2 ports) | |
| 2 x USB 2.0 Headers (supports 4 ports) | |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| - Jack Detection, Multi-streaming, Front Panel Jack-Retasking | |
| - Up to 24-bit/192kHz Playback | |
| - Audio Shielding, Premium Capacitors, Dedicated PCB Layers | |
| Requires HD Audio Front Panel for full 7.1 output. | |

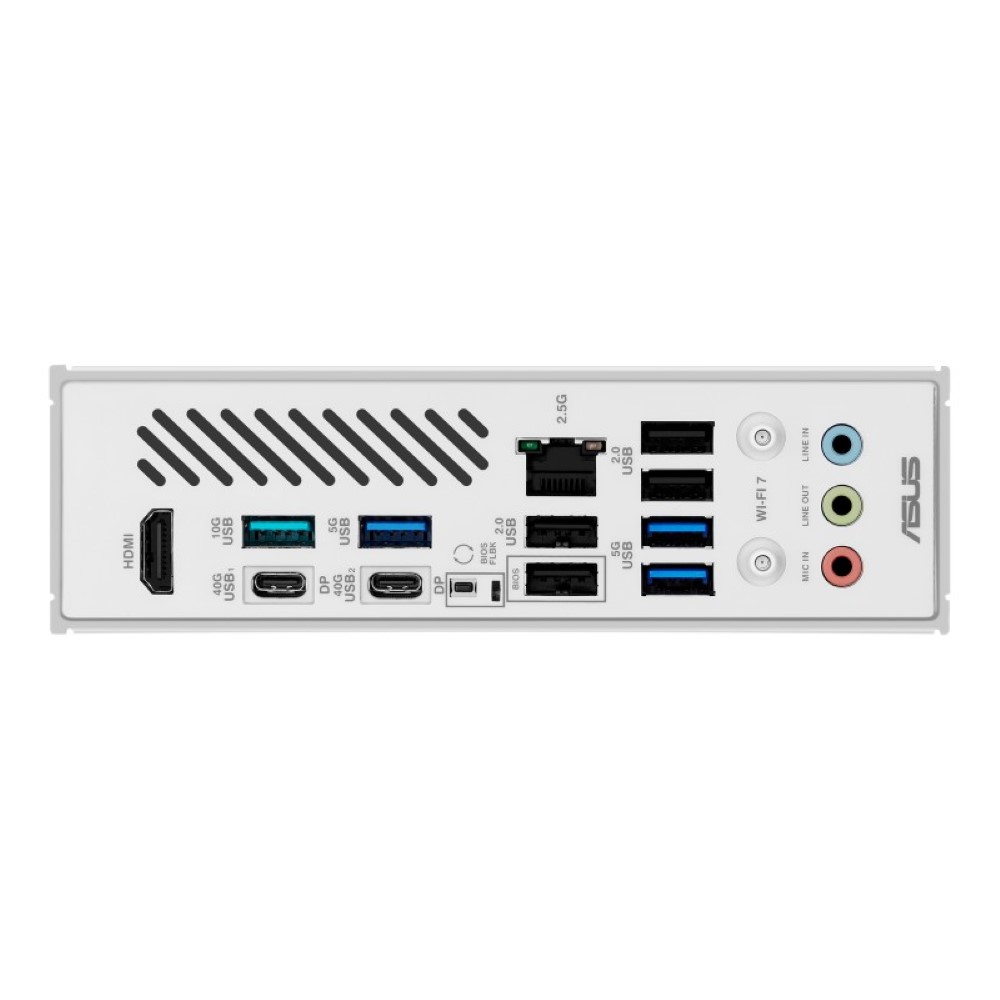

| Back Panel I/O Ports | 2 x USB4® 40Gbps (Type-C®) |
| 1 x USB 10Gbps (Type-A) | |
| 3 x USB 5Gbps (Type-A) | |
| 4 x USB 2.0 (Type-A) | |
| 1 x HDMI™ Port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet | |
| 3 x Audio Jacks | |
| 1 x BIOS FlashBack™ Button | |
| Internal I/O Connectors | Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan |
| Power: 1 x 24-pin ATX, 2 x 8-pin CPU Power | |
| Storage: 3 x M.2, 4 x SATA 6Gb/s | |
| USB: 1 x USB 20Gbps (Type-C), 1 x USB 5Gbps (2 ports), 2 x USB 2.0 (4 ports) | |
| Misc: 3 x ARGB Gen 2, Clear CMOS Header, Chassis Intrusion, COM Port, Front Audio, S/PDIF Out, SPI TPM (14-1 pin), System Panel Header | |
| Special Features | ASUS 5X Protection III: DIGI+ VRM (DrMOS), LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel I/O |
| Q-Design: PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot | |
| Thermal Solution: Flexible M.2 Heatsinks, VRM Heatsink Design | |
| EZ DIY: BIOS FlashBack™, ProCool, Pre-mounted I/O Shield, SafeSlot | |
| Aura Sync: Addressable RGB Gen 2 Headers | |
| Software Features | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 w/ AI Cooling II) |
| ASUS AI Advisor, DriverHub, GlideX, TurboV Core, ASUS CPU-Z | |
| Norton 360 Deluxe (60-day Trial), WinRAR (40-day Trial) | |
| UEFI BIOS | ASUS EZ DIY Tools |
| CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, MyHotkey | |
| 256 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE |

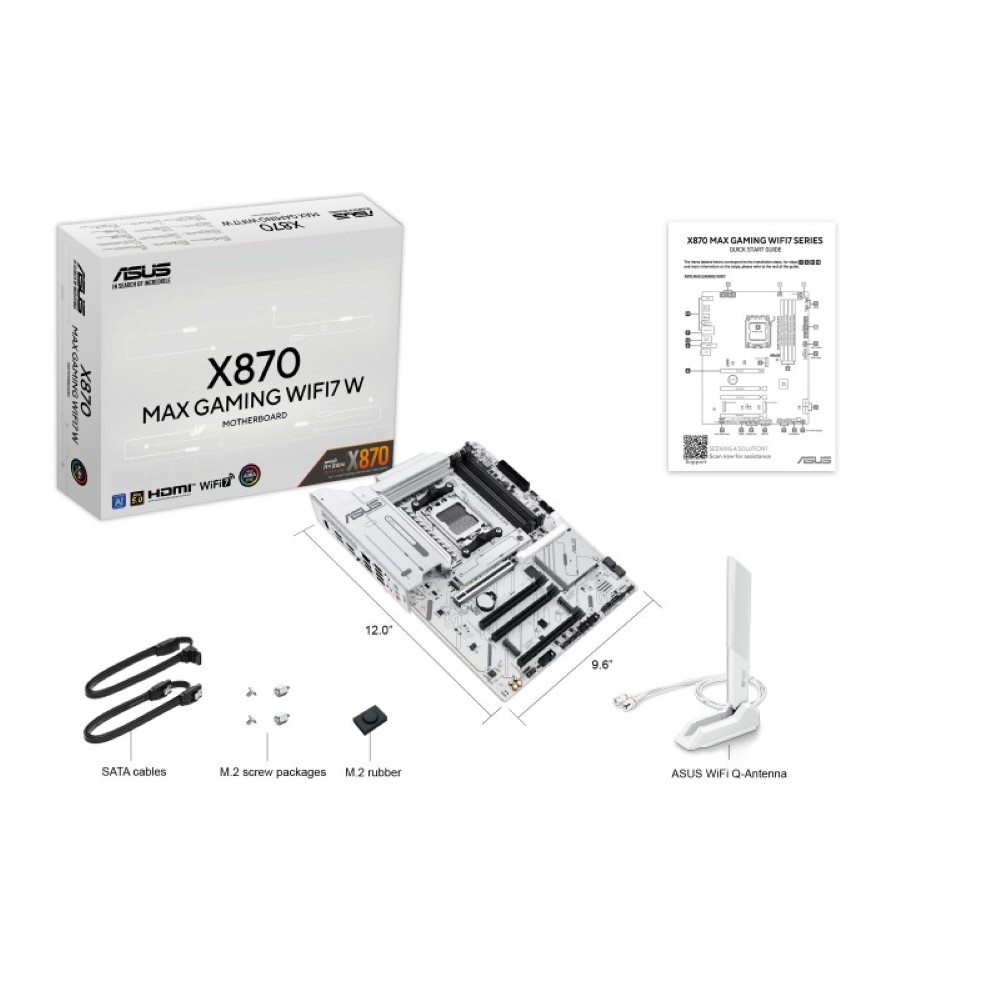

| Accessories | 2 x SATA 6Gb/s Cables |

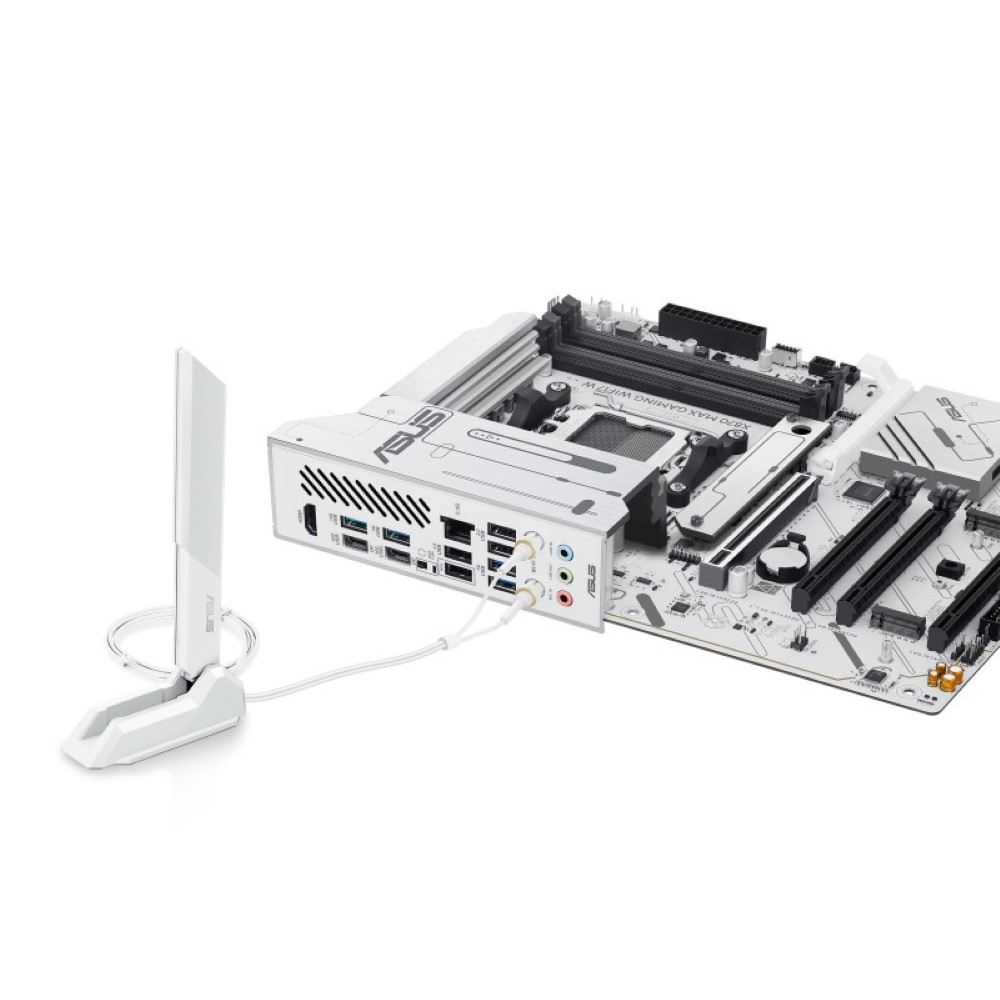

| 1 x ASUS Wi-Fi Q-Antenna | |
| 1 x M.2 Rubber Package | |
| 1 x Screw Kit for M.2 SSD | |
| 1 x Quick Start Guide | |
| Operating System | Windows 11 |
