Motherboard / Chipset
Out of Stock

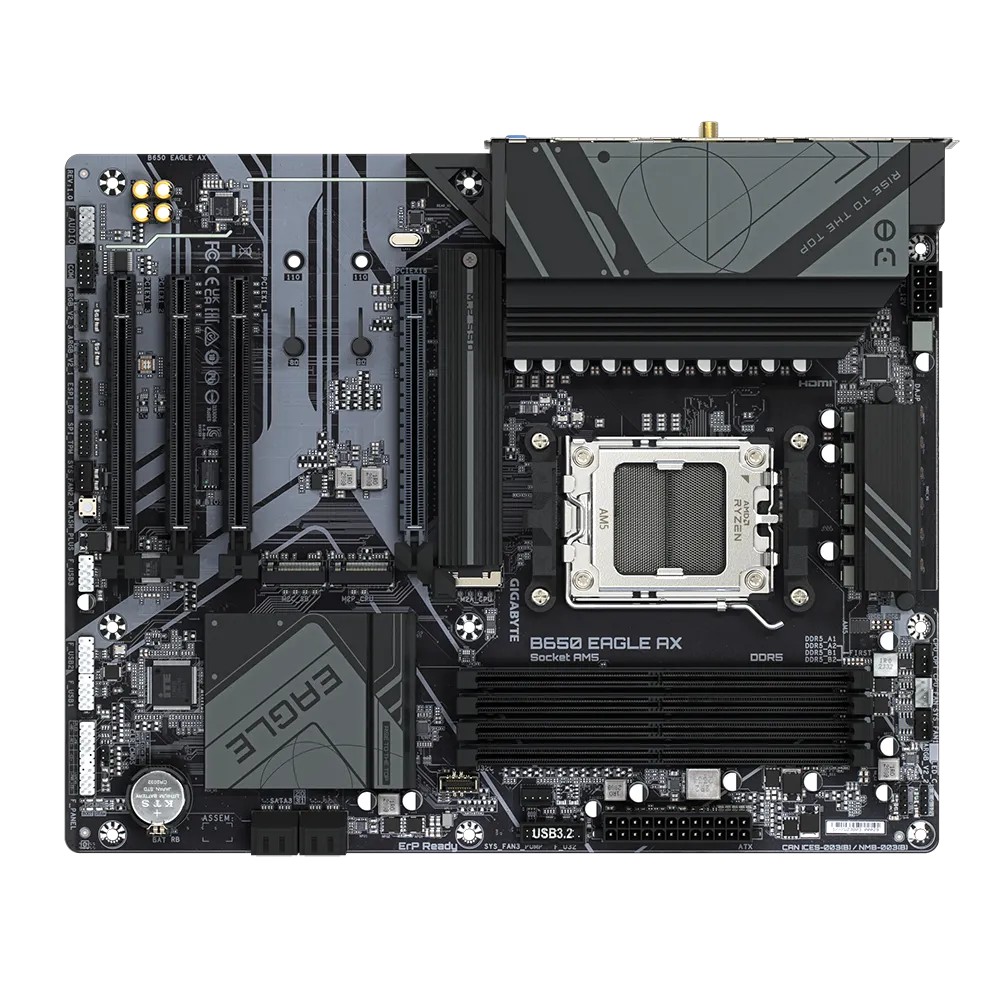

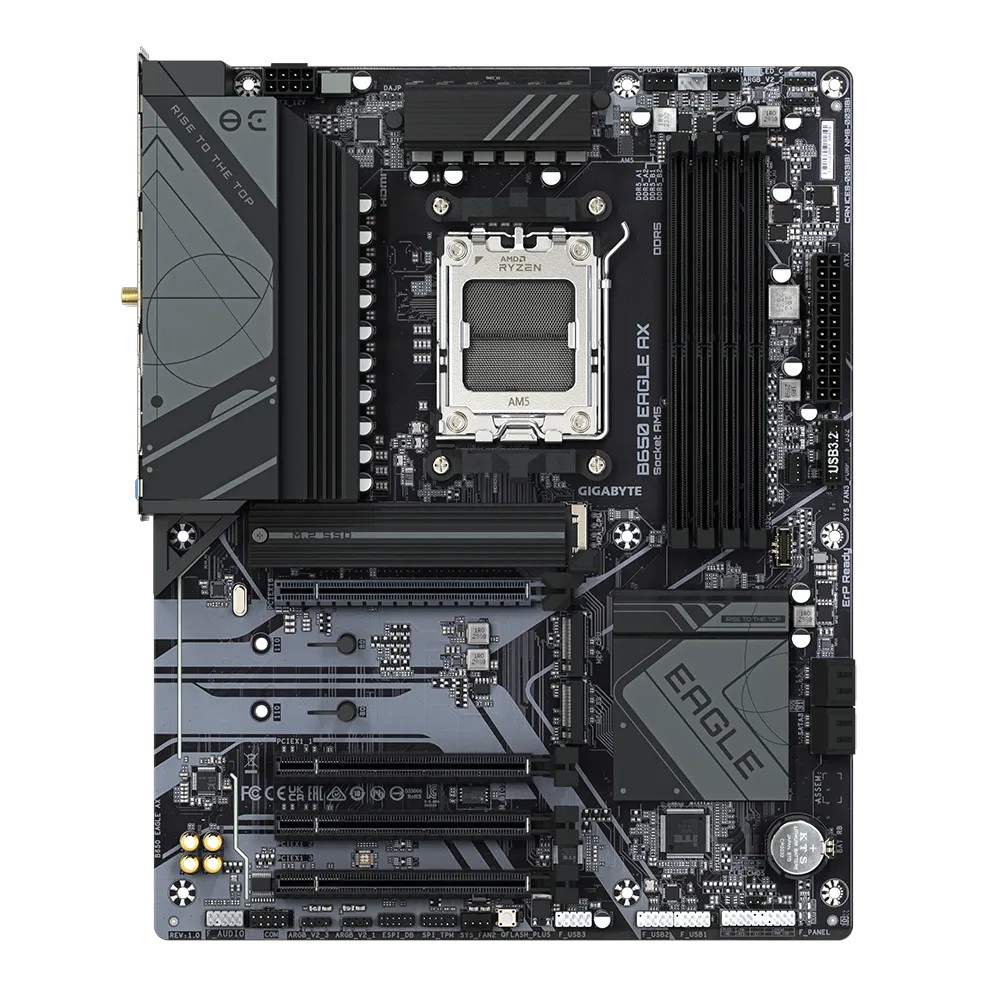

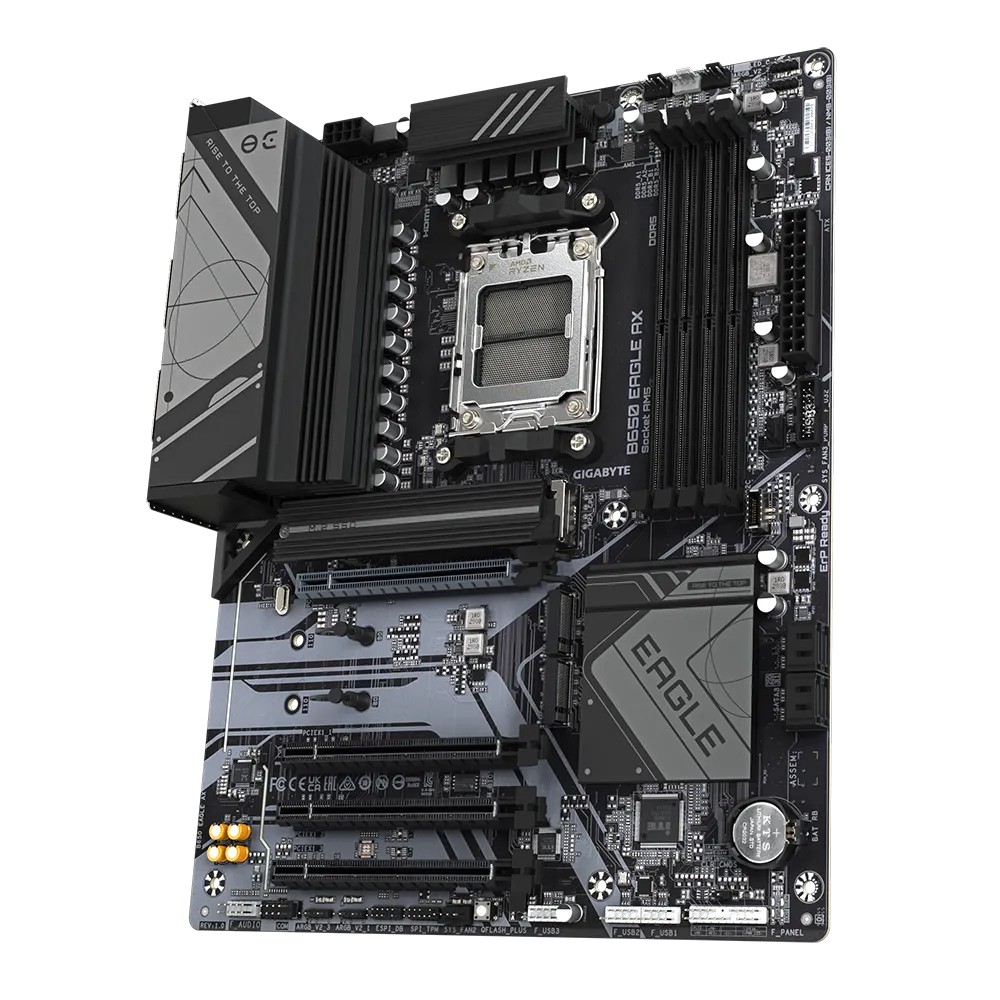

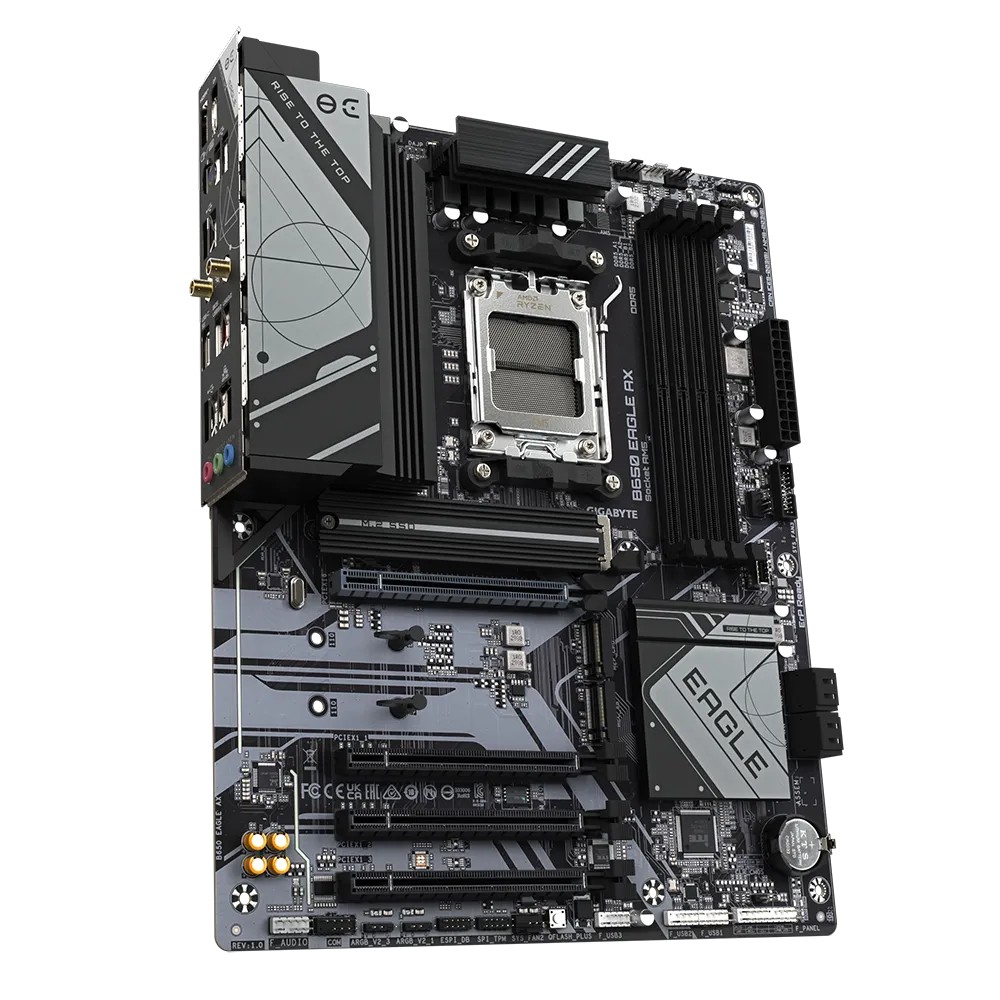

GIGABYTE MOTHERBOARD : B650 EAGLE AX WIFI DDR5
Rs. 63,999
<ul><li>AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors</li><li>Unparalleled Performance：12+2+2 Phases Digital VRM Solution</li><li>Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support</li><li>SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors</li><li>Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance</li><li>EZ-Latch：PCIe x16 Slot with Quick Release Design</li><li>Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN</li><li>Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s</li><li>Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li><li>Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
Gigabyte B650 Eagle AX AM5 AMD B650 ATX DDR5, 3x M.2 PCIe 5.0 USB 3.2 Gen2x2 Type-C Wi-Fi 6E Realtek GbE LAN Price in Pakistan
| CPU | AMD Socket AM5, support for: |
| • AMD Ryzen™ 7000 Series Processors | |
| • AMD Ryzen™ 8000 Series Processors | |
| • AMD Ryzen™ 9000 Series Processors | |
| (Refer to GIGABYTE website for CPU support list) | |
| Chipset | AMD B650 |
| Memory | • Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC) /6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s |
| • 4 × DDR5 DIMM sockets (up to 256 GB total, 64 GB per DIMM) | |
| • Dual channel memory architecture | |
| • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| • Support for AMD EXPO™ and Intel® XMP memory profiles | |
| Onboard Graphics | Integrated AMD Radeon™ Graphics: |
| • 1 × DisplayPort 1.4: Max 3840x2160@144Hz | |
| • 1 × HDMI 2.1: Max 4096x2160@60Hz, HDCP 2.3 | |
| Audio | Realtek® Audio CODEC |
| • High Definition Audio | |
| • 2/4/5.1/7.1-channel configurable via software | |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication | PCB rev. 1.0: Realtek® Wi-Fi 6E RTL8852CE |
| • Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz | |
| • Bluetooth 5.3 | |
| • 160 MHz bandwidth | |
| PCB rev. 1.1: Intel® Wi-Fi 6E AX210 | |
| • Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz | |
| • Bluetooth 5.3 | |
| • 160 MHz bandwidth | |
| Expansion Slots | • 1 × PCIe x16 (from CPU): |
| – Ryzen 7000/9000: PCIe 4.0 x16 | |
| – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 | |
| – Ryzen 8000 Phoenix 2: PCIe 4.0 x4 | |
| • 2 × PCIe x1 (from CPU): PCIe 3.0 x1 | |
| • 1 × PCIe x1 (from Chipset): PCIe 3.0 x1 | |
| Storage Interface | • 1 × M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (type 25110/22110/2580/2280) |
| • 1 × M.2 (M2P_CPU): PCIe 4.0 x2 (type 22110/2280) | |
| • 1 × M.2 (M2C_SB): PCIe 4.0 x4/x2 (type 22110/2280) | |
| • 4 × SATA 6Gb/s ports | |
| • RAID 0/1/10 for both NVMe & SATA SSDs | |
| USB Ports | CPU: |
| • 2 × USB 3.2 Gen 2 Type-A (rear, red) | |
| • 1 × USB Type-C® (rear, Gen 1) | |
| CPU + USB Hub: | |
| • 4 × USB 2.0/1.1 (rear) | |
| Chipset: | |
| • 2 × USB 3.2 Gen 1 (internal header) | |
| • 1 × USB Type-C® Gen 1 (internal header) | |
| • 4 × USB 2.0/1.1 (2 rear, 2 internal) | |
| Chipset + Hub: | |
| • 4 × USB 2.0/1.1 (internal headers) | |
| Internal I/O Connectors | • 1 × 24-pin ATX main power |
| • 1 × 8-pin ATX 12V | |
| • 1 × CPU fan | |
| • 1 × CPU fan/water pump | |
| • 2 × system fan | |
| • 1 × system fan/water pump | |
| • 3 × ARGB Gen2 headers | |
| • 1 × RGB LED header | |
| • 3 × M.2 connectors | |
| • 4 × SATA 6Gb/s | |
| • 1 × front panel | |
| • 1 × front audio | |
| • 1 × USB Type-C® (USB 3.2 Gen 1) | |
| • 1 × USB 3.2 Gen 1 header | |
| • 3 × USB 2.0 headers | |
| • 1 × TPM header | |
| • 1 × Q-Flash Plus button | |
| • 1 × serial port | |
| • 1 × Clear CMOS jumper | |

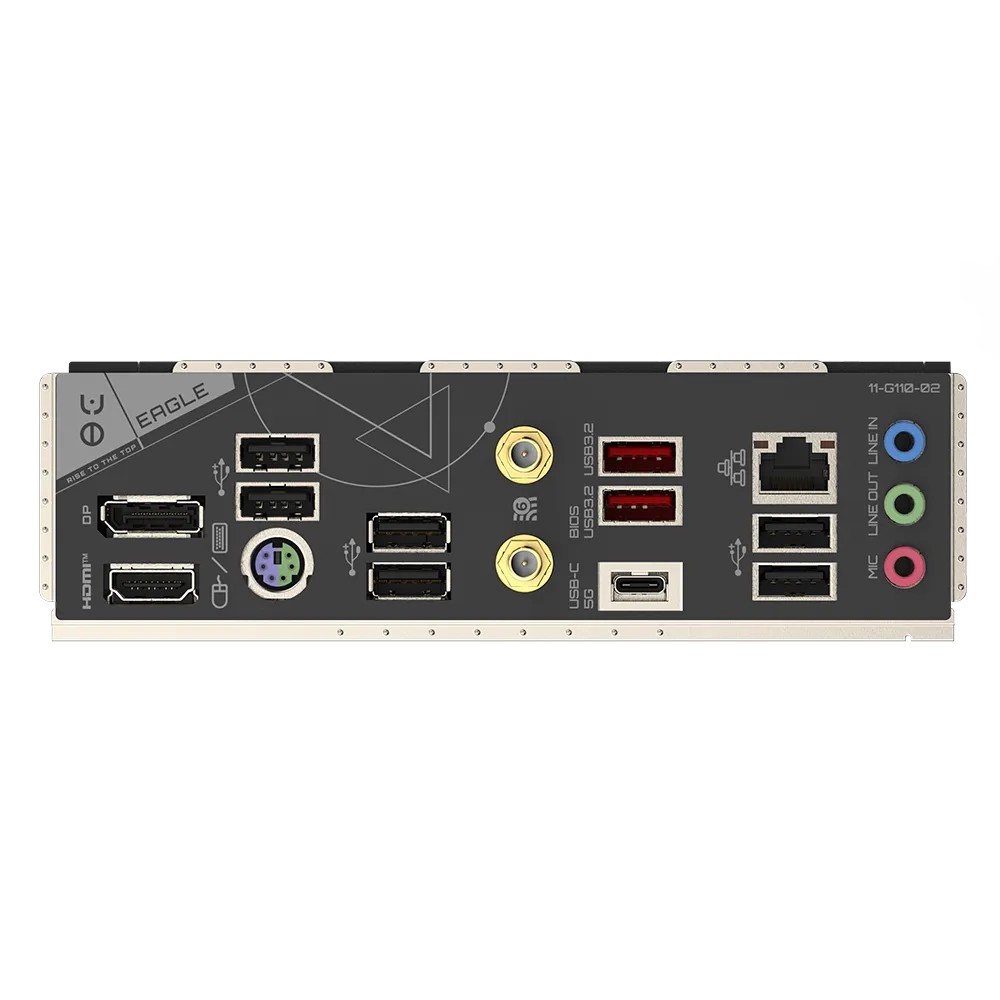

| Back Panel Connectors | • 1 × DisplayPort |
| • 1 × HDMI port | |
| • 1 × PS/2 keyboard/mouse | |
| • 2 × Wi-Fi antenna (2T2R) | |
| • 1 × USB Type-C® (USB 3.2 Gen 1) | |
| • 2 × USB 3.2 Gen 2 Type-A (red) | |
| • 6 × USB 2.0/1.1 | |
| • 1 × RJ-45 LAN | |
| • 3 × audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | • Voltage / Temperature / Fan speed / Water flow detection |
| • Fan fail warning | |
| • Fan speed control (depends on fan/pump) | |
| BIOS | • 1 × 256 Mbit flash |
| • AMI UEFI BIOS | |
| • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | • GIGABYTE Control Center (GCC) support |
| • Q-Flash / Q-Flash Plus | |
| Bundled Software | • Norton® Internet Security (OEM) |
| • LAN bandwidth management software | |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | ATX, 30.5 cm × 24.4 cm |
