ASUS MOTHERBOARD : B850M-E MATX WITH DDR5

Rs. 78,000

<ul class="list_dkf_HqcGmV"><li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">ASUS TUF GAMING B850M-PLUS takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

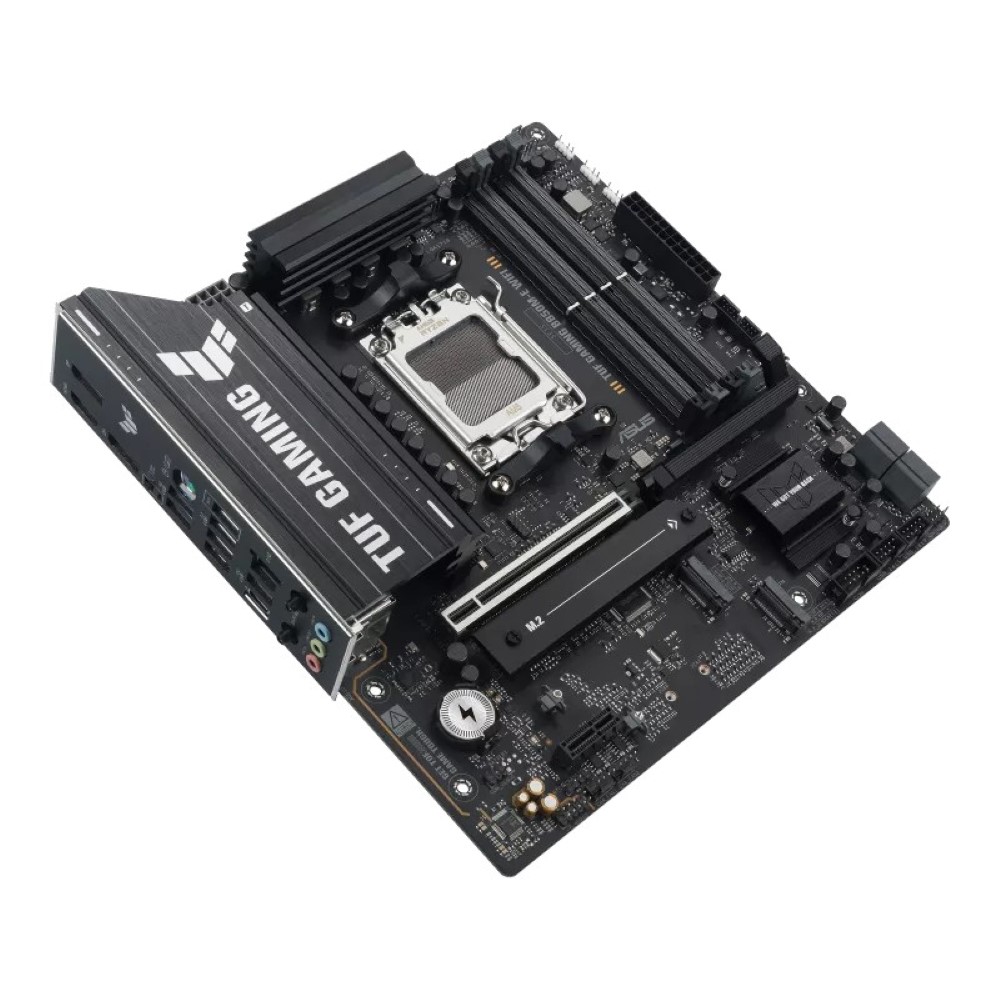

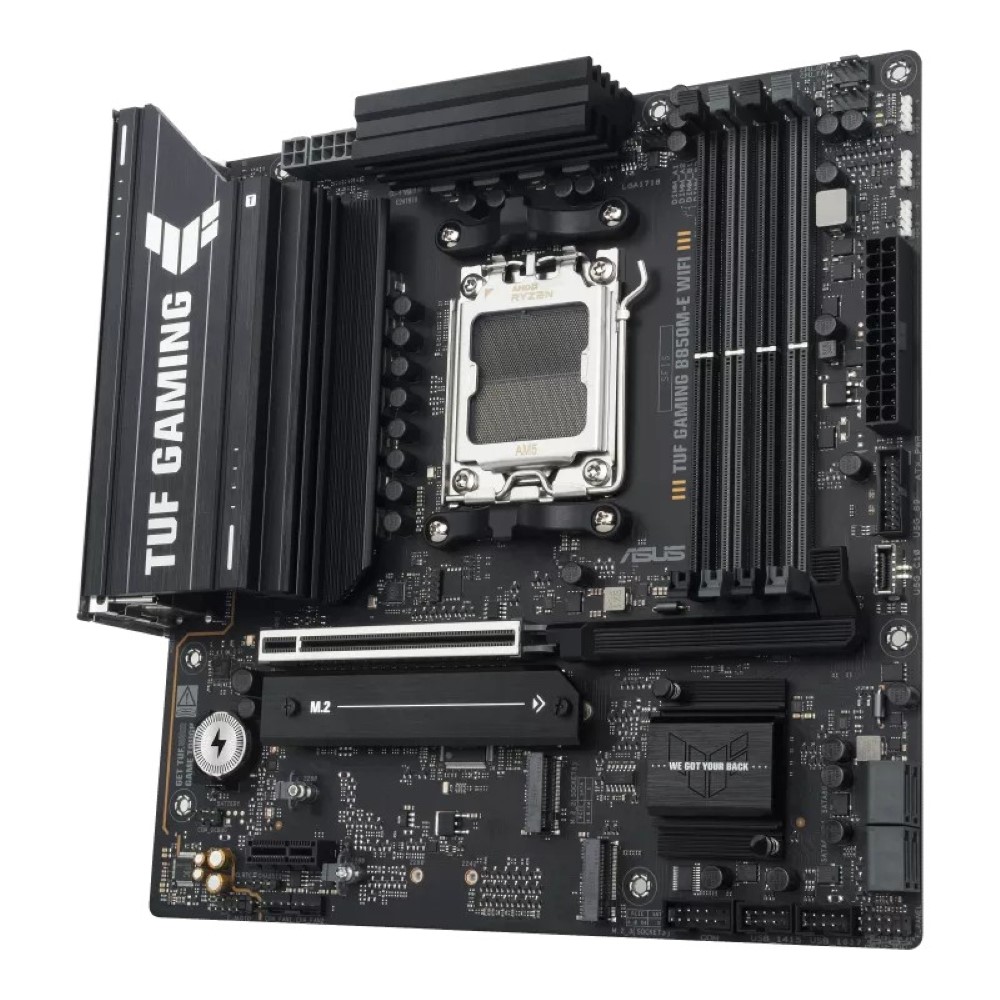

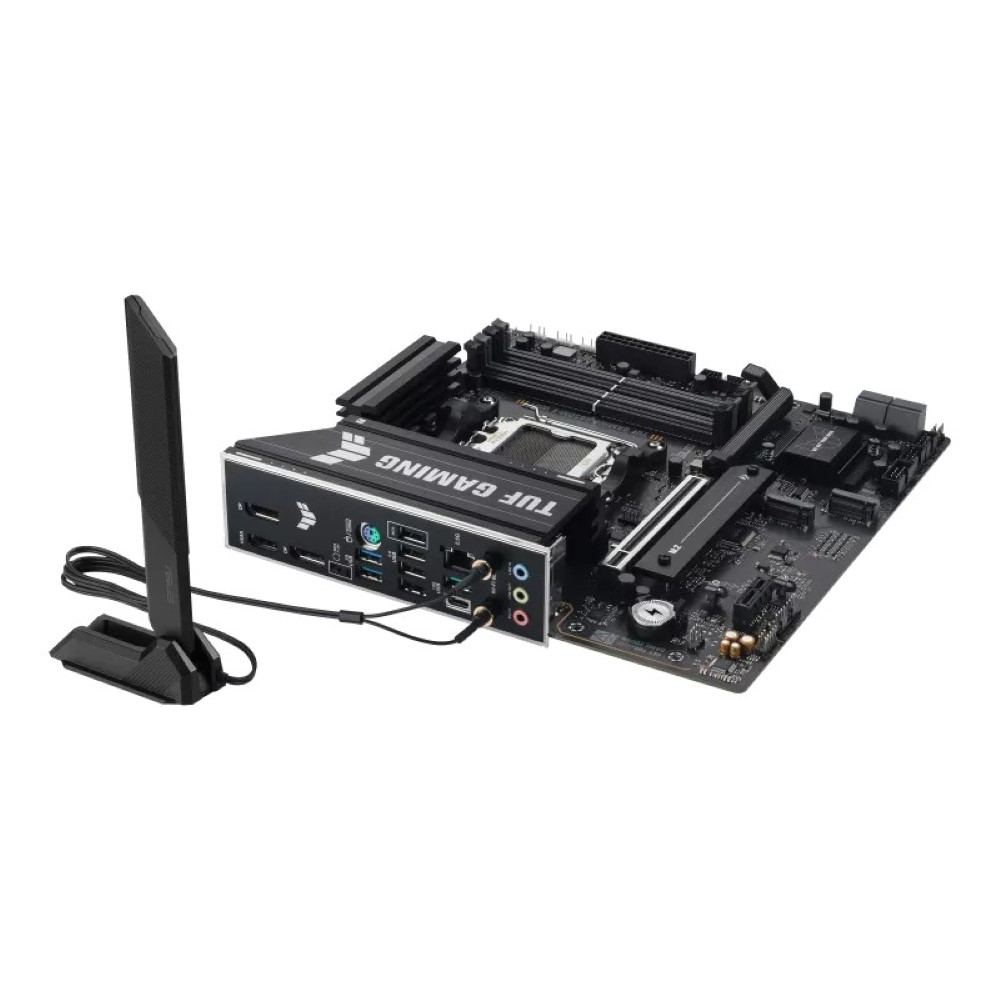

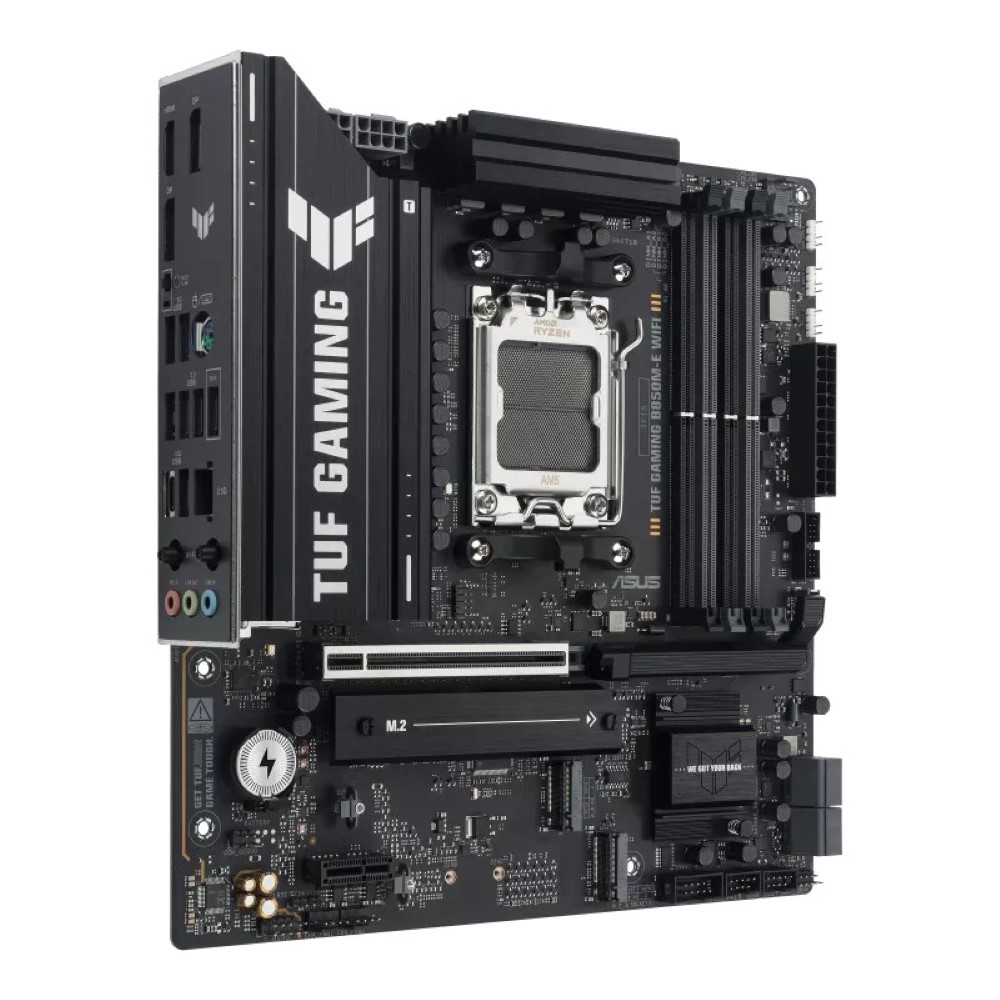

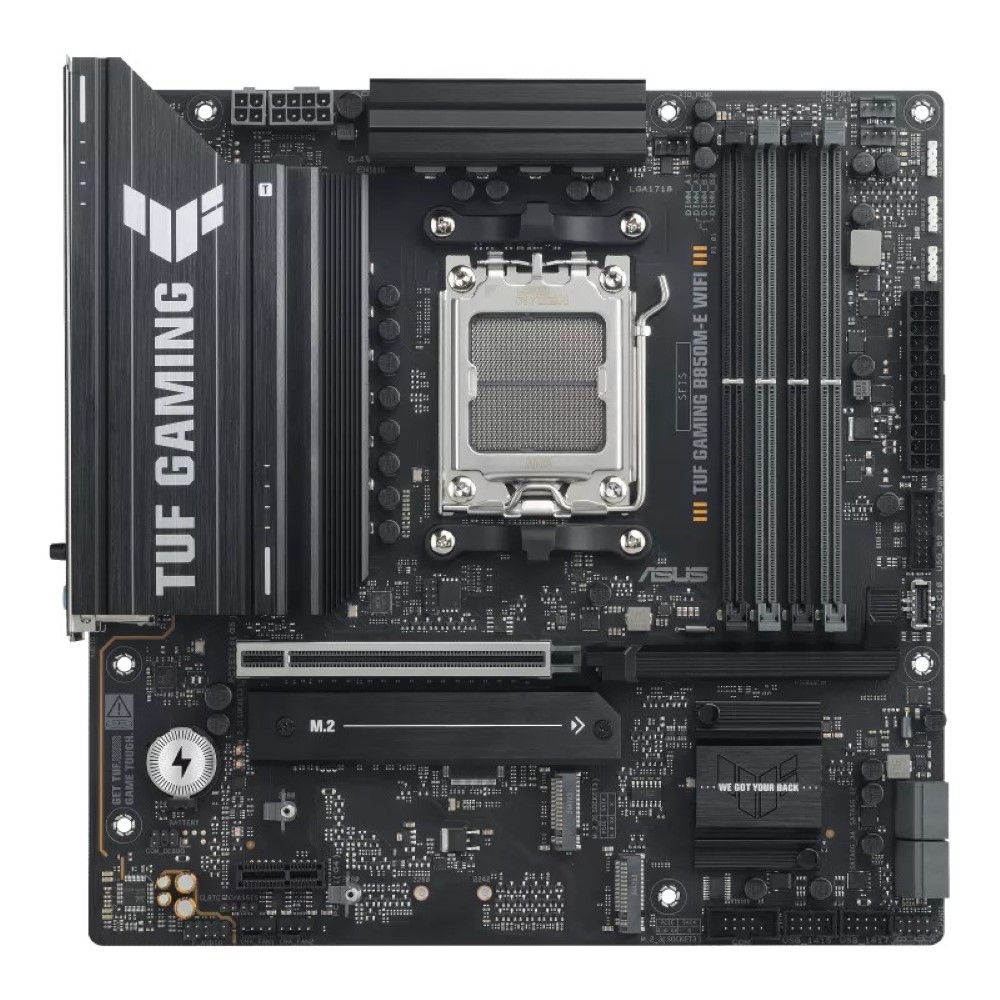

ASUS TUF GAMING B850M-E WIFI AMD B850 mATX motherboard 8+2+1 80A DrMOS power stages DDR5 PCIe 5.0 three M.2 slots WiFi 6E 2.5Gb Ethernet DisplayPort HDMI rear USB-C 10Gbps and front USB-C 5Gbps Price in Pakistan

Model	TUF GAMING B850M-E WIFI
Form Factor	micro-ATX
Dimensions	9.6 × 9.6 in (24.4 × 24.4 cm)
Socket	AMD AM5
Chipset	AMD B850
OS Support	Windows 11 (22H2+), Windows 10 64-bit (21H2+)
CPU Support
Feature	Details
Supported CPUs	Ryzen™ 9000 / 8000 / 7000 Series
CPU Socket	AM5
Memory
Feature	Details
Memory Slots	4 × DIMM
Max Capacity	256 GB
Memory Type	DDR5
Max Speed (OC)	Up to 8000+ MT/s
Architecture	Dual Channel
ECC	ECC & Non-ECC Un-buffered
Memory Profiles	AMD EXPO™, ASUS AEMP
On-Die ECC	Supported (Non-ECC DDR5)
Graphics Output
Port	Specification
DisplayPort	2 × DP 1.4 (Up to 8K @ 60Hz)
HDMI	1 × HDMI 2.1 (Up to 4K @ 60Hz)
iGPU Requirement	CPU with integrated graphics
Expansion Slots
Slot	Details
PCIe x16 (CPU)	PCIe 5.0 x16 (Ryzen 9000/7000)
PCIe x16 (APU)	PCIe 4.0 x16 (Ryzen 8000)
PCIe x1 (Chipset)	1 × PCIe 4.0 x1
Storage
Type	Details
M.2 Slots	3 × M.2 (Key M)
M.2_1	PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000)
M.2_2	PCIe 4.0 x4 / x2 (CPU dependent)
M.2_3	PCIe 4.0 x4 (Chipset)
SATA Ports	4 × SATA 6Gb/s
RAID Support
CPU Series	RAID Levels
Ryzen™ 9000	RAID 0 / 1 / 5 / 10
Ryzen™ 8000	RAID 0 / 1
Ryzen™ 7000	RAID 0 / 1 / 10
Networking
Feature	Details
Wired LAN	Realtek 2.5Gb Ethernet
LAN Protection	TUF LANGuard
Wireless	Wi-Fi 6E (802.11ax)
Wi-Fi Bands	2.4 / 5 / 6 GHz
Bluetooth	Bluetooth® 5.3
USB Ports
Rear USB
USB Type	Count
USB 10Gbps	1 × Type-A, 1 × Type-C
USB 5Gbps	2 × Type-A
USB 2.0	4 × Type-A
Front / Internal USB
USB Type	Count
USB-C 5Gbps	1
USB 5Gbps Header	Supports 2 ports
USB 2.0 Headers	Supports 4 ports
Audio
Feature	Details
Codec	Realtek 7.1 HD Audio
Max Quality	24-bit / 192 kHz
Audio Features	Shielding, premium capacitors, dedicated PCB layers

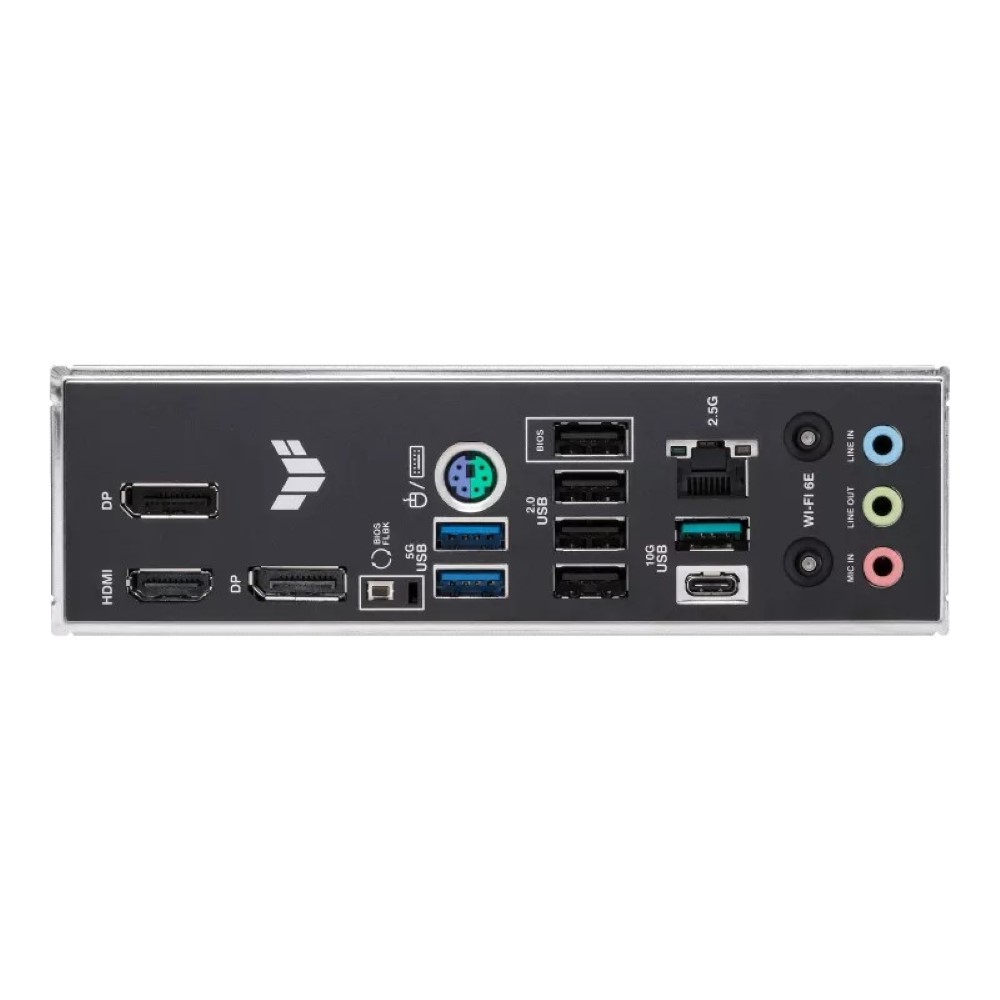

Back Panel I/O
Port	Count
DisplayPort	2
HDMI	1
USB 10Gbps	2
USB 5Gbps	2
USB 2.0	4
Wi-Fi Antenna	1
Ethernet	1 × 2.5Gb
Audio Jacks	3
BIOS FlashBack	1
PS/2	1 combo
Internal Connectors
Category	Count
CPU Fan	1
CPU OPT Fan	1
AIO Pump	1
Chassis Fans	2
Power Connectors	24-pin ATX, 8-pin + 4-pin CPU
RGB Headers	3 × Addressable Gen 2
Storage	3 × M.2, 4 × SATA
Other Headers	Clear CMOS, COM, Front Audio, Intrusion
Special Features
Category	Details
Protection	ASUS TUF Protection
Cooling	M.2 heatsink, VRM heatsinks
Q-Design	Q-Latch, Q-Release, Q-LED, Q-DIMM
EZ DIY	BIOS FlashBack™, SafeSlot, SafeDIMM
RGB Sync	Aura Sync
Software & BIOS
Feature	Details
BIOS	256Mb UEFI AMI
BIOS Tools	EZ Flash 3, CrashFree BIOS 3
Utilities	Armoury Crate, Fan Xpert 2+, AI Advisor
Audio Software	DTS Audio Processing
Bundled Software	Norton 360, WinRAR

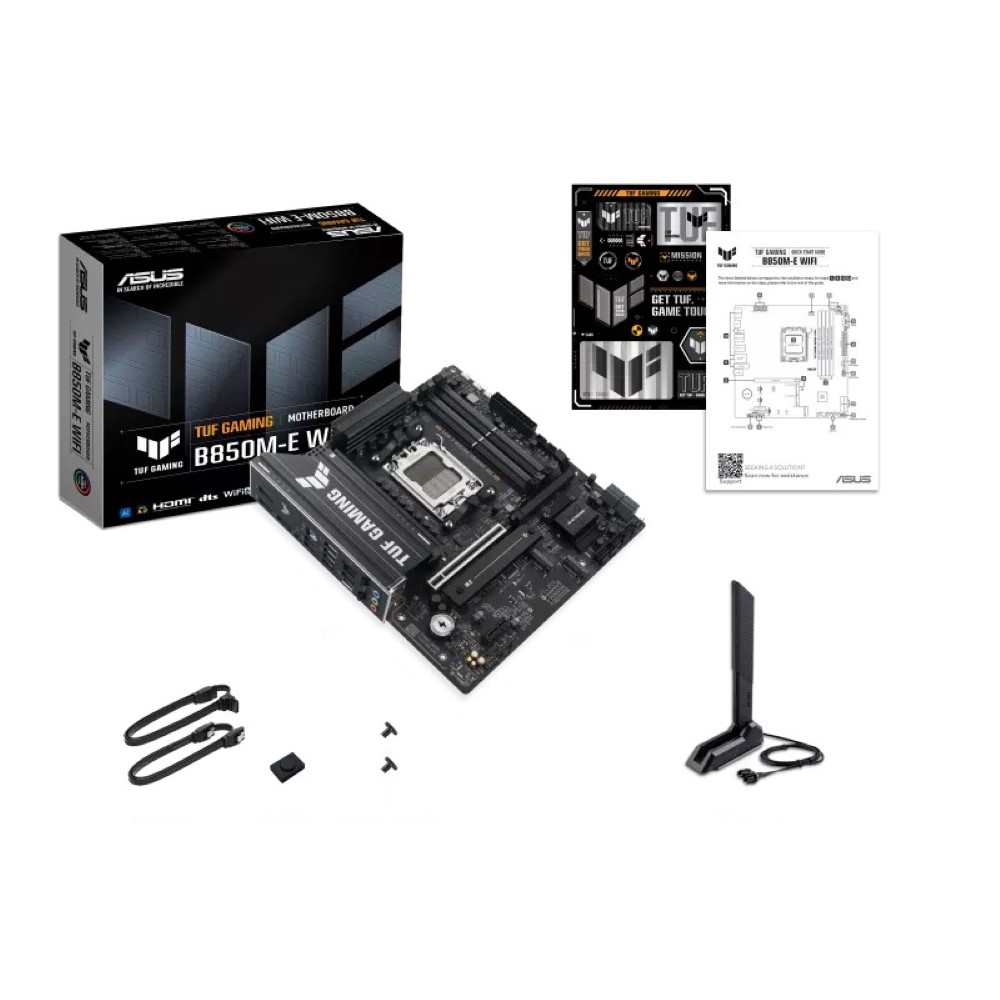

Accessories
Item	Included
SATA Cables	2
Wi-Fi Antenna	ASUS WiFi Q-Antenna
M.2 Accessories	Rubber + Screw Pack
Extras	TUF Sticker
Documentation	Quick Start Guide
