Gigabyte Motherboard:B760M Ds3H Ax Ddr4

Rs. 42,499

<ul><li>Intel<sup>®</sup> Socket LGA 1700：Support 13th and 12th Gen Series Processors</li><li>Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution</li><li>Dual Channel DDR5：4*DIMMs XMP Memory Module Support</li><li>Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors</li><li>M.2 Thermal Guard：To Ensure M.2 SSD Performance</li><li>EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design</li><li>Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax</li><li>Extended Connectivity：Rear USB-C<sup>®</sup> 10Gb/s, DP, HDMI</li><li>Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li><li>Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card</li><li> </li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE B760M DS3H AX DDR4 13th and 12th Gen Intel mATX Motherboard 1.0 Price in Pakistan

Basic Information
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Memory
Type	DDR4
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort

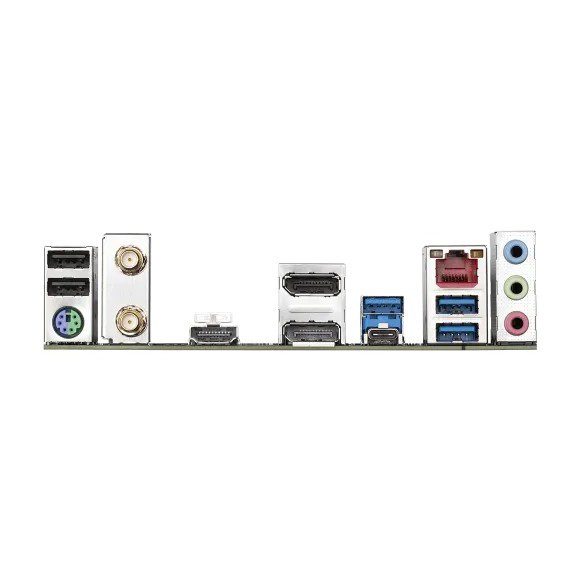

USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module	Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

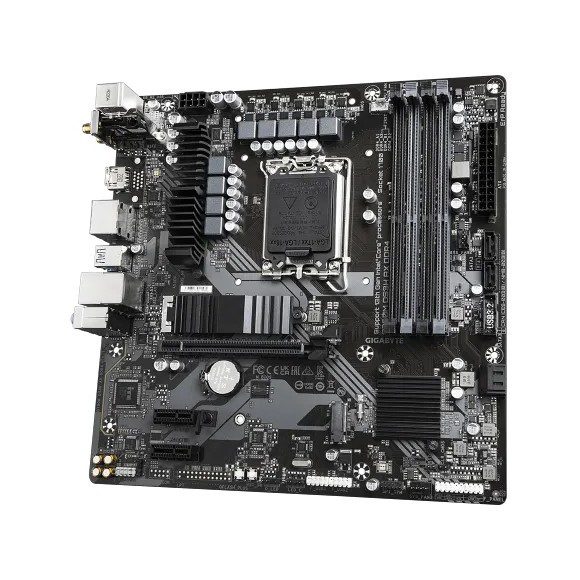

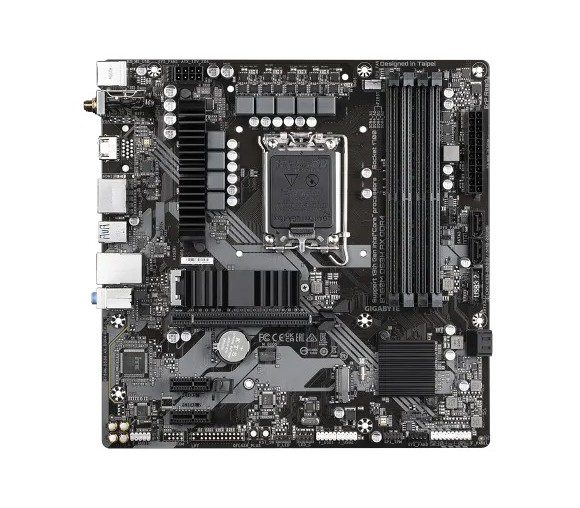

GIGABYTE B760M DS3H AX DDR4 13th and 12th Gen Intel mATX Motherboard

The GIGABYTE B760M DS3H AX DDR4 is an mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0×16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboard’s rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.
