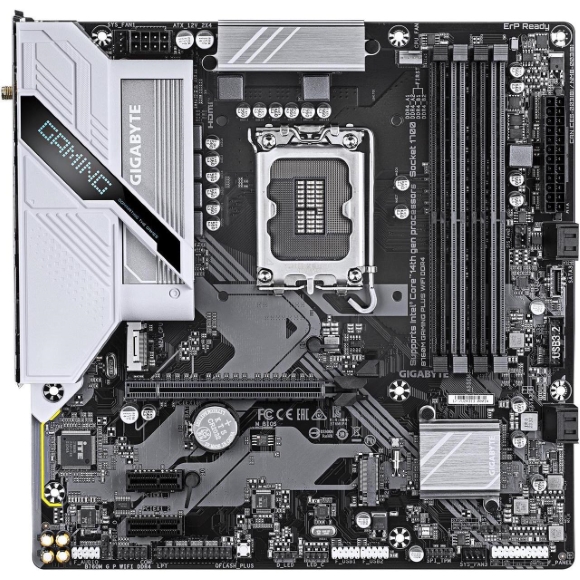

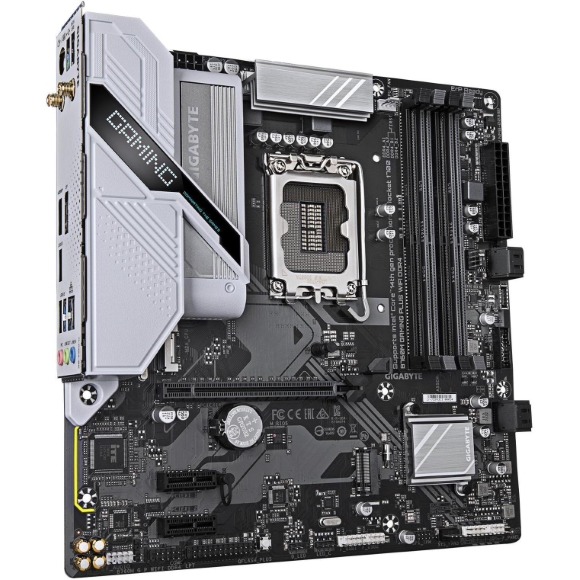

Gigabyte Motherboard:B760M Gaming Plus Wifi Ddr4

Rs. 40,699

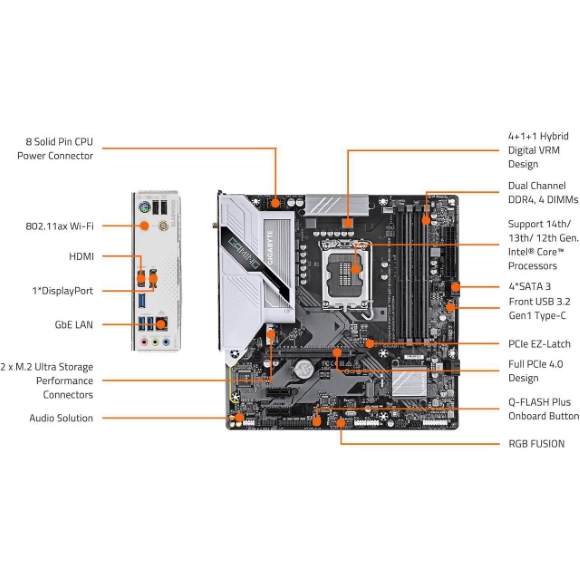

<ul><li>Intel LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Processors</li><li>DDR4 Compatible: Dual Channel DDR4, 4 DIMMs</li><li>Sturdy Power Design: Hybrid 4+1+1 Phases Digital VRM Solution</li><li>Next Gen Connectivity: 2*PCIe 4.0 x4 M.2, Front USB 3.2 Gen 1 Type-C</li><li>Fast Networking: LAN, Wi-Fi 6</li><li>Fine Tuning Features: Smart Fan 6, Q-Flash Plus</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA 1700 Intel B760 M-ATX Motherboard Price in Pakistan


Best Seller Ranking	#17 in Intel Motherboards

Model
Brand	GIGABYTE
Model	B760M GAMING PLUS WIFI DDR4

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3

Rear Panel Ports

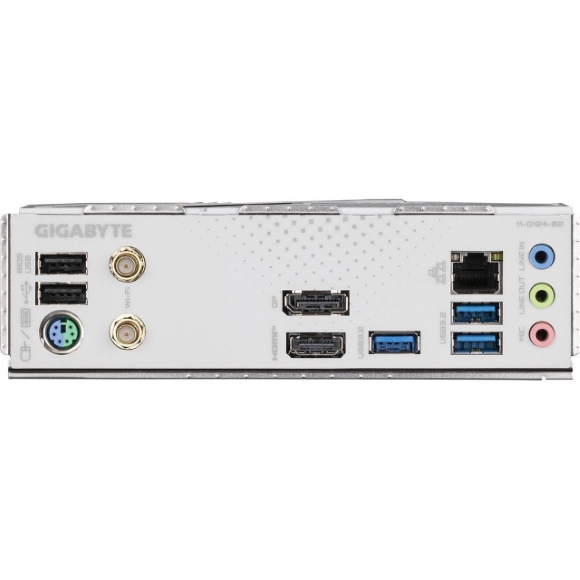

Back I/O Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
