Motherboard / Chipset
Out of Stock

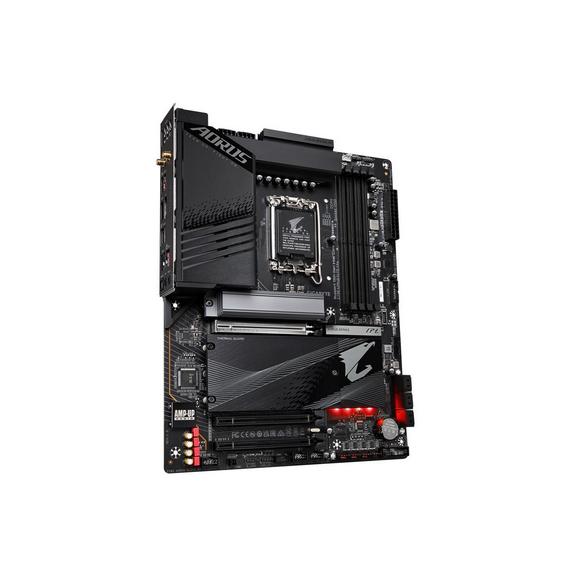

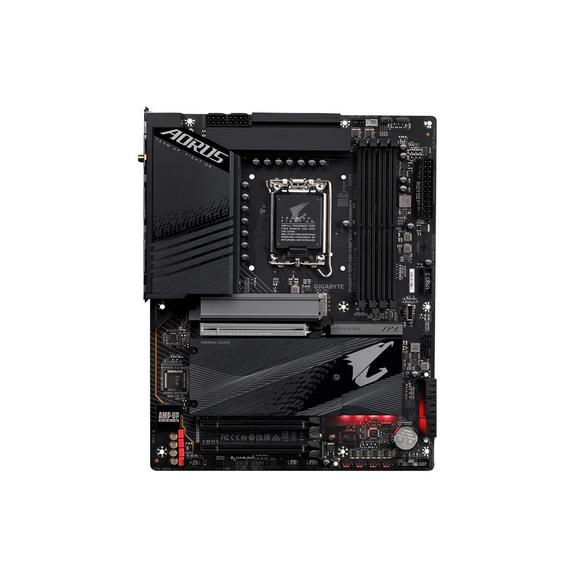

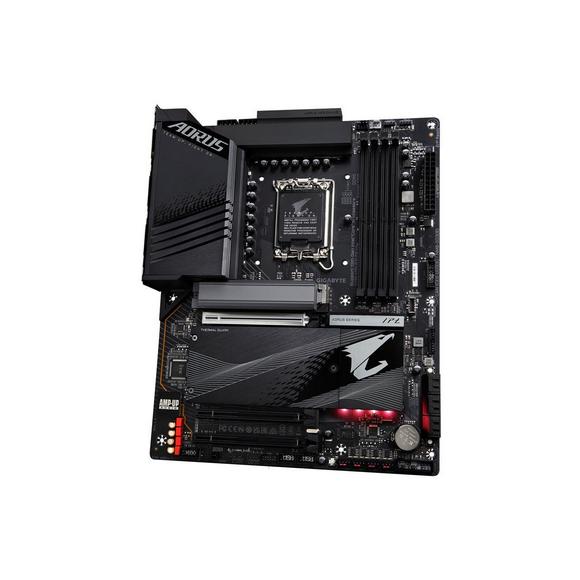

Gigabyte Motherboard:Z790 Aorus Elite Ax Black
Rs. 92,000
<ul><li>Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors</li><li>DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support</li><li>Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution with 70A Power Stage</li><li>Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fully Covered MOSFET Heatsinks, PCIe Ultra Durable Armor, 6-Layer PCB</li><li>Next Gen Connectivity: SMD PCIe 5.0, 4* PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C</li><li>EZ-Latch: PCIe 5.0 EZ-Latch with a Quick Release & Screwless Design</li><li>Fast Networking: 2.5GbE LAN, Intel WiFi 6E 802.11ax, 2T2R & BT5 with AORUS Antenna</li><li>Dynamic Audio: High-End Audio Capacitor, Audiophile WIMA Capacitors</li><li>Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
GIGABYTE Z790 AORUS ELITE AX LGA 1700 Intel Z790 ATX with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch Motherboard Price in Pakistan
| Brand | GIGABYTE |
|---|---|
| Model | Z790 AORUS ELITE AX |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|---|---|
| PCI Express 4.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek Audio CODEC High Definition Audio |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Bluetooth 5.3 |

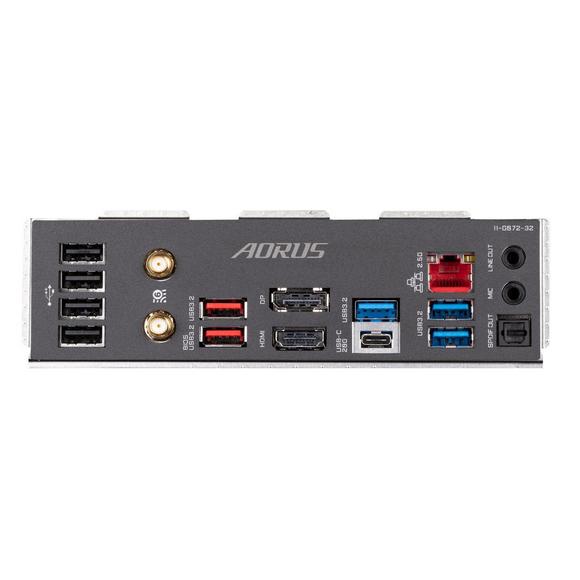

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows 11 | Supported |
|---|
| Features | BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|---|
