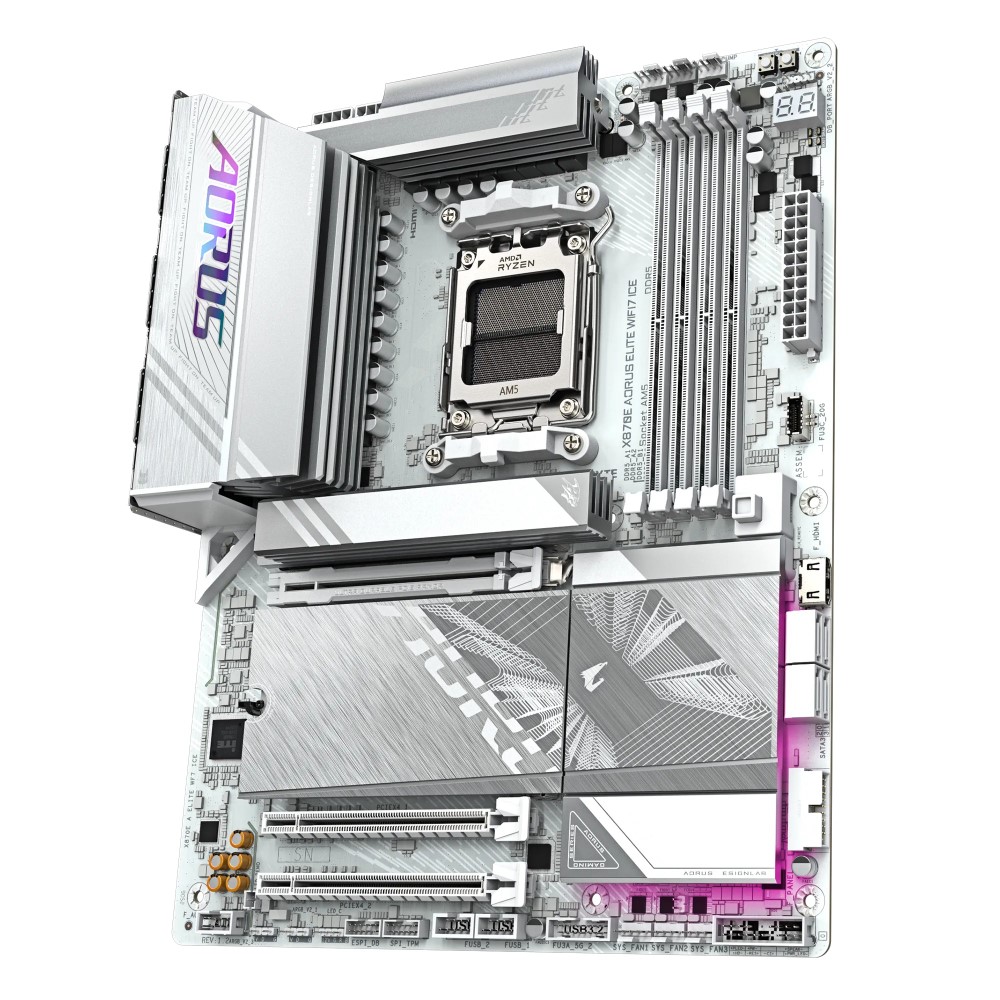

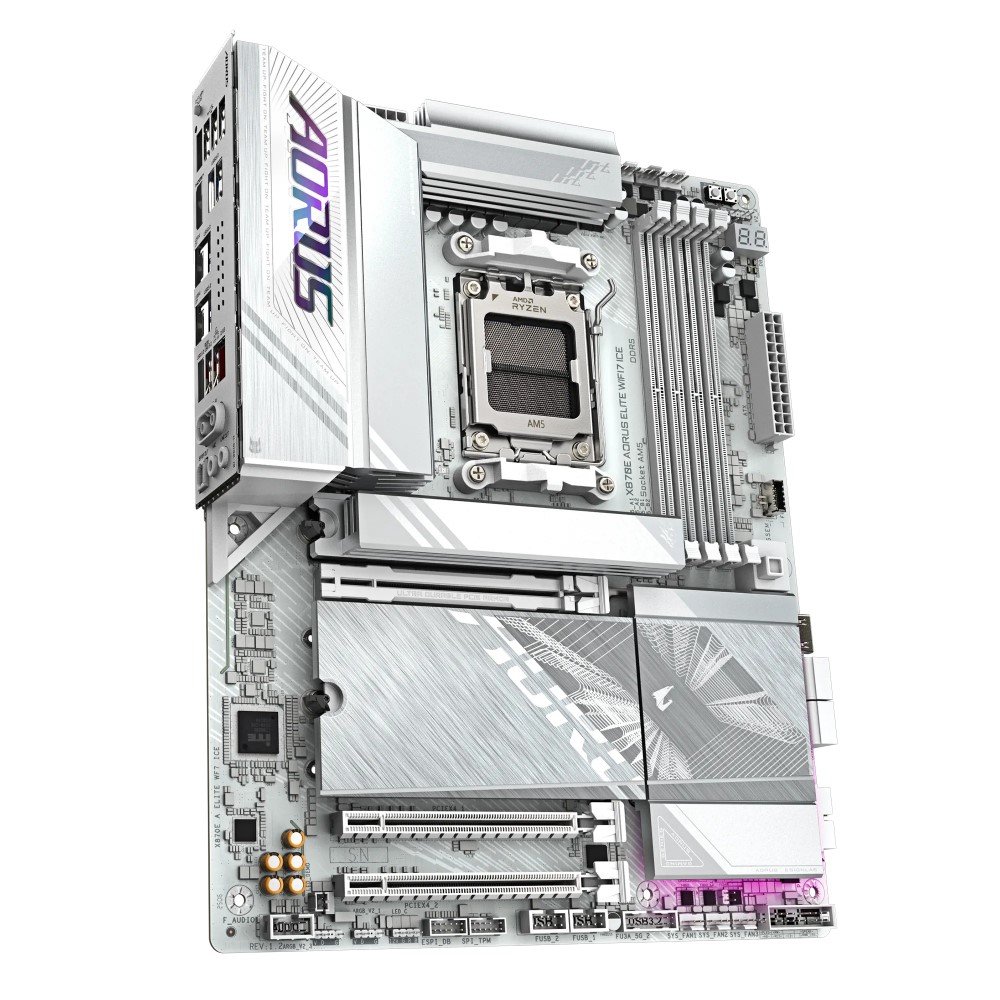

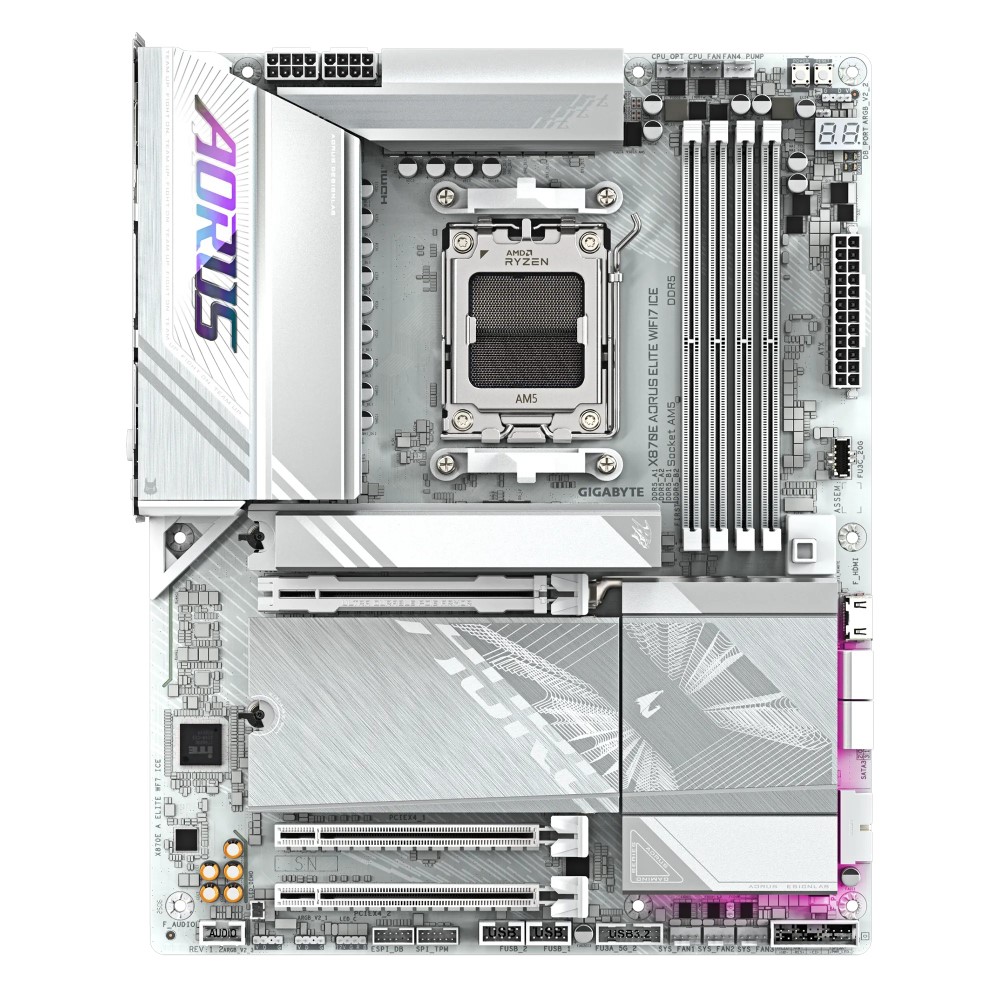

Gigabyte X870E Aorus Elite WIFI7 ICE AM5 ATX Motherboard
Rs. 125,000
<ul><li>AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors</li><li>Digital twin 16+2+2 phases VRM solution</li><li>Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support</li><li>WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation</li><li>EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design</li><li>EZ-Latch Click：M.2 heatsinks with screwless design</li><li>Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup</li><li>Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4</li><li>Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L</li><li>Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna</li><li>Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI</li><li>Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors</li><li>Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability</li><li>PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
Gigabyte X870E Aorus Elite WIFI7 ICE AM5 ATX Motherboard Price in Pakistan
| CPU | AMD Socket AM5, support for: |
| - AMD Ryzen™ 9000 Series Processors | |
| - AMD Ryzen™ 8000 Series Processors | |
| - AMD Ryzen™ 7000 Series Processors | |
| Visit GIGABYTE's website for the latest CPU support list. | |
| Chipset | AMD X870E |
| Memory | - DDR5: 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC) /6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC) /5200/4800/4400 MT/s |
| - 4× DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) | |
| - Dual Channel Architecture | |
| - Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| - Supports AMD EXPO™ and XMP profiles | |
| Onboard Graphics | Integrated AMD Radeon™ Graphics |
| + ASMedia USB4® Controller: | |
| - 2× USB4® Type-C® ports (DisplayPort video output, up to 3840×2160 @ 240 Hz) | |
| - DisplayPort 1.4, HDR | |
| Integrated Radeon™ Graphics: | |
| - 1× HDMI 2.1 (4096×2160 @ 60 Hz, HDCP 2.3, HDR) | |
| - 1× Front HDMI 1.4 (1920×1080 @ 30 Hz) | |
| - Supports up to Quad-Display | |
| Audio | Realtek® ALC1220 CODEC |
| - DSD audio (rear line-out) | |
| - High Definition Audio 2/4/5.1/7.1-channel | |
| - Configurable via audio software | |
| - Supports S/PDIF Out | |
| LAN | Realtek® 2.5 GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Realtek® Wi-Fi 7 (RTL8922AE) |
| - Wi-Fi a/b/g/n/ac/ax (2.4 / 5 / 6 GHz) | |
| - Bluetooth 5.4 | |
| - 11be 160 MHz support | |
| Wi-Fi 7 requires Windows 11 SV3; not supported on Windows 10 | |
| Expansion Slots | - 1× PCIe x16 (PCIEX16, CPU) |
| • Ryzen 9000/7000 → PCIe 5.0 x16 | |
| • Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 | |
| • Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 | |
| - 1× PCIe x16 (PCIEX4_1, Chipset, PCIe 4.0 x4) | |
| - 1× PCIe x16 (PCIEX4_2, Chipset, PCIe 3.0 x4) | |
| M2B_CPU and M2C_CPU share bandwidth with PCIEX16; use only one GPU in PCIEX16 slot. | |
| Storage Interface | - 1× M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (type 25110/22110/2580/2280) |
| - 2× M.2 (M2B_CPU, M2C_CPU): PCIe 5.0 x4/x2 (type 22110/2280) | |
| • Disabled on Ryzen 8000 Phoenix CPUs | |
| - 1× M.2 (M2D_SB): PCIe 4.0 x4/x2 (type 22110/2280) | |
| - 4× SATA 6 Gb/s ports | |
| - NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only) | |
| - SATA RAID 0/1/10 | |
| USB Ports | CPU + ASMedia Controller: |
| - 2× USB4® Type-C® (rear) | |
| CPU: | |
| - 1× USB 3.2 Gen 1 (rear) | |
| Chipset: | |
| - 1× USB 3.2 Gen 2x2 Type-C® (internal) | |
| - 2× USB 3.2 Gen 2 Type-A (red, rear) | |
| - 7× USB 3.2 Gen 1 (3 rear, 4 internal) | |
| - 8× USB 2.0/1.1 (4 rear, 4 internal) | |
| Internal I/O Connectors | - 24-pin ATX power |
| - 2× 8-pin CPU 12 V | |
| - 1× CPU fan | |
| - 1× CPU fan/pump | |
| - 3× System fan | |
| - 1× System fan/pump | |
| - 3× ARGB Gen2 headers | |
| - 1× RGB header | |
| - 4× M.2 sockets | |
| - 4× SATA ports | |
| - Front panel, audio header | |
| - 1× USB Type-C (USB 3.2 Gen 2x2) | |
| - 2× USB 3.2 Gen 1 headers | |
| - 2× USB 2.0 headers | |
| - TPM header | |
| - 1× HDMI port | |
| - Power button, Reset button/jumper, Clear CMOS | |

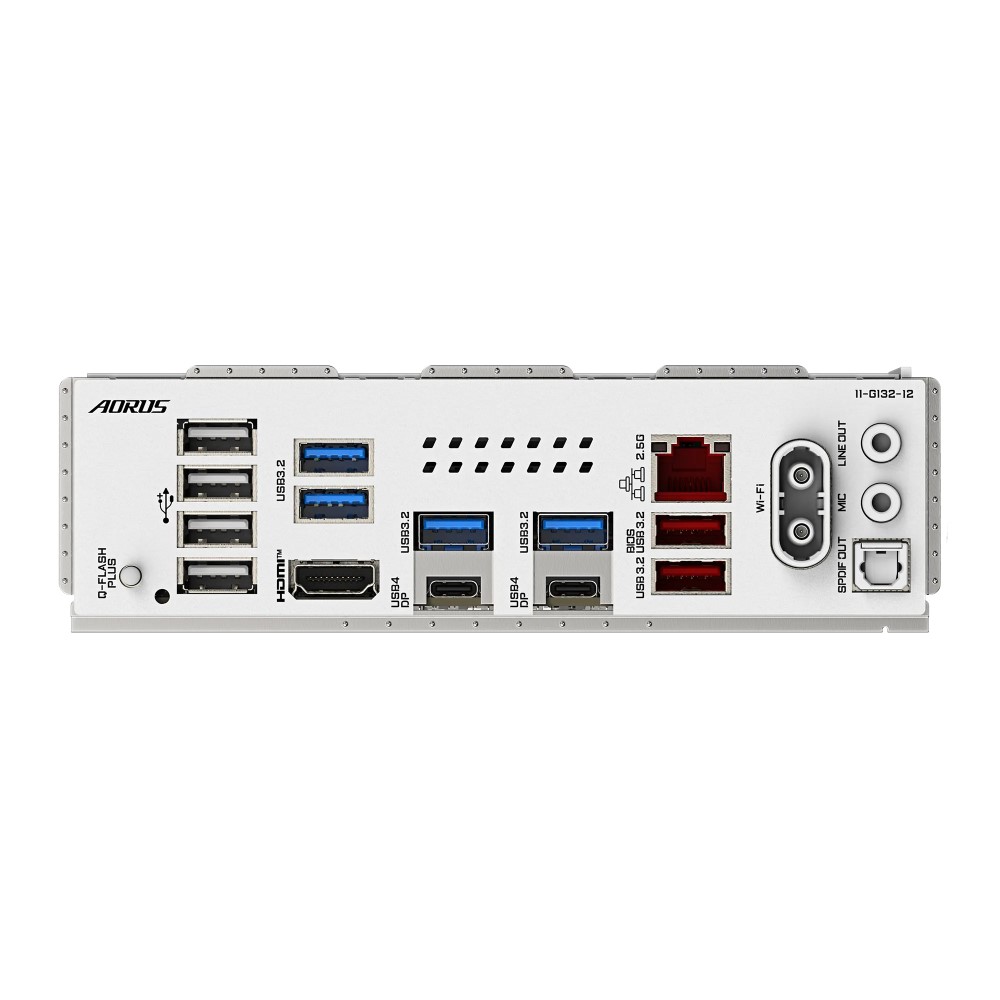

| Back Panel Connectors | - Q-Flash Plus button |
| - 4× USB 2.0 | |
| - 4× USB 3.2 Gen 1 | |
| - 1× HDMI port | |
| - 2× USB4® Type-C® (DisplayPort) | |
| - 1× RJ-45 LAN | |
| - 2× USB 3.2 Gen 2 (red) | |
| - 2× Wi-Fi antenna connectors | |
| - 2× Audio jacks | |
| - 1× Optical S/PDIF Out | |
| I/O Controller | iTE® Controller Chip |
| Hardware Monitoring | - Voltage, temperature, fan, and flow rate detection |
| - Fan fail warning | |
| - Fan/pump speed control | |
| BIOS | - 1× 256 Mbit flash |
| - AMI UEFI BIOS | |
| - PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 | |
| Unique Features | - GIGABYTE Control Center (GCC) support |
| - Q-Flash & Q-Flash Plus | |
| - Smart Backup | |
| Bundled Software | - Norton® Internet Security (OEM) |
| - LAN bandwidth management software | |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX – 30.5 cm × 24.4 cm |
