GIGABYTE X870E AORUS Elite X3D AMD AM5 LGA 1718 ATX Motherboard

Rs. 128,000

<ul class="a-unordered-list a-vertical a-spacing-mini"><li class="a-spacing-mini">AMD Socket AM5: Ready to support Ryzen 9000 / 8000 / 7000 Series Processors.</li><li class="a-spacing-mini">Enhanced Power Solutions: Digital Twin 16+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.</li><li class="a-spacing-mini">Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.</li><li class="a-spacing-mini">Boost Your Memory Performance: Compatible with DDR5 Memory and supports 4 DIMMs with AMD EXPO Memory Module Support.</li><li class="a-spacing-mini">Comprehensive Connectivity: 1x PCIe Gen5 x16 slot with reinforced PCIe UD armor, 2x PCIe 5.0 M.2 slots, 2x PCIe 4.0 M.2 slots, 2x USB4 Type-C with DP Alt, 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, 65W Front USB-C, Sensor Panel Link (HDMI) for onboard video port for hassle-free in-chassis panel setup.</li></ul>

100% Genuine

Cash on Delivery

Easy Returns

GIGABYTE X870E AORUS Elite X3D AMD AM5 LGA 1718 ATX Motherboard Price in Pakistan

Model
Brand	GIGABYTE
Model	X870E AORUS ELITE X3D

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Up to DDR5 9000(O.C)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Devices
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	BLUETOOTH 5.4

Rear Panel Ports

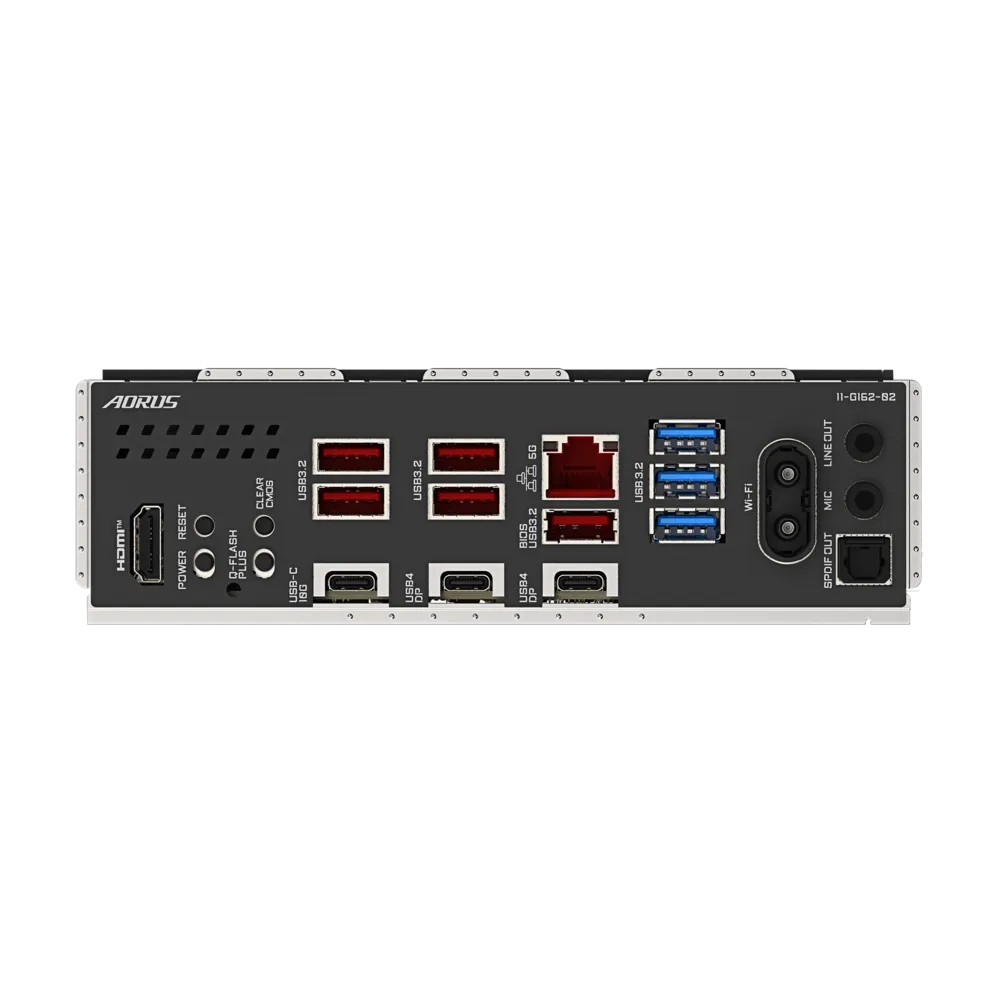

Back I/O Ports	1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Software Feature
BIOS Feature	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
