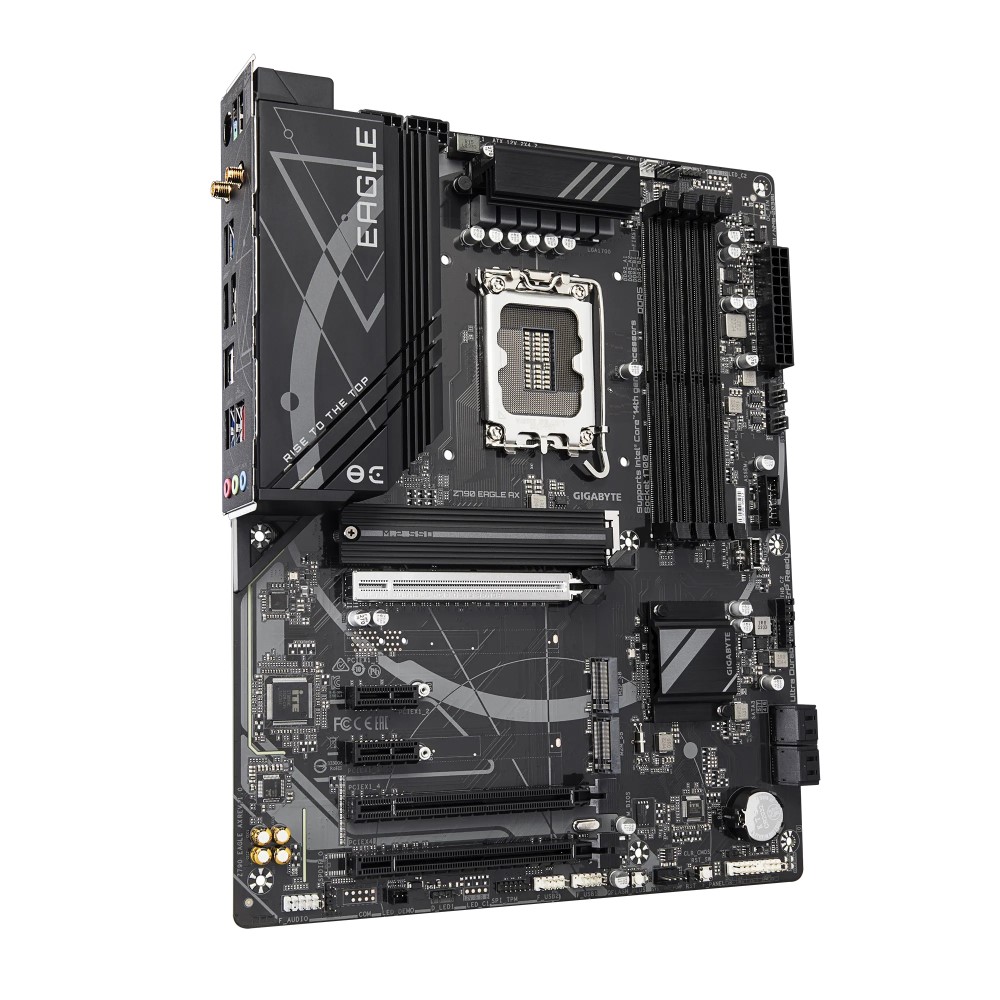

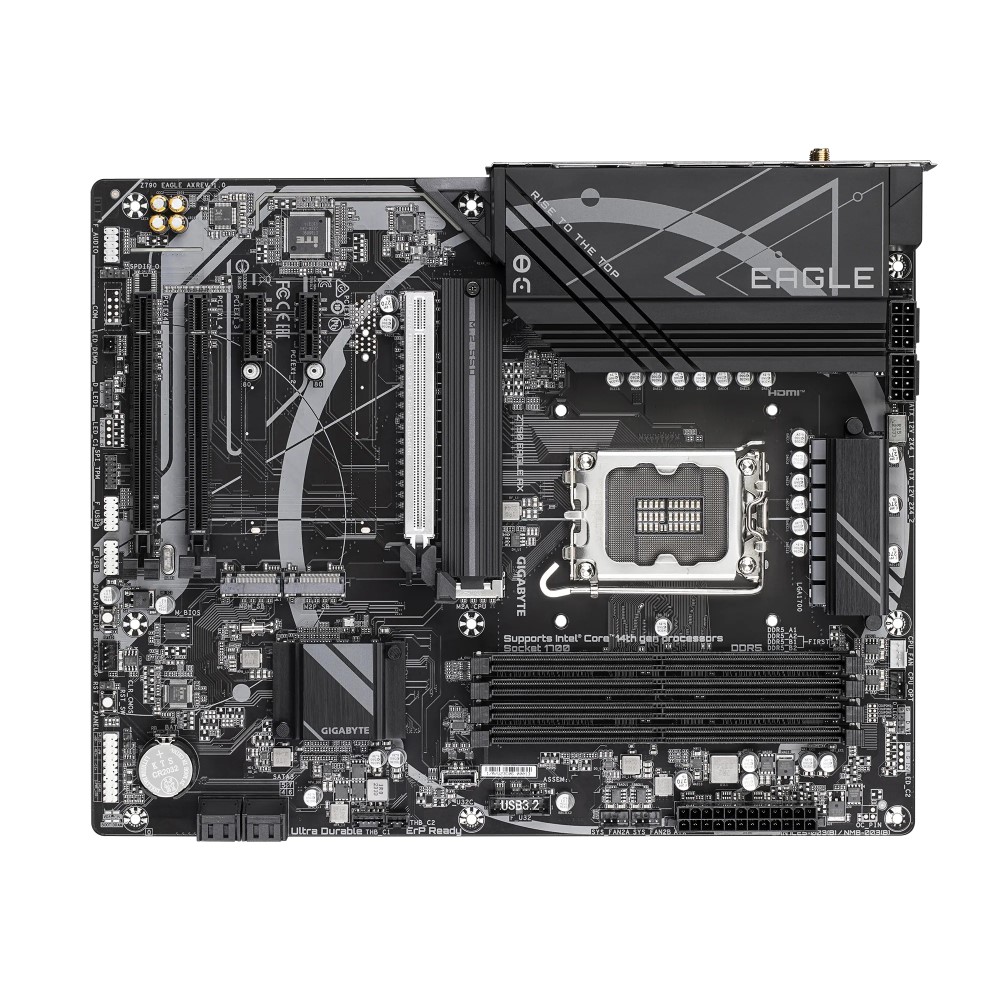

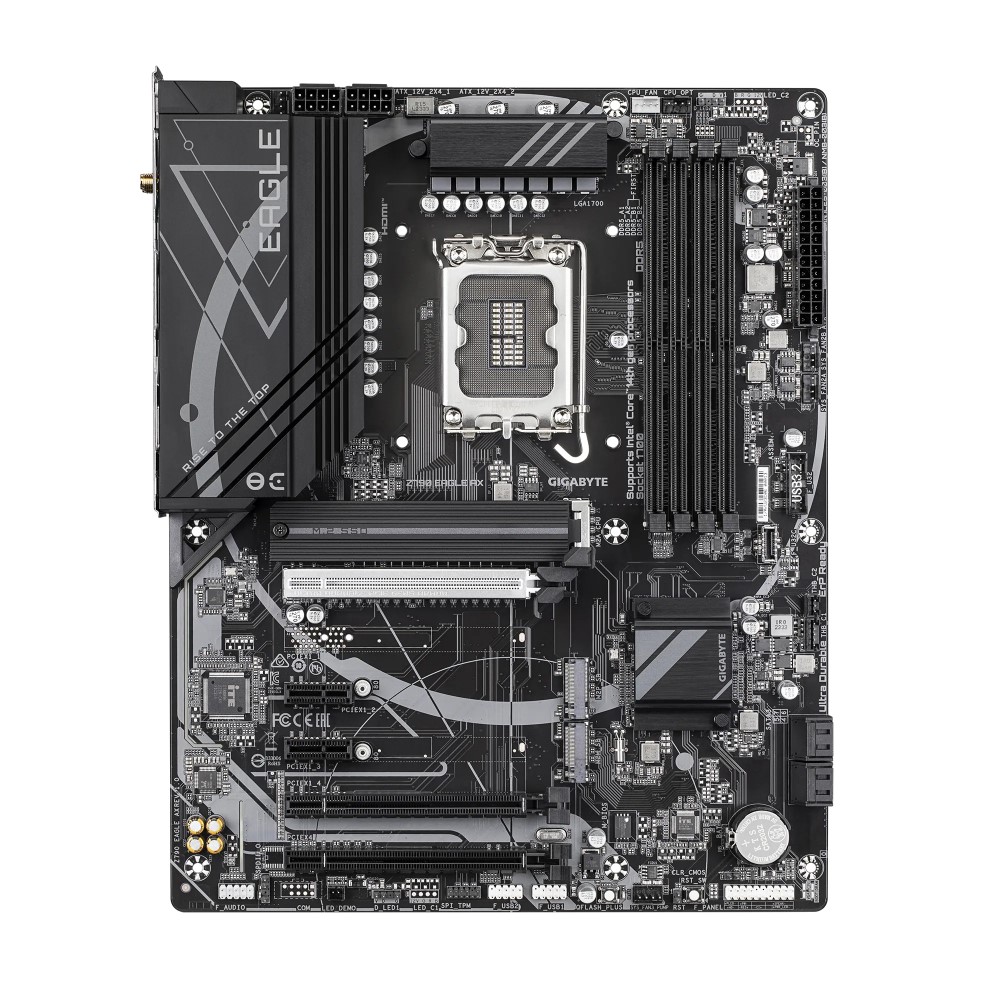

Gigabyte Z790 Eagle AX WIFI DDR5 ATX LGA1700 Gaming Motherboard

Rs. 73,999

<div id="divProductDesc" class="details-description"><ul><li>Supports Intel® Core™ 14th/ 13th /12th processors</li><li>Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution</li><li>Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support</li><li>Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors</li><li>Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance</li><li>EZ-Latch：PCIe 5.0x16 Slot with Quick Release Design</li><li>Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax</li><li>Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s</li><li>Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li><li>Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card</li>* 6+6 phases parallel power design</ul></div>

100% Genuine

Cash on Delivery

Easy Returns

Gigabyte Z790 Eagle AX WIFI DDR5 ATX LGA1700 Gaming Motherboard Price in Pakistan

CPU	Socket: LGA1700
	Support for:
	• 14th / 13th / 12th Gen Intel® Core™ Processors
	• Pentium® Gold and Celeron® Processors
	Note: L3 cache varies with CPU
	(Refer to “CPU Support List” for more information)
Chipset	Intel® Z790 Express Chipset
Memory	For 14th & 13th Gen Core™ i9/i7:
	DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 4800 / 4400 MT/s
	For 13th Gen i5/i3 & 12th Gen CPUs:
	DDR5 4800 / 4400 MT/s
	Slots: 4 × DDR5 DIMM sockets (up to 256 GB total, 64 GB per DIMM)
	Dual channel architecture
	Supports ECC/Non-ECC Un-buffered DIMM (ECC operates in non-ECC mode)
	Supports Intel® XMP profiles
Onboard Graphics	Integrated Intel® HD Graphics
	• 1 × HDMI 2.1 port: Max 4096×2160@60Hz, HDCP 2.3
	• 1 × DisplayPort 1.2: Max 4096×2304@60Hz, HDCP 2.3
Audio	Realtek® Audio CODEC
	• High Definition Audio
	• 2/4/5.1/7.1-channel configuration via software
	• Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication	PCB rev. 1.0: Intel® Wi-Fi 6E AX211
	• Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz)
	• Bluetooth 5.3
	• 160MHz bandwidth
	PCB rev. 1.1: Realtek® Wi-Fi 6E RTL8852CE
	• Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz)
	• Bluetooth 5.3
	• 160MHz bandwidth
Expansion Slots	From CPU:
	• 1 × PCIe x16 (PCIe 5.0 x16) — supports GPU/NVMe SSD
	From Chipset:
	• 1 × PCIe x16 (PCIe 4.0 x4)
	• 1 × PCIe x16 (PCIe 3.0 x1)
	• 2 × PCIe x1 (PCIe 3.0 x1)
Storage Interface	From CPU:
	• 1 × M.2 (M2A_CPU, type 22110/2280, PCIe 4.0 x4/x2)
	From Chipset:
	• 1 × M.2 (M2P_SB, type 2280, PCIe 4.0 x4/x2)
	• 1 × M.2 (M2M_SB, type 2280, SATA & PCIe 4.0 x4/x2)
	• 4 × SATA 6Gb/s ports
	RAID Support: RAID 0/1/5/10 for NVMe & SATA devices
USB Ports	Chipset:
	• 1 × USB Type-C® (rear, USB 3.2 Gen 2)
	• 1 × USB Type-C® (internal header, USB 3.2 Gen 1)
	• 1 × USB 3.2 Gen 2 Type-A (rear, red)
	• 6 × USB 3.2 Gen 1 (4 rear, 2 internal)
	• 2 × USB 2.0 (rear)
	Chipset + Hub:
	• 4 × USB 2.0 (internal headers)
Internal I/O Connectors	• 1 × 24-pin ATX main power
	• 2 × 8-pin ATX 12V
	• 1 × CPU fan header
	• 1 × CPU fan/water pump header
	• 3 × system fan headers
	• 1 × system fan/water pump header
	• 2 × ARGB LED headers
	• 3 × M.2 sockets
	• 4 × SATA 6Gb/s
	• 1 × front panel
	• 1 × front audio
	• 1 × S/PDIF Out header
	• 1 × USB Type-C® (USB 3.2 Gen 1)
	• 1 × USB 3.2 Gen 1 header
	• 2 × USB 2.0 headers
	• 2 × Thunderbolt™ add-in card connectors
	• 1 × TPM header
	• 1 × reset button
	• 1 × Q-Flash Plus button
	• 1 × reset jumper
	• 1 × Clear CMOS jumper

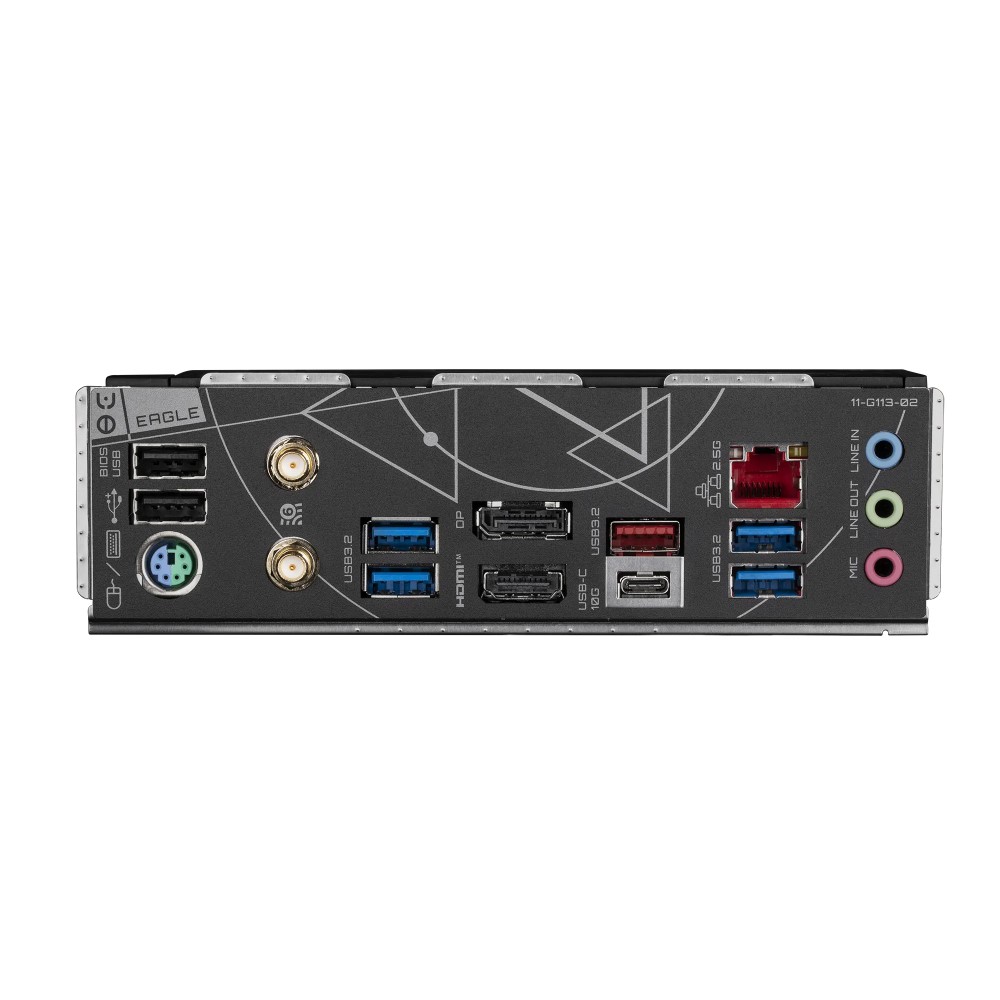

Back Panel Connectors	• 1 × PS/2 keyboard/mouse
	• 1 × USB Type-C® (USB 3.2 Gen 2)
	• 1 × USB 3.2 Gen 2 Type-A (red)
	• 4 × USB 3.2 Gen 1
	• 2 × USB 2.0
	• 2 × SMA Wi-Fi antenna connectors (1T1R)
	• 1 × HDMI
	• 1 × DisplayPort
	• 1 × RJ-45 LAN
	• 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	• Voltage, temperature, fan speed, and water flow detection
	• Fan fail warning
	• Fan/pump speed control (depends on hardware)
BIOS	• 1 × 256 Mbit flash
	• AMI UEFI BIOS
	• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	• GIGABYTE Control Center (GCC)
	• Q-Flash / Q-Flash Plus
	• Smart Backup
Bundled Software	• Norton® Internet Security (OEM)
Bundled Software	• LAN bandwidth management software
Operating System	Windows 11 64-bit / Windows 10 64-bit
Form Factor	ATX (30.5 cm × 24.4 cm)
