Motherboard / Chipset
In Stock
MSI MOTHERBOARD : X870E GAMING PLUS WIFI DDR5
Rs. 98,999
Rs. 104,999
-6% OFF
<ul class=""><li>Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors</li><li>Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)</li><li>Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material</li><li>Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience</li><li>EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna</li><li>Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2</li><li>Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission</li><li>Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience</li></ul>
100% Genuine
Cash on Delivery
Easy Returns
MSI X870E GAMING PLUS WIFI AM5 AMD X870E SATA 6GB/S 5G LAN DDR5 M.2 Wi-Fi 7 ATX Motherboard Price in Pakistan
Chipset | AMD X870E |
| Socket | AM5 |
| CPU Support | Ryzen™ 9000 / 8000 / 7000 Series |
| Operating System | Windows® 11 (64-bit) |
| Memory | |
Feature | Details |
| Memory Slots | 4 × DDR5 UDIMM |
| Max Capacity | 256 GB |
| Memory Speed (OC) | DDR5 8200 – 5600 MT/s |
| Memory Speed (JEDEC) | DDR5 5600 – 4800 MT/s |
| Channel Architecture | Dual Channel |
| ECC | Non-ECC, Un-buffered |
| Overclocking | AMD EXPO™, Memory OC |
| Special Support | CUDIMM (Clock Driver bypass) |
| Ryzen™ 9000 Memory Limits | |
Configuration | Max Speed |
| 1DPC 1R | 8200+ MT/s |
| 1DPC 2R | 6400+ MT/s |
| 2DPC 1R | 6400+ MT/s |
| 2DPC 2R | 6000+ MT/s |
| Graphics Output | |
Port | Specification |
| HDMI | HDMI 2.1 – 4K @ 60Hz |
| USB-C DisplayPort | DP 1.4 (via USB4) – 4K @ 120Hz |
| iGPU Requirement | CPU with integrated graphics |
| Expansion Slots | |
Slot | Details |
| PCI_E1 | PCIe 5.0 x16 (CPU) |
| PCI_E2 | PCIe 3.0 x1 (Chipset) |
| PCI_E3 | PCIe 4.0 x4 (Chipset) |
| PCI_E4 | PCIe 3.0 x1 (Chipset) |
| PCI_E1 CPU-Dependent Speeds | |
CPU Series | PCIe Speed |
| Ryzen™ 9000 / 7000 | PCIe 5.0 x16 |
| Ryzen™ 8700 / 8600 / 8400 | PCIe 4.0 x8 |
| Ryzen™ 8500 / 8300 | PCIe 4.0 x4 |
| Storage | |
Type | Details |
| M.2 Slots | 3 × M.2 |
| M.2_1 | PCIe 5.0 x4 (CPU) |
| M.2_2 | PCIe 4.0 x4 (Chipset) |
| M.2_3 | PCIe 4.0 x4 (Chipset) |
| Supported Sizes | 22110 / 2280 / 2260 |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | |
Storage Type | RAID Levels |
| SATA | RAID 0 / 1 / 10 |
| NVMe (M.2) | RAID 0 / 1 / 5 |
| RAID 5 | Ryzen™ 9000 only |
| USB Connectivity | |
USB Type | Count |
| USB 2.0 (Rear) | 4 |
| USB 2.0 (Front) | 6 |
| USB 5Gbps Type-A (Rear) | 2 |
| USB 5Gbps Type-A (Front) | 4 |
| USB 10Gbps Type-A (Rear) | 2 |
| USB 10Gbps Type-C (Front) | 1 |
| USB 20Gbps Type-C (Rear) | 1 |
| USB 40Gbps Type-C (Rear) | 1 |
| Networking | |
Feature | Details |
| Wired LAN | Realtek® 8126VB 5G |
| Wireless | Wi-Fi 7 |
| Wi-Fi Bands | 2.4 / 5 / 6 GHz |
| Max Speed | Up to 5.8 Gbps |
| Bluetooth | Bluetooth® 5.4 |
| Audio | |
Feature | Details |
| Codec | Realtek® ALC897 |
| Channels | 7.1 HD Audio |
| Internal I/O Connectors | |
Category | Count |
| ATX Power | 1 |
| CPU Power | 2 |
| PCIe Power (8-pin) | 1 |
| CPU Fan | 1 |
| Pump / Combo Fan | 1 |
| System Fans | 6 |
| RGB (ARGB Gen2) | 3 |
| RGB (12V) | 1 |
| TPM Header | 1 (TPM 2.0) |
| USB 2.0 Headers | 6 ports |
| USB 5Gbps Headers | 4 ports |
| USB-C 10Gbps | 1 |
| Front Panel | 2 |
| Front Audio | 1 |
| LED & Debug | |
Feature | Count |
| EZ Debug LED | 4 |
| EZ Memory LED | 1 |

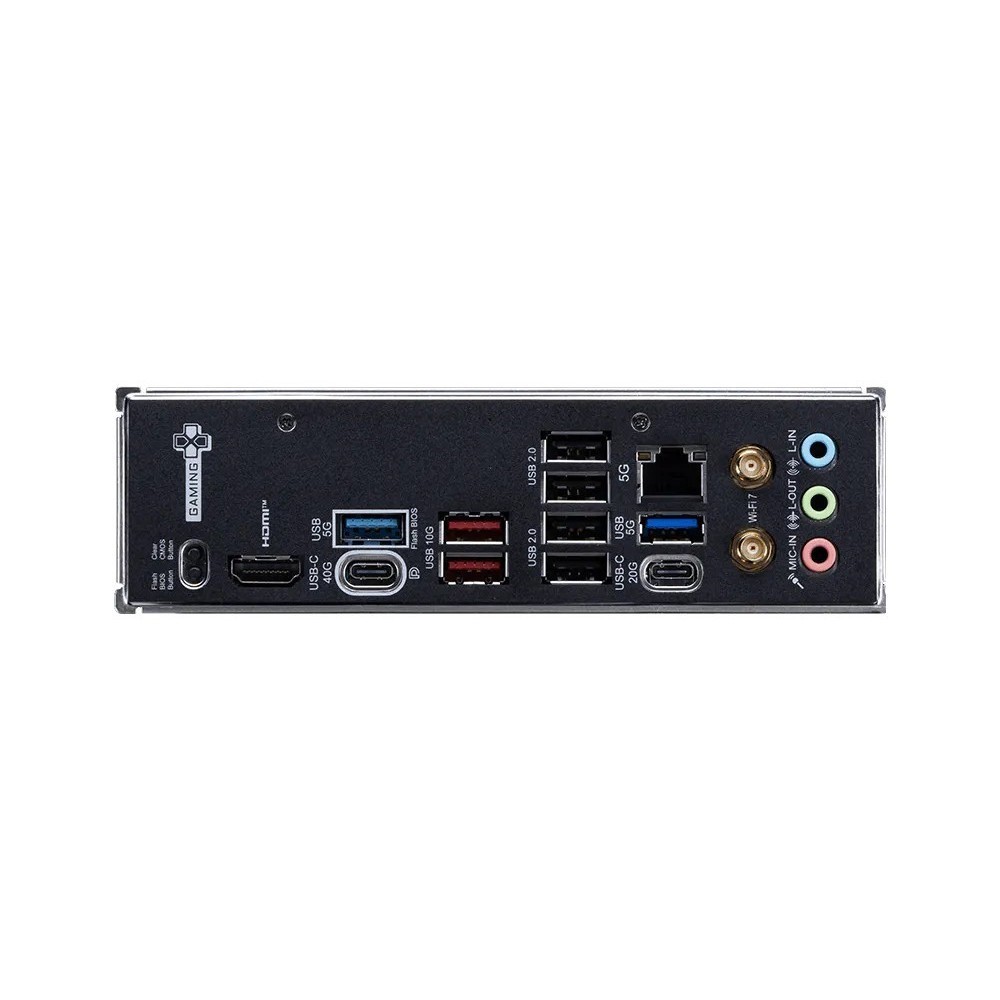

| Back Panel I/O | |
Port | Included |
| Clear CMOS Button | ✔ |
| Flash BIOS Button | ✔ |
| HDMI | ✔ |
| USB 40Gbps Type-C | ✔ |
| USB 20Gbps Type-C | ✔ |
| USB 10Gbps Type-A | ✔ |
| USB 5Gbps Type-A | ✔ |
| USB 2.0 | ✔ |
| 5G LAN | ✔ |
| Wi-Fi / Bluetooth | ✔ |
| Audio Jacks | ✔ |
