ASUS TUF GAMING B550M-PLUS WIFI II AM4 AMD B550 Micro ATX AMD Motherboard Price in Pakistan
Model
| Brand |
ASUS |
| Model |
TUF GAMING B550M-PLUS WIFI II |
| Part Number |
90MB19Y0-MVAAY0 |
Supported CPU
| CPU Socket Type |
AM4 |
| CPU Type |
Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors*
* Refer to www.asus.com for CPU support list. |
Chipsets
| Chipset |
AMD B550 |
Memory
| Number of Memory Slots |
4x288pin (DDR4) |
| Memory Standard |
DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported |
128GB |
| Channel Supported |
Dual Channel |
| ECC Supported |
ECC Memory (ECC mode) support varies by CPU |
| Buffer Supported |
Un-buffered |
Expansion Slots
| PCI Express 4.0 x16 |
1 x PCI Express 4.0 x16*
* Actual support may vary by CPU. |
| PCI Express 3.0 x16 |
1 x PCI Express 3.0 x16*
* Running at x4 mode |
| PCI Express x1 |
1 x PCIe 3.0 x1*
* PCIEX16_2 will run x2 mode when PCIEX1 is used. |
Storage Devices
| Serial ATA (SATA) |
4 x SATA 6Gb/s |
| M.2 |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
| SATA RAID |
0/1/10 |
Onboard Video
| Onboard Video Chipset |
Supported only by CPU with integrated graphic |
Onboard Audio
| Audio Chipset |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channels |
7.1 Channels |
Onboard LAN
| LAN Chipset |
Realtek 2.5Gb Ethernet |
| Max LAN Speed |
2.5Gbps |
| Wireless LAN |
Wi-Fi 6
802.11 a/b/g/n/ac/ax |
| Bluetooth |
Bluetooth 5.2 |

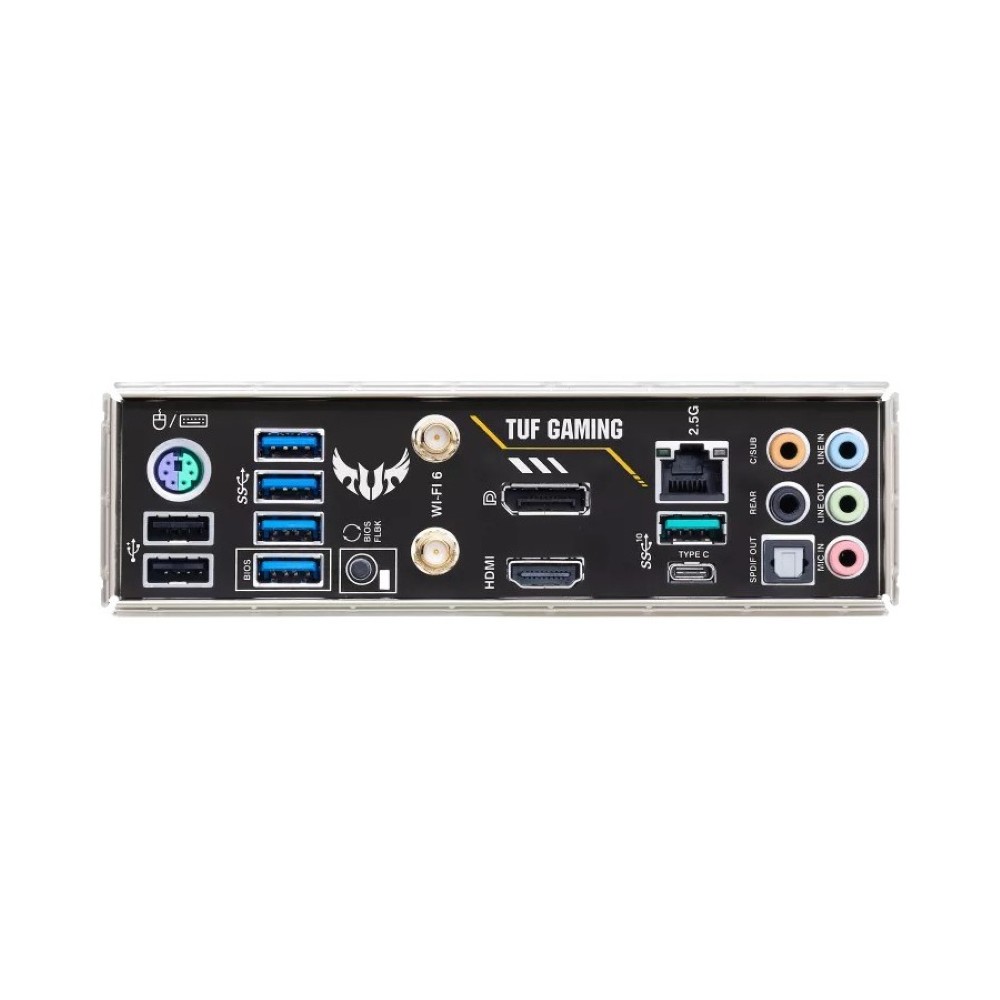

Rear Panel Ports
| Back I/O Ports |
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors
| Onboard USB |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Other Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header |
Physical Spec
| Form Factor |
Micro ATX |
| LED Lighting |
RGB |
| Dimensions (W x L) |
9.6" x 9.6" |
| Power Pin |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
Software Feature
| Windows 11 |
Ready |
Features
| Features |
Special Features:
ASUS TUF PROTECTION
- DIGI+ VRM (Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 header
Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 11 ready
Windows 10 64-bit |
Packaging
| Package Contents |
Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide |
