Msi Motherboard:Mpg Z790 Edge Ti Max

Rs. 95,000

<ul>
<li>BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information</li>
<li>Supports Intel Core Next-gen / 13th Gen / 12th Gen, Pentium Gold and Celeron processors for LGA 1700 socket</li>
<li>Supports DDR5 Memory, up to 7800+(OC) MHz</li>
<li>Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2</li>
<li>Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost</li>
<li>Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience</li>
<li>2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection</li>
<li>AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience</li>
</ul>

100% Genuine

Cash on Delivery

Easy Returns

MSI MPG Z790 EDGE TI MAX WIFI LGA 1700(14th,13th,12th Gen) DDR5 Intel Z790 SATA 6Gb/s ATX Motherboard 2x PCI-E x16 slot Wi-Fi 7 Solution 2.5Gbps LAN Price in Pakistan

Best Seller Ranking	#40 in Intel Motherboards

Model
Brand	MSI
Model	MPG Z790 EDGE TI MAX WIFI

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express 4.0 x16	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
SATA 6Gb/s	8 x SATA 6Gb/s
M.2	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel 2.5Gbps LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Bluetooth	Yes

Rear Panel Ports

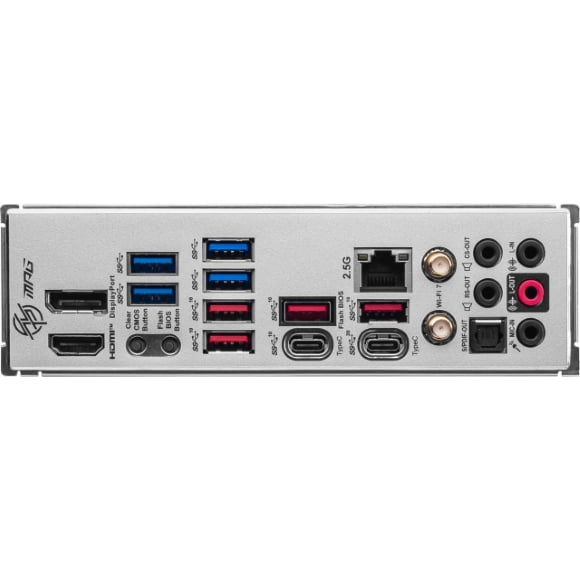

Back I/O Ports	1 x Display Port 4 x USB 3.2 Gen 1 5 Gbps (Type-A) 4 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x 2.5G LAN 5 x Audio Connectors 1 x HDMI 1 x Clear CMOS 1 x Flash BIOS 1 x USB 3.2 Gen 2 10Gbps (Type-C) 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 2 x Wi-Fi / Bluetooth Antenna Bracket 1 x Optical S/PDIF Out

Internal I/O Connectors
Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Other Connectors	1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3)

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR)

Windows Compatibility
Windows 11	Supported
