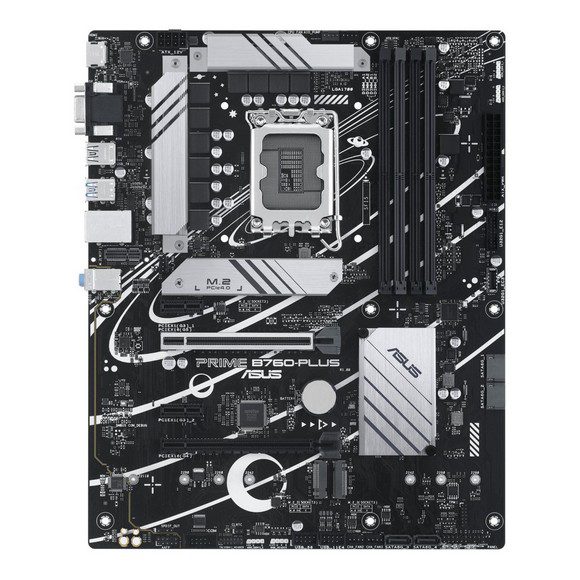

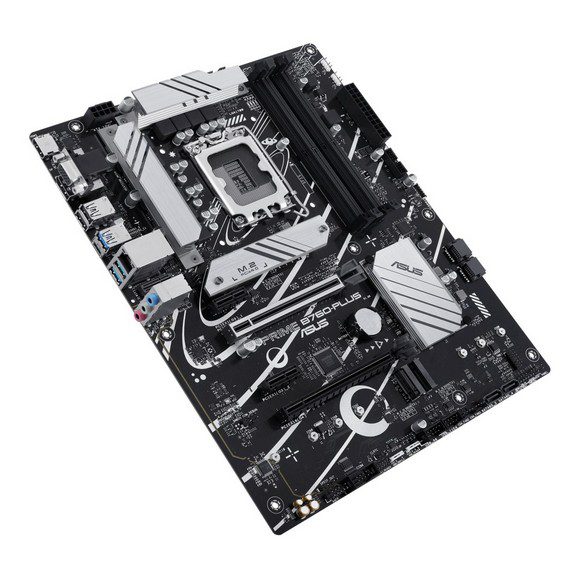

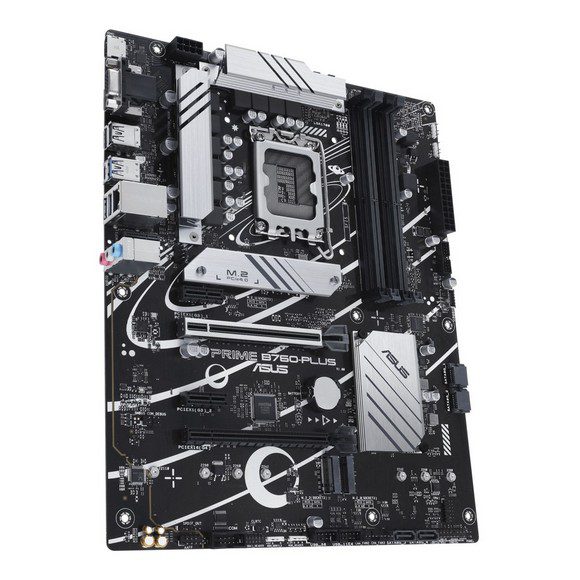

ASUS Prime B760-PLUS Intel® B760 13th and 12th Gen LGA 1700 ATX Motherboard (Used)

Rs. 35,000

<div class="KvSummary__productHeadiing__UPRDo KvSummary__themeWhite__21KI0">ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync</div>
<div class="KvSummary__productIntro__1WXF- KvSummary__themeWhite__21KI0">
<ul>
<li>Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors</li>
<li>Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support</li>
<li>Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+</li>
<li>Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II</li>
<li>Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware</li>
</ul>
</div>

100% Genuine

Cash on Delivery

Easy Returns

ASUS Prime B760-PLUS Intel® B760 13th and 12th Gen LGA 1700 ATX Motherboard (Used) Price in Pakistan

Model
Brand	ASUS
Series	Prime
Model	PRIME B760-PLUS
Part Number	90MB1EF0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express 3.0 x16	2 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Onboard Audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
Max LAN Speed	1 x Realtek 2.5Gb Ethernet

Rear Panel Ports

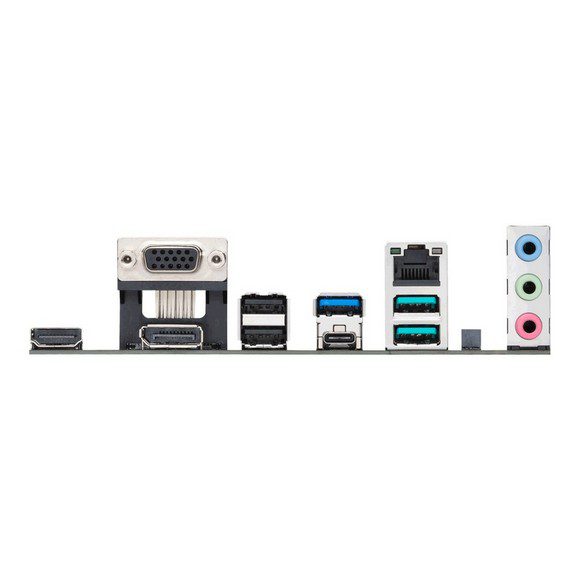

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks

Internal I/O Connectors
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Windows Compatibility
Windows 11	Windows® 11, Windows® 10 64-bit

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
