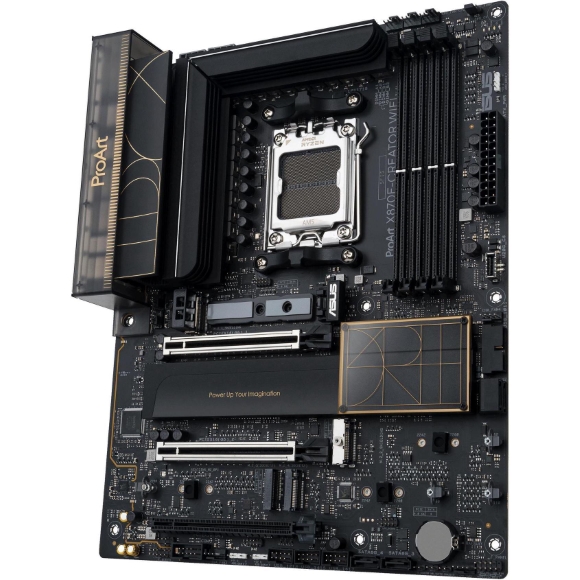

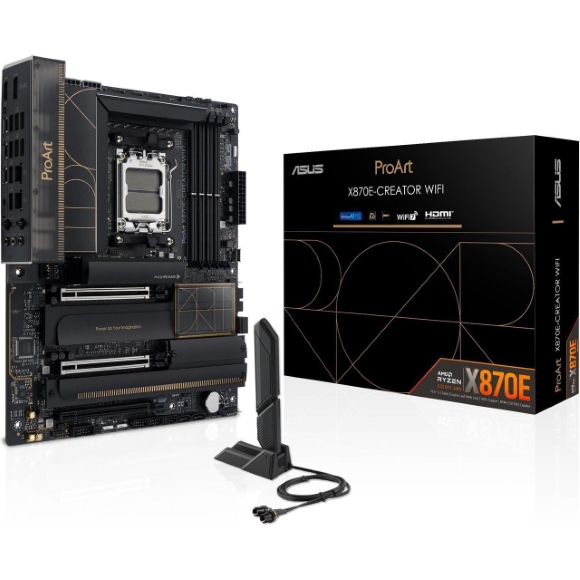

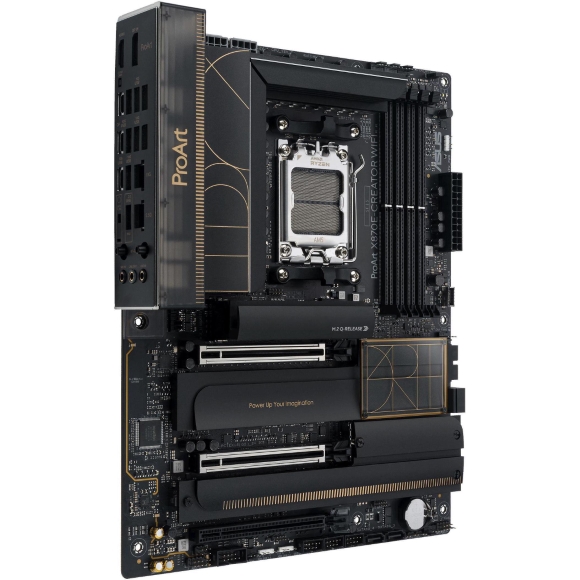

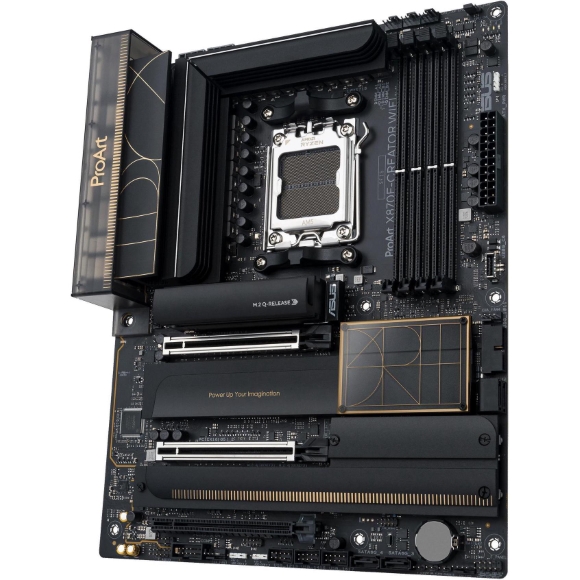

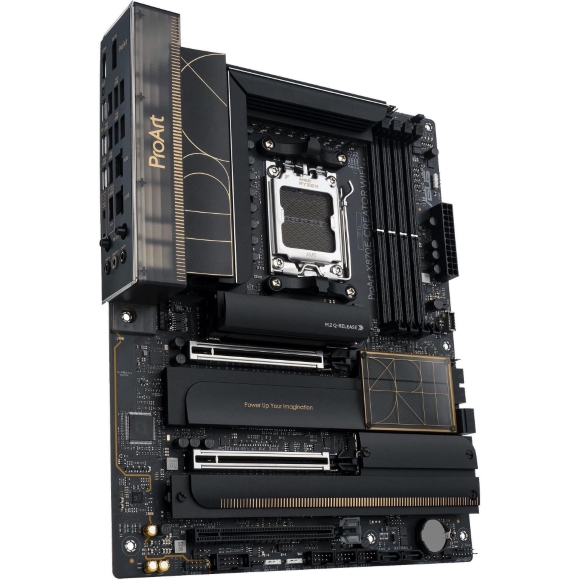

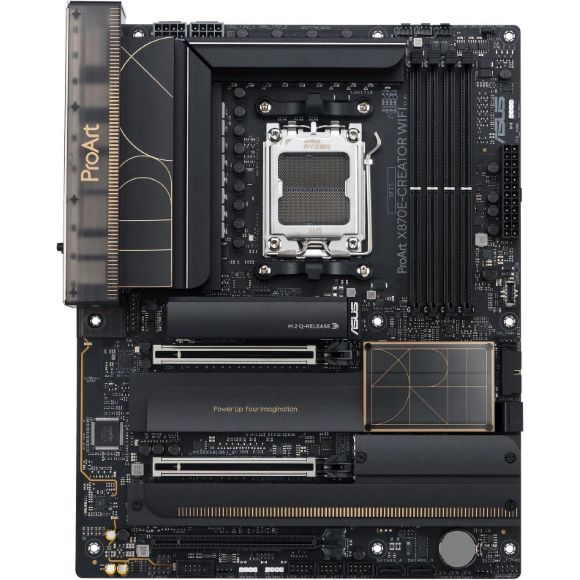

ASUS ProArt X870E-CREATOR WIFI AMD AM5 X870E ATX Motherboard

Rs. 192,500

<ul>
<li>Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications</li>
<li>AMD AM5 socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors</li>
<li>Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors</li>
<li>Future-proofed connectivity: Dual USB4® ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe® 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+</li>
<li>Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex</li>
<li>DIY-Friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, Q-Connector</li>
</ul>
<strong>Warranty: 1 Year</strong>

100% Genuine

Cash on Delivery

Easy Returns

ASUS ProArt X870E-CREATOR WIFI AMD AM5 X870E ATX Motherboard Price in Pakistan


Best Seller Ranking	#48 in AMD Motherboards

Model
Brand	ASUS
Model	ProArt X870E-CREATOR WIFI
Part Number	90MB1IG0-M0AAY0

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4400
Maximum Memory Supported	256GB
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Expansion Slots
PCI Express 5.0 x16	AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16	AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID	*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Onboard Audio
Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless LAN	Bluetooth 5.4
Bluetooth	Yes

Rear Panel Ports

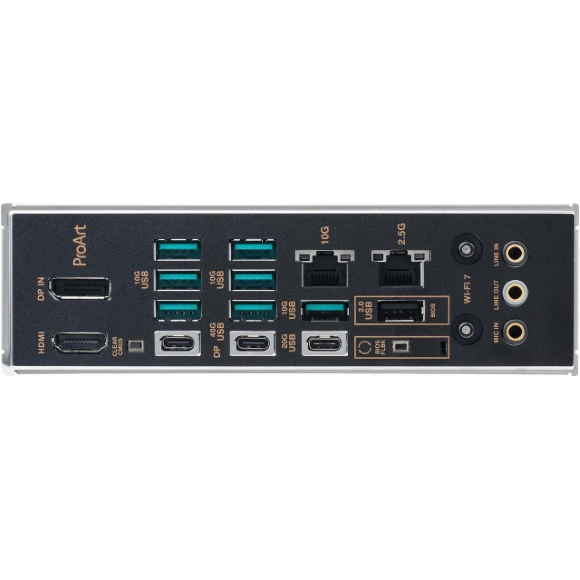

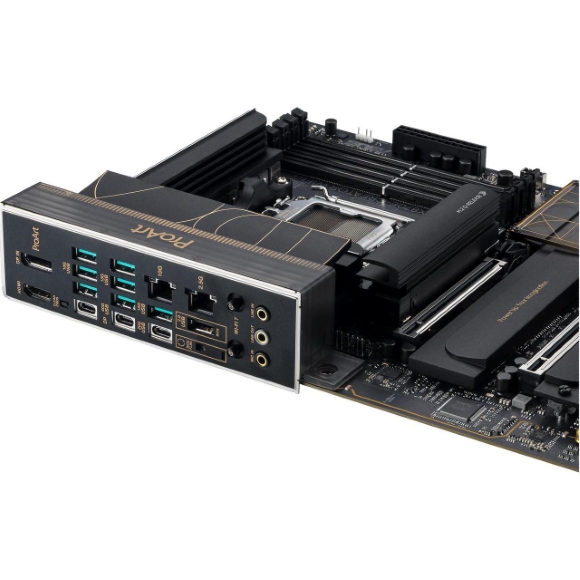

Back I/O Ports	2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector

Software Feature
BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0

Packaging
Package Contents	Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card 1 x User guide
